Delock Converter SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) with USB Type-C™ female > 1 x SATA / 1 x M.2 Key B / 1 x mSATA

DELOCK

62993

New

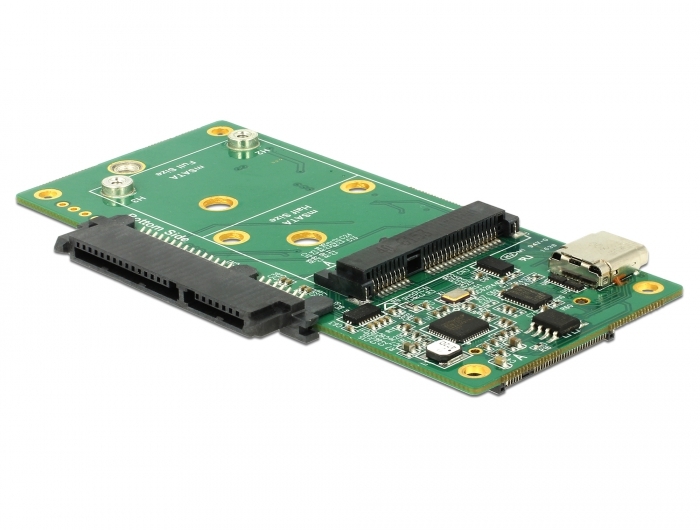

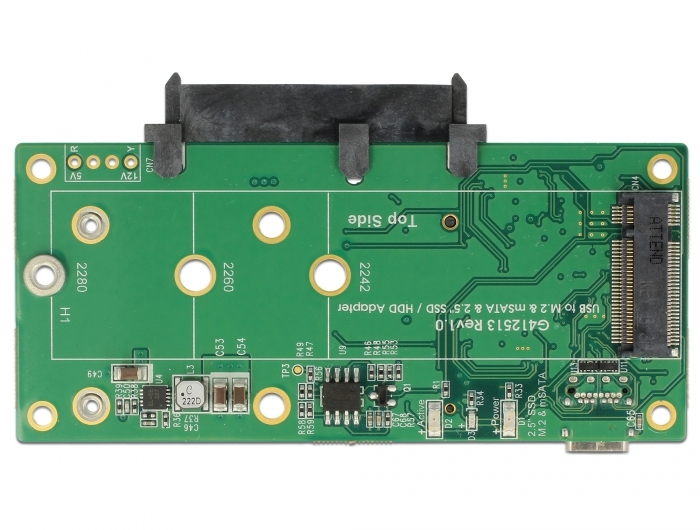

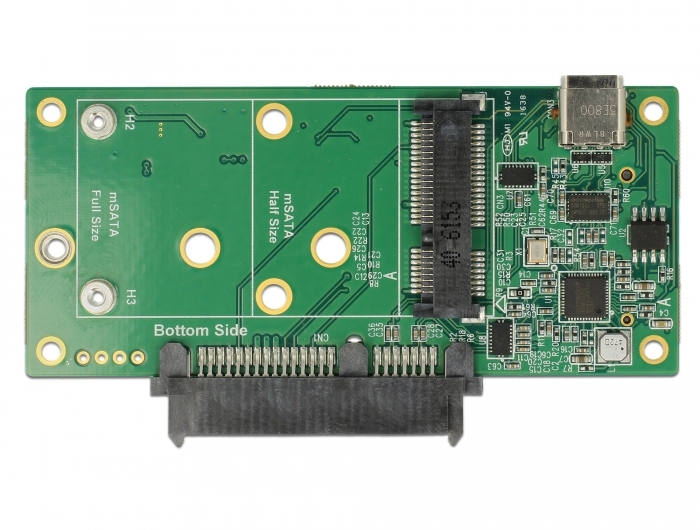

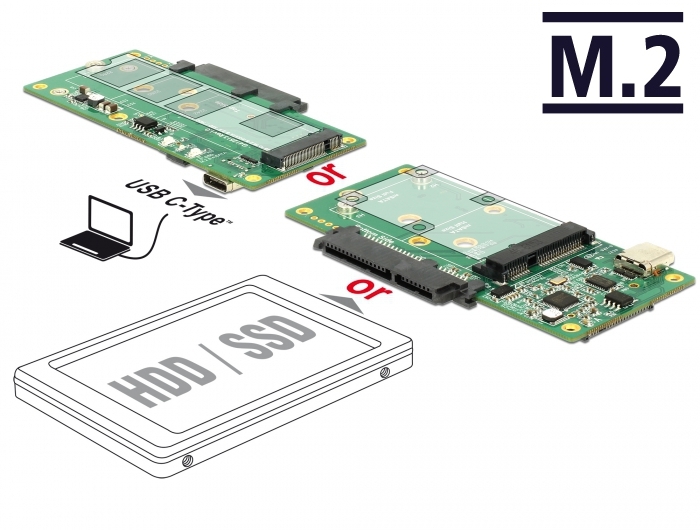

This converter by Delock enables the connection of a SATA SSD or HDD, an M.2 SATA SSD in 2280, 2260 and 2242 format or an mSATA SSD in half size or full size format. The converter offers three different connection possibilities for drives, but only one drive can be used at a time. The converter will be integrated into the system via the USB interface.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.4.x
• A free USB interface
Specification:
• Connectors:
  1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ female >
  1 x SATA 6 Gb/s 22 pin receptacle
  1 x 67 pin M.2 key B slot
  1 x mSATA slot (half size / full size)
  1 x 4 pin power connector
• Interface: SATA
• Chipset: Asmedia ASM1351
• Supports M.2 modules in format 2280, 2260 and 2242 with key B
  or key B+M based on SATA
• Maximum height of the components on the module: 1.35 mm,
  application of double-sided assembled modules supported
• Suitable for 2.5″ SATA HDD / SSD:
  support 3.3 V / 5 V HDD / SSD
• Supports SATA 1.5 Gb/s, SATA 3 Gb/s and SATA 6 Gb/s
• LED indicator
• Maximum output current: 3 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 90 x 40 x 8 mm
Package content:
• Converter
• Cable USB-C™ male to USB Type-A male, length ca. 40 cm
• Mounting material
• User manual
Data sheet:
http://www.delock.de/produkt/62993/pdf.html?sprache=en
