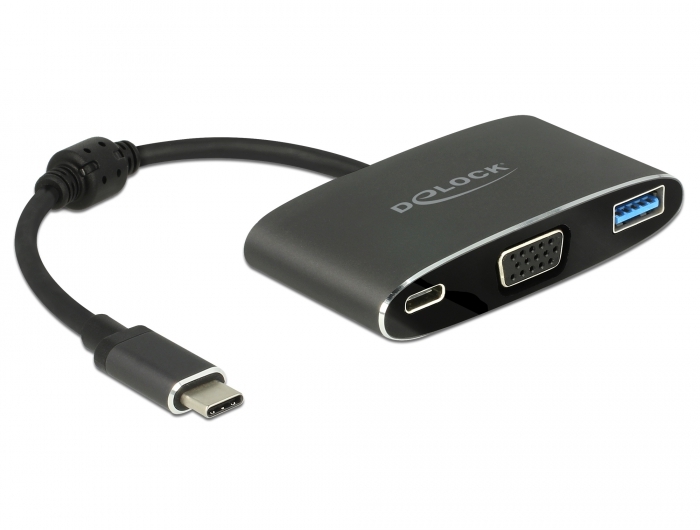

Delock Adapter USB Type-C™ male > VGA female (DP Alt Mode) + USB Type-A + USB Type-C™ PD

DELOCK

62992

New

This adapter by Delock is suitable for the connection of a VGA monitor to a computer with USB-C™ interface and Displayport alternate mode support. Thus, the adapter can be connected to different laptops like MacBook, Chromebook and similar. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface. Additional the adapter has a USB 3.1 Type-A port and a USB-C™ port. The USB-C™ port can be used for power supply of the output device or to transfer data in USB 3.1 Gen 1 speed. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Mac ex OS 10.12.5
• PC or laptop with a free USB Type-C™ port and Displayport alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port
Specification:

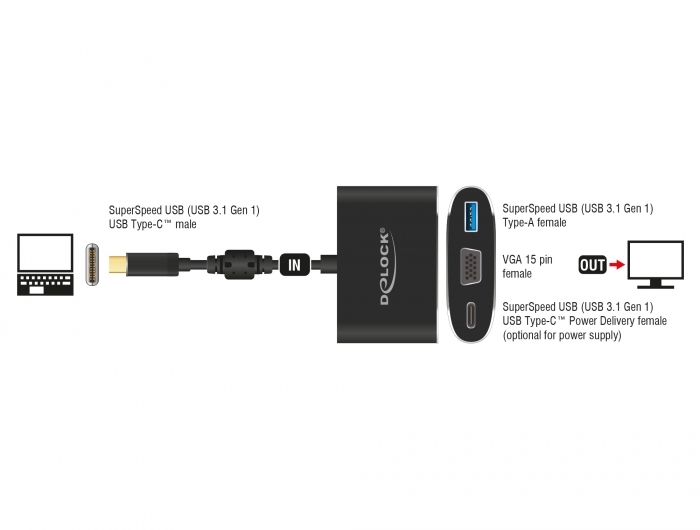

• Connectors:
  1 x SuperSpeed USB (USB 3.1 Gen 1) USB Type-C™ male >
  1 x VGA 15 pin female
  1 x SuperSpeed USB (USB 3.1 Gen 1) Type-A female
  1 x SuperSpeed USB (USB 3.1 Gen 1) USB Type-C™ Power Delivery female
  (optional for power supply)
• Chipset: VIA VL101 + VL813 + ITE IT6516
• Displayport 1.1a specification
• Resolution up to WUXGA 1920 x 1200 @ 60 Hz
  (depending on the system and the connected hardware)
• Transfer of analogue video signals
• USB bus powered
• Plug & Play
• Gold-plated connectors
• 1 x ferrite core
• Cable length without connectors: ca. 20 cm
• Colour: grey
Package content:
• USB-C™ to VGA Adapter + USB Type-A
Data sheet:
http://www.delock.de/produkt/62992/pdf.html?sprache=en
