Delock USB Type-C™ adapter for a VGA, HDMI, DVI or DisplayPort monitor

DELOCK

63959

New

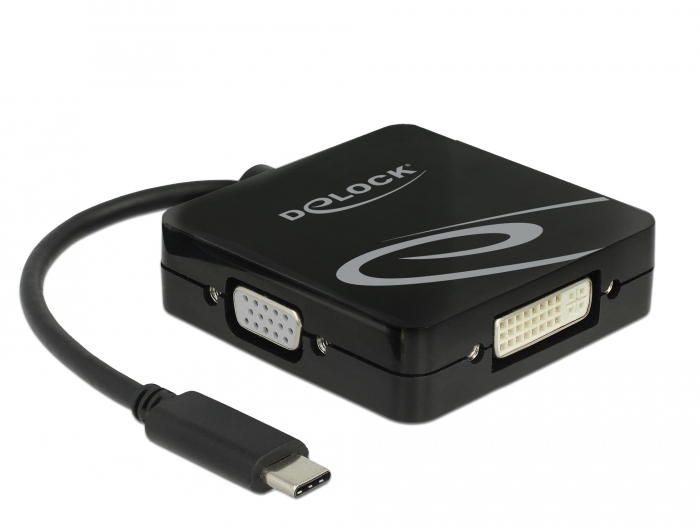

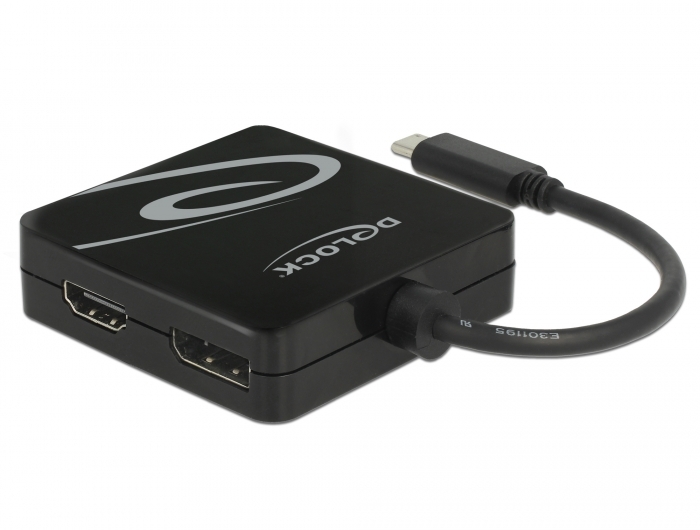

This adapter by Delock is a perfect companion when travelling or for presentations due to its four different video ports. A VGA, HDMI, DVI or DisplayPort monitor can be connected to a computer with USB-C™ interface and DisplayPort alternate mode support. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface. Only one monitor can be used on the adapter.
System requirements:
• Android 6.0 or above
• Chrome OS
• Linux Kernel 4.15.3 or above
• Mac OS 10.13.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• Windows 10 Mobile
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port
Specification:
• Connectors:
  Input:
  1 x USB Type-C™ male
  Output:
  1 x VGA 15 pin female
  1 x DVI 24+5 female
  1 x HDMI-A 19 pin female
  1 x DisplayPort 20 pin female
• Chipset: CH7213, PS8348B, PS176, RTD2166
• DisplayPort 1.2 and High Speed HDMI specification
• DVI-D (Single Link), VGA not wired
• Only 1 monitor usable with the adapter
• Resolution:
  DisplayPort and HDMI up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)
  DVI up to 1920 x 1200 @ 60 Hz (depending on the system and the connected hardware)
  VGA up to 1920 x 1080 @ 60 Hz (depending on the system and the connected hardware)
• Power consumption: max. 1 W
• Cable length without connectors: ca. 10 cm
• Colour: black
Package content:
• Adapter USB-C™ to VGA / HDMI / DVI / DisplayPort
Data sheet:
http://www.delock.de/produkt/63959/pdf.html?sprache=en
