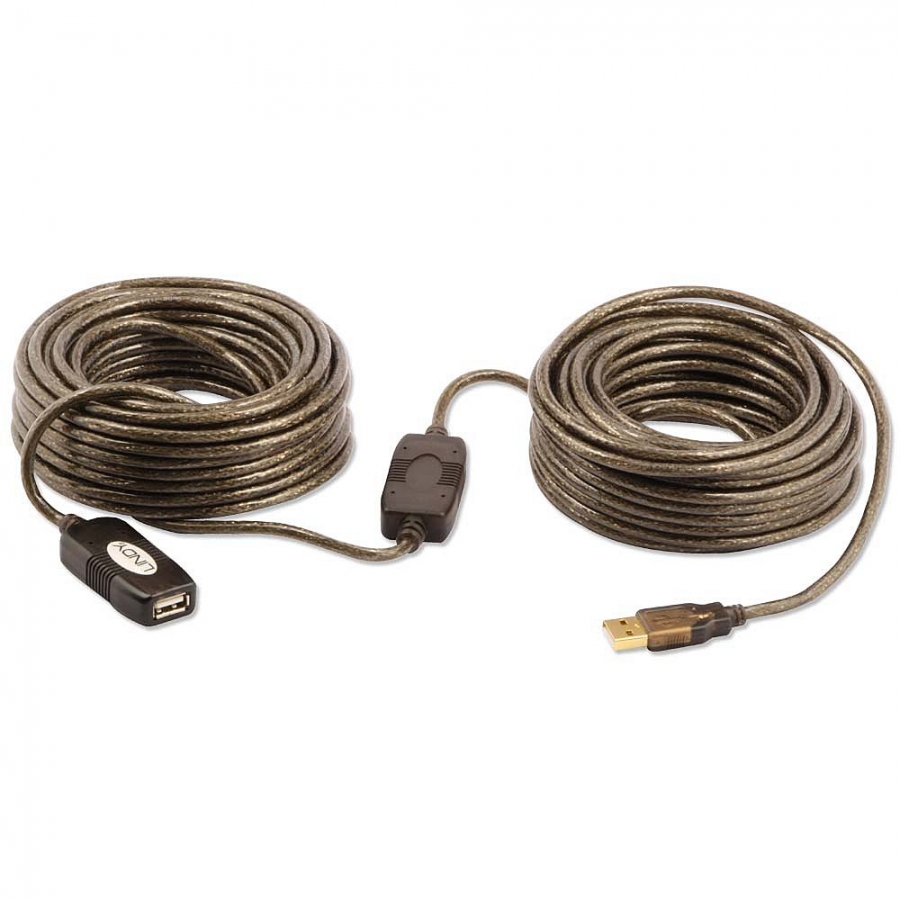

20m USB 2.0 Active Extension

Connectors

• Connector A: USB Type A Male
• Connector B: USB Type A Female
• Power: -
• Housing Material: Plastic
• Connector Plating: Front: Golden
• Pin Construction: Copper
• Pin Plating: Golden
• Dimensions (approx.) WxDxH:
  • USB A Male: 15.7x39x8mm (0.62x1.54x0.31in)
  • USB B Female: 24x53x12mm (0.94x2.09x0.47in)



Cable Construction

• Length: 20m (65.62ft)
• Standard: USB 2.0
• Colour: Transparent Grey
• Type:  Round
• Jacket Diameter: 4.7mm (0.19in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 26/20AWG
• Shielding: 65% Aluminium magnesium braid

Specifications

• Supported Bandwidth: 480 Mbps
• Nominal Attenuation:
  • (0.064 MHz, -0.08 dB)
  • (0.256MHz, -0.11 dB)
  • (0.512MHz, -0.13 dB)
  • (0.772 MHz, -0.15 dB)
  • (1 MHz, -0.2 dB)
  • (4 MHz, -0.39 dB)
  • (8 MHz, -0.57 dB)
  • (12 MHz, -0.76 dB)
  • (24 MHz, -0.95 dB)
  • (48 MHz, -1.35dB)
  • (96 MHz, -1.9 dB)
  • (200 MHz, -3.2 dB)
  • (400 MHz, -5.8 dB)
• Minimum Bend Radius: 30mm (1.18in)
• Maximum Tensile Load: -
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Transmission Medium: Twisted Pair
• Transmission Technology: USB 2.0

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 152x141x96mm (5.98x5.55x3.78in)
• Net Weight: 0.6kg (1.32lb)
• Gross Weight: 0.687kg (1.51lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Packaging Content

• USB 2.0 Active Extension 20m

Purchasing Information

• No.: 42631
• EAN: 4002888426312

This product is also available in other lengths

• 42915 - 5m (16.4ft)
• 42630 - 10m (32.81ft) with hub
