Delock USB 3.0 Converter for M.2 Key B module with SIM slot and enclosure

DELOCK

63172

New

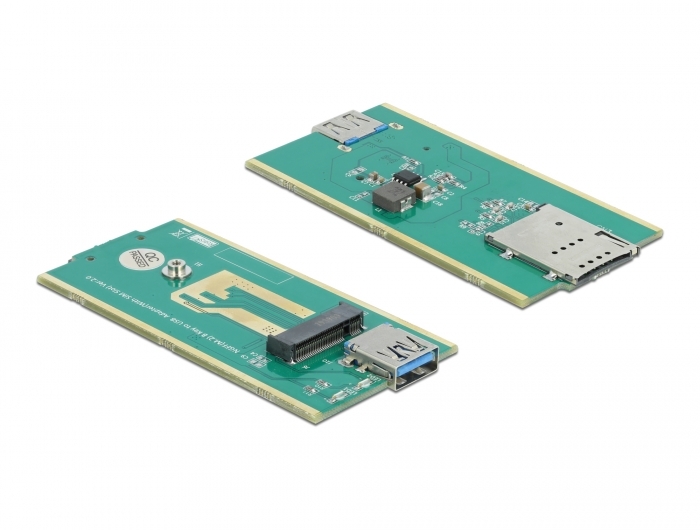

This converter by Delock enables the connection of an M.2 module, e.g. GSM, GPRS, 3G, WLAN or LTE, in 2242 or 3042 format. The converter can be installed into the system through the USB interface.

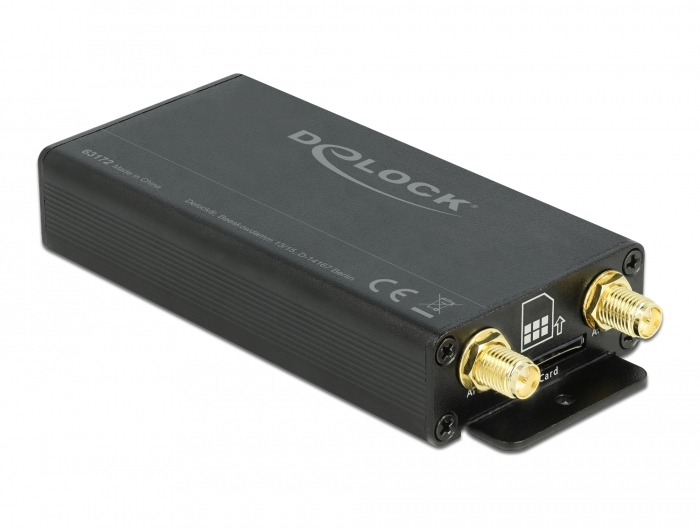

Sturdy metal housing with antenna connector

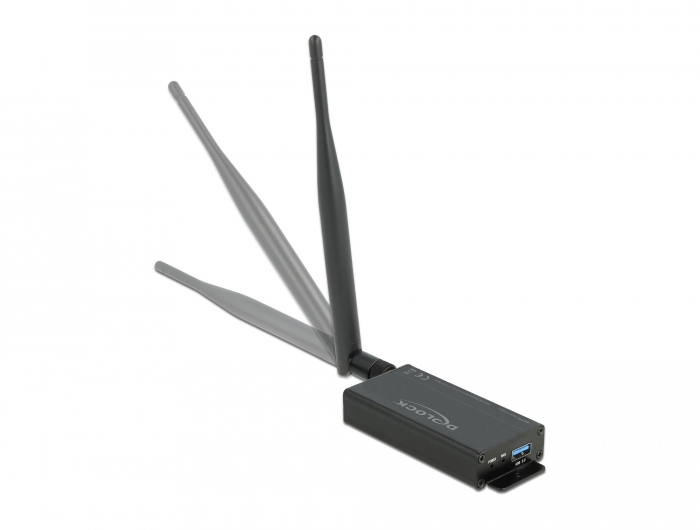

The sturdy housing prevents damage to the built-in M.2 module when it is used on the go, for example. The two SMA antenna connectors and the included antennas can be used to receive a radio signal, e.g. LTE, or to use one antenna for 2.4 GHz and one antenna for 5 GHz when using a WiFi module.
System requirements:
• A free USB Type-A port
Specification:

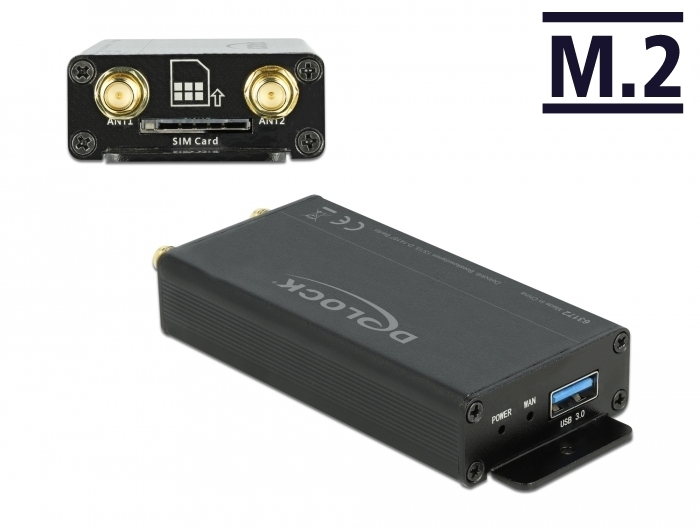

• Connectors:
  external:
  1 x USB 3.0 Type-A female
  1 x SIM slot
  2 x SMA plug
  internal:
  1 x 67 pin M.2 key B slot
  2 x MHF® IV plug
• Interface: USB
• Supports M.2 modules in format 2242 and 3042 with key B or key B+M based
  on USB
• Maximum height of the components on the module: 1.5 mm,
  application of double-sided assembled modules supported
• Antenna specification:
  Frequency range: 2.4 GHz + 5 GHz band
  Antenna gain: 5 dBi
  omnidirectional
• 2 x LED indicator
• Robust metal housing
• Dimensions (LxWxH): ca. 107 x 45 x 18 mm
• Hot Swap, Plug & Play
• USB bus powered

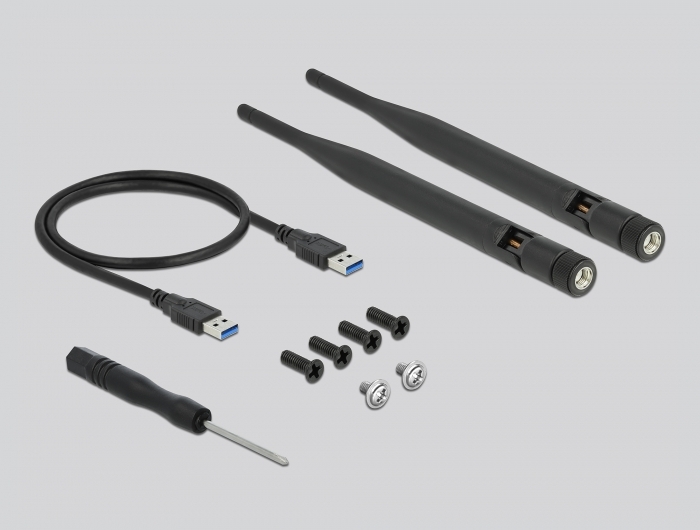

Package content:
• Converter
• Mounting material
• Screwdriver
• Cable USB 3.0 Type-A male to USB 3.0 Type-A male, length ca. 55 cm
• 2 x antenna
• User manual
Data sheet:
http://www.delock.de/produkt/63172/pdf.html?sprache=en
