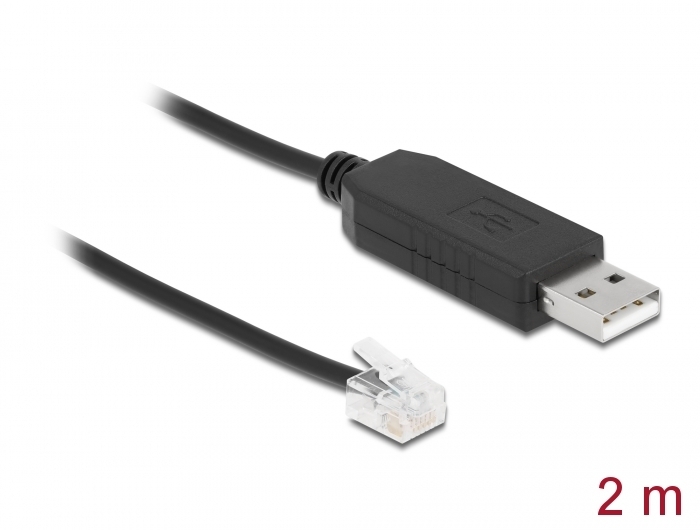

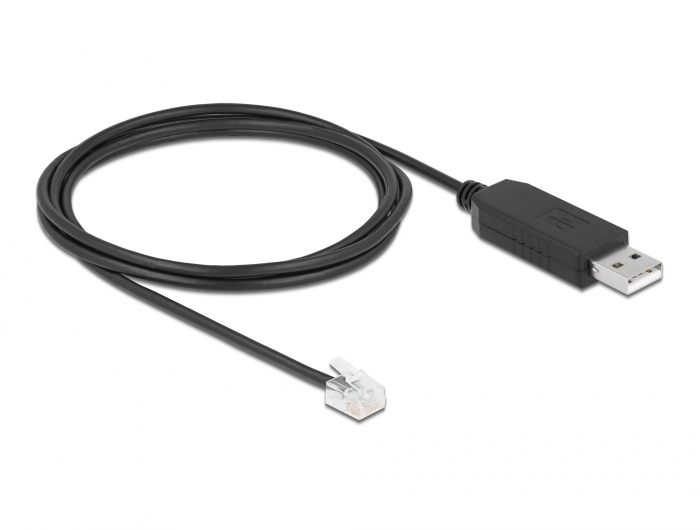

Delock Adapter cable USB Type-A to Serial RS-232 RJ12 with ESD potection Skywatcher 2 m

Reference 66735

Condition: New

More info

This USB to RS-232 RJ12 adapter cable by Delock is suitable for the PC operation of hand control boxes by the Skywatcher Telescopes. With the appropriate astronomy applications, the position of the telescope can be controlled by the computer or a firmware update can be carried out.

System requirements:
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port

Specification:
• Connectors:
1 x USB 2.0 Type-A male
1 x Serial RS-232 RJ12 plug
• Chipset: FTDI FT231X
• Plug & Play
• FIFO: 512 Byte - TX
• FIFO: 512 Byte - RX
• Compatible with USB 3.0, USB 2.0, and USB 1.1 full speed 12 Mbps
• Data transfer rate up to 230.4 Kb/s

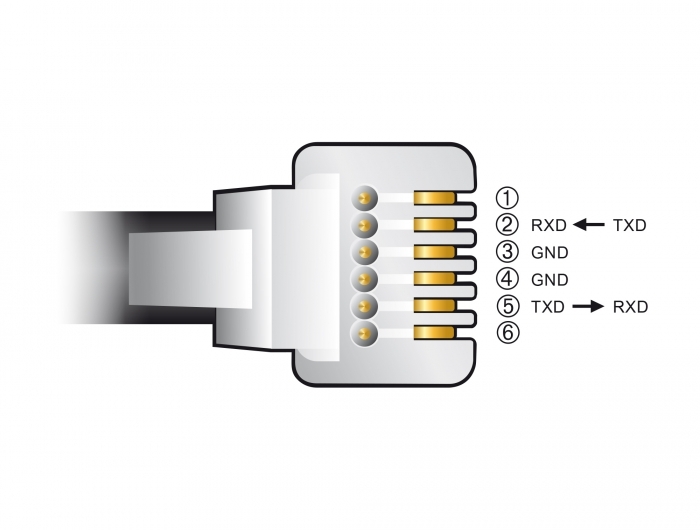

• Signals: RXD(2), GND(3), GND(4), TXD(5)
• ESD protection IEC 61000-4-2
HCP & VCP: ±4 kV
Air Discharge: ±8 kV
Contact Discharge: ±4 kV
• Colour: black
• Cable length incl. connectors: ca. 2.0 m
• Suitable for various Skywatcher hand controllers

Package content:
• Adapter cable USB 2.0 Type-A to RS-232 RJ12

Data sheet:
http://www.delock.de/produkt/66735/pdf.html?sprache=en
