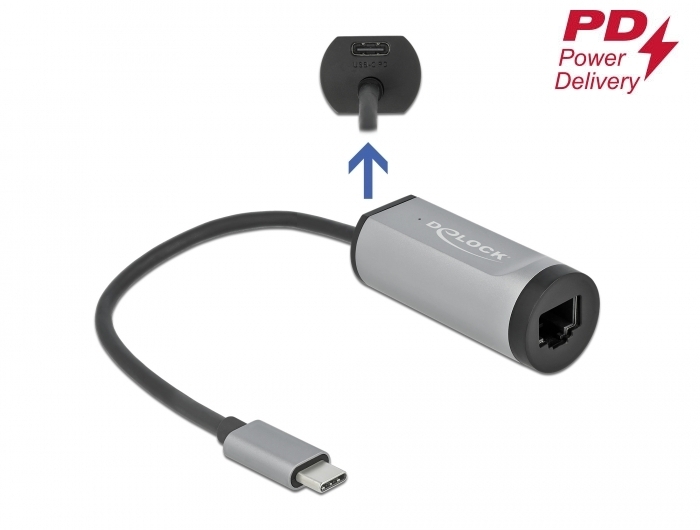

Delock USB Type-C™ Adapter to Gigabit LAN with Power Delivery port grey

Reference 64116

Condition: New

More info

The adapter by Delock expands a PC or laptop by one network interface via the USB Type-C™ interface. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface.

USB Power Delivery (USB PD 3.0) support up to 60 watt

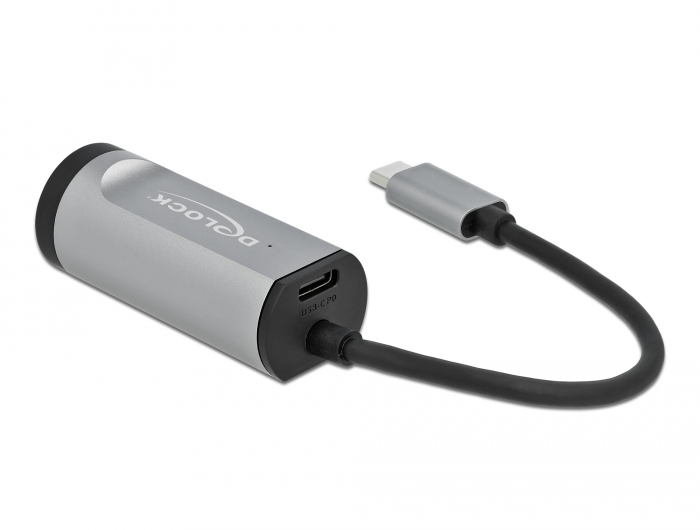

The adapter has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it.

Small sturdy helper
Due to its small dimensions and its sturdy housing, this Delock adapter is particularly suitable for travelling. It can simply be packed into the bag together with the laptop or tablet and used as needed.

System requirements:
• Android 10.0 or above
• Chrome OS
• iPad Pro (2018)
• Linux Kernel 5.4 or above
• Mac OS 10.15.6 or above
• Windows 8.1/8.1-64/10/10-64
• Laptop or tablet with a free USB Type-C™ or Thunderbolt™ 3 port

Specification:
• Connectors:
  1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ male >
  1 x Gigabit LAN RJ45 jack
  1 x USB Type-C™ PD female (power supply)
• Chipset: ASIX AX88179
• SuperSpeed USB - 5 Gbps specification
• Data transfer rate:
  Ethernet up to 10 Mbps (Half/Full Duplex)
  Fast Ethernet up to 100 Mbps (Half/Full Duplex)
  Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
• Compatible with:
  IEEE 802.3: 10BASE-T
  IEEE 802.3u: 100BASE-TX
  IEEE 802.3ab: 1000BASE-T
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports Wake On LAN (WOL)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Support full duplex operation with IEEE 802.3x flow control and half duplex operation
with back-pressure flow control
• Supports 4k Jumbo Frames
• Output power for host: max. 60 W
• Housing material: aluminium / plastic
• LED indicator for power and activity
• USB bus powered
• Colour: grey
• Cable length incl. connectors: ca. 15.5 cm
• Dimensions (LxWxH): ca. 56 x 23.5 x 23.5 mm

Package content:
• USB Type-C™ Gigabit LAN adapter
• User manual

Data sheet:
http://www.delock.de/produkt/64116/pdf.html?sprache=en
