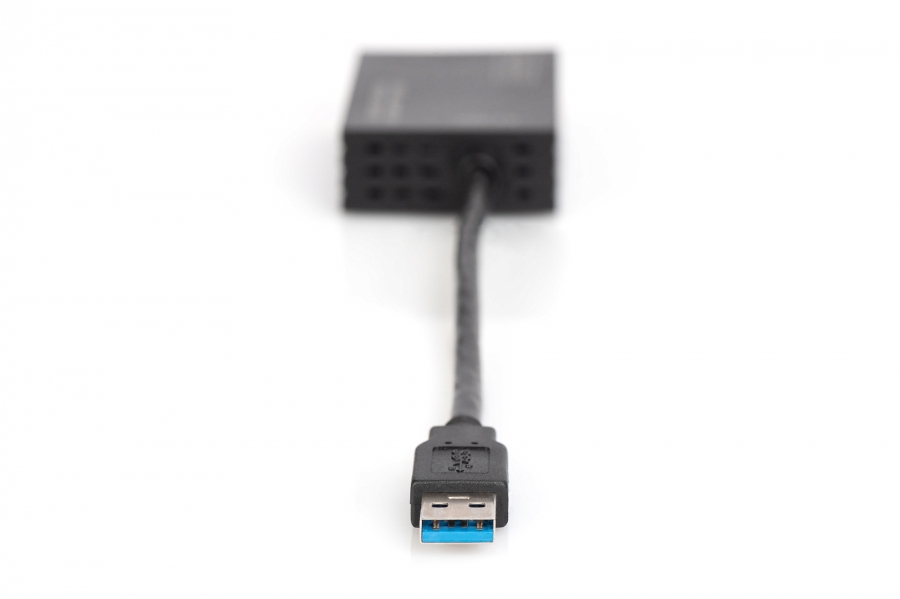

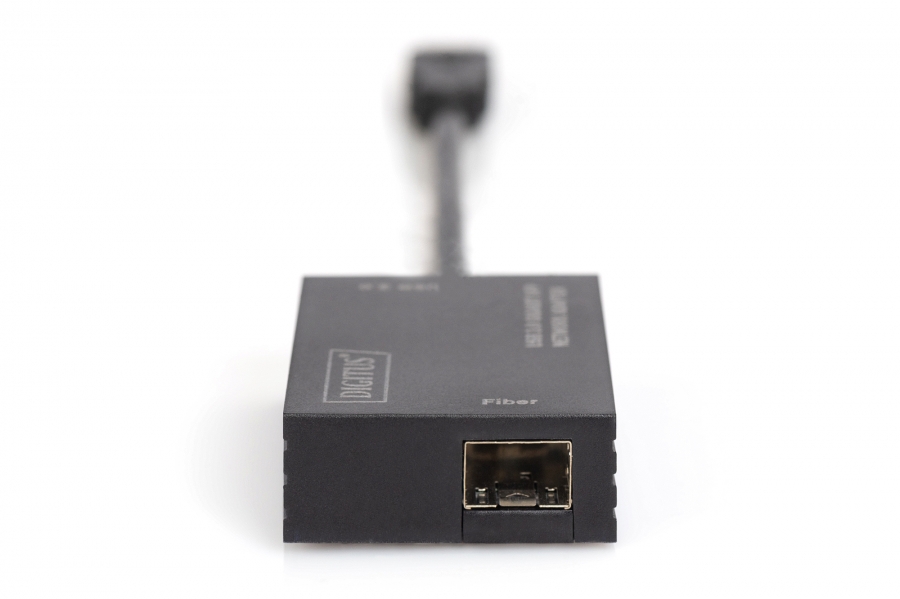

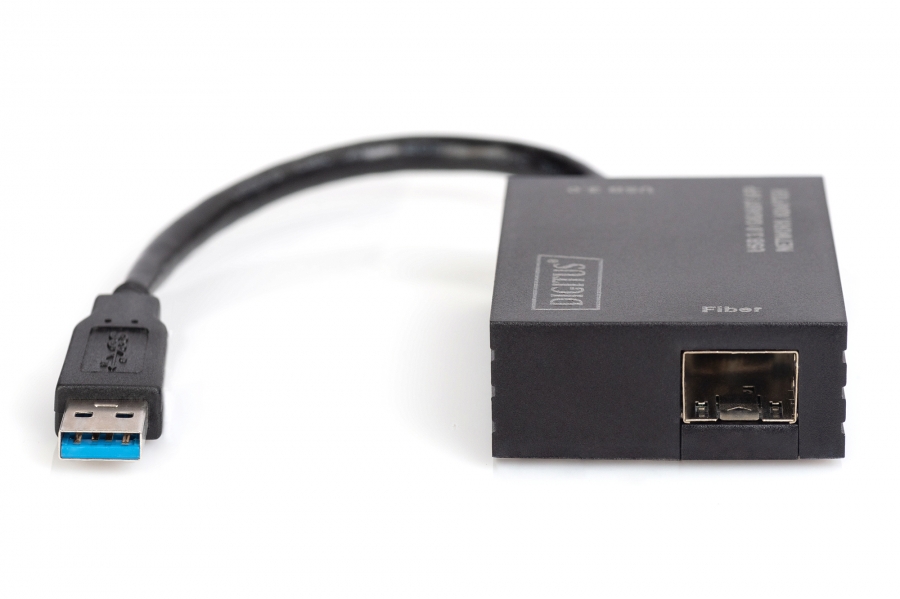

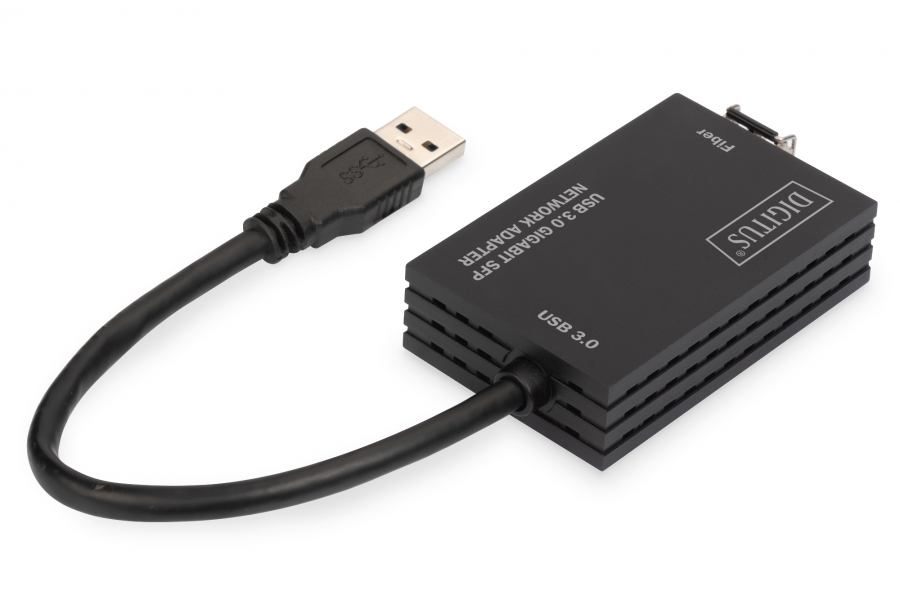

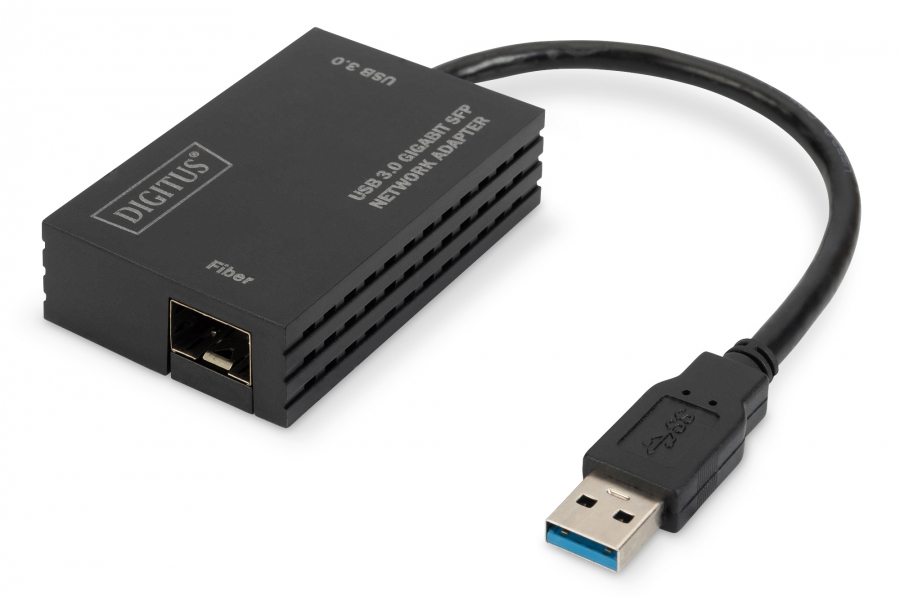

Digitus USB 3.0 Gigabit SFP Network Adapter

Digitus

DN-3026

New

USB3.0 Gigabit SFP Network Adapter additional SFP module needed

Extend your laptop with USB 3.0 port to a complete Gigabit SFP network connection.

Up to 1000 Mbps data transfer rate
Easy to install thanks to plug and play - driver on virtual CD drive in the adapter is included
No power supply required - power is supplied via the USB 3.0 interface
Ideal also for mobile and stationary use
Supports Layer 2 features like VLAN and IEEE802 priority encoding
Compatible with Windows, macOS, Google Chrome and all other USB 3.0 compatible systems.
Compact dimensions, elegant design

The USB 3.0 Gigabit SFP adapter allows you to extend your laptop to an SFP connection and to connect directly to a fiber optic network via a suitable fiber optic transceiver. This fiber optic interface is the right choice both for mobile use in connection with laptops and for stationary use in desktop systems. In addition, this SFP adapter in data and server centers serves its purpose in monitoring and troubleshooting applications, allowing you to intervene into the fiber optic infrastructure directly and with full bandwidth. It is easy to use, offers a wealth of options and is the perfect complement for most computers that do not have an SFP connection as a standard feature. Thanks to the virtual drive, no driver installation from CD is necessary - plug in and get started. The power supply is also ensured via the USB 3.0 interface. If Wi-Fi connections pose a security risk and copper connections are too slow, fiber optic connectivity provides the right solution for your network. The adapter is compatible with Windows, macOS, Google Chrome and all other systems that are compatible with USB 3.0.

Supports USB 3.0 ports
Fast Gigabit data transfer
Chipset: RTL8153/Realtek
Advanced energy-saving options via USB 3.0
Supports IEEE802.3az-2010 (EEE)
Network standards: IEEE 802.1p,IEEE 802.1Q,IEEE 802.2,IEEE 802.3ac IEEE 802.3az,IEEE 802.3x, IEEE 802.3z,IEEE 802.3ad
Additional Features: IPMI pass-through via SMBus or NC-SI, WoL, PXE remote boot, ISCSI boot, VLAN filtering
Compatible with Microsoft NDIS5, NDIS6(IPv4, IPv6, TCP, UDP) checksum features
Supports IEEE802 IP Layer 2 priority encoding and IEEE802.1Q VLAN (Virtual bridged Local Area network)
Supports 1000Mbps-SX/LX transreceiver
Supports USB 3.0, USB 2.0 and USB 1.1
Supports CDC-EMC (Device Class & Ethernet Control Model)
Supports LPM (Link Power Management)
Supports Pair swap / polarity / skew correction
Crossover Detection & Auto-Correction
Integrated transmit/receive buffer support
Supports hardware CRC (Cyclic Redundancy Check) function
Supports power down / link down, power saving
Upstream port: USB 3.0 AF
Downstream port: SFP Port
Operation temperature: 0 – 70°C
Operating humidity: 10 – 90% (non-condensing)
Power Consumption: 2.5 W
Power consumption on standby: 0.7 W
Cable length: 17 cm
Measurements: L 7.1 x B 4.5 x T 1.8 cm
Weight: 50 g

Package content:
1 x USB 3.0 Gigabit SFP Network Adapter
1 x Manual
1 x CD-ROM
SFP module not included in package content.

Platums(cm)17.5
Grums(cm)12.6
Augstums(cm)3.2
Svars(kg)0.122222
Tilpums(cm3)705.6
Izcelsmes valstsCN
