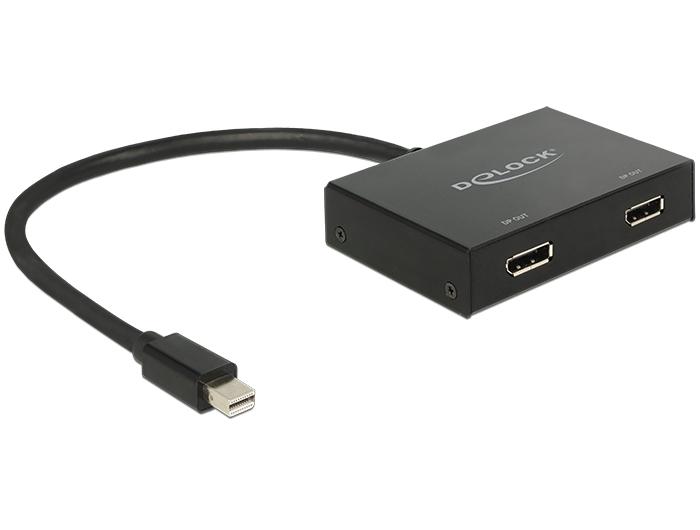

Delock Displayport 1.2 Splitter 1 x mini Displayport in 2 x Displayport out 4K

DELOCK

87695

New

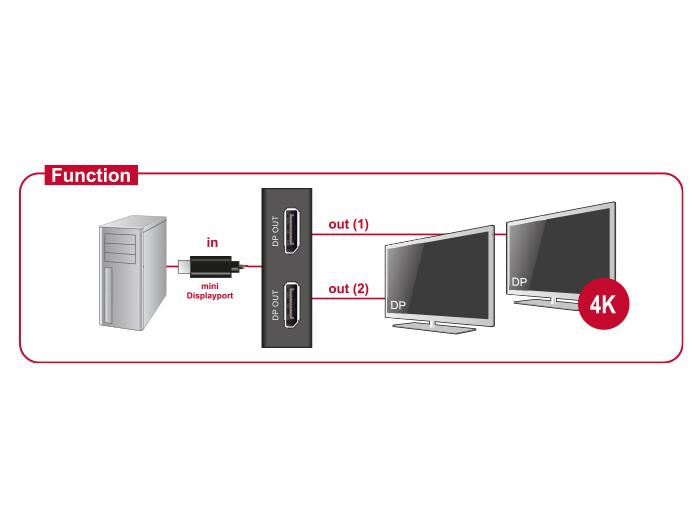

This splitter by Delock receives a Displayport signal from a PC or laptop and splits it to two connected displays. Thereby one mini Displayport connection can be used to operate two Displayport monitors. Both outputs are dual-mode capable (DP++), so that HDMI or DVI monitors can be connected with suitable adapters.

More details

Description:
This splitter by Delock receives a Displayport signal from a PC or laptop and splits it to two connected displays. Thereby one mini Displayport connection can be used to operate two Displayport monitors. Both outputs are dual-mode capable (DP++), so that HDMI or DVI monitors can be connected with suitable adapters.

Specification:
• Connector:
Input: 1 x mini Displayport 20 pin male
Output: 2 x Displayport 20 pin female
• Chipset: STDP4320
• Displayport 1.2a specification
• Active converter, Single / Multi Stream Transport Hub (SST / MST)
• Maximum resolution (depending on the system and the connected hardware):
Displayport 1.1 or 1.2 Single Stream Transport (SST):
up to 1920 x 1080 @ 60 Hz (mirror)
Displayport 1. 2 Multi Stream Transport (MST):
up to 2560 x 1440 @ 60 Hz or 3840 x 2160 @ 30 Hz (mirror or extended)
• Displayport output supports Dual Mode DP++
• Supports audio and video signals
• Supports Eyefinity / Single Large Surface (SLS)
• Audio input formats: 7.1 channel up to 192 kHz sample rate
• Metal housing
• Cable length: ca. 30 cm (without connector)
• Colour: black
• Dimensions (LxWxH): ca. 100 x 67 x 23 mm
• OS independent, no driver installation necessary

System requirements:
• A free mini Displayport female port

Package content:
• Displayport Splitter
