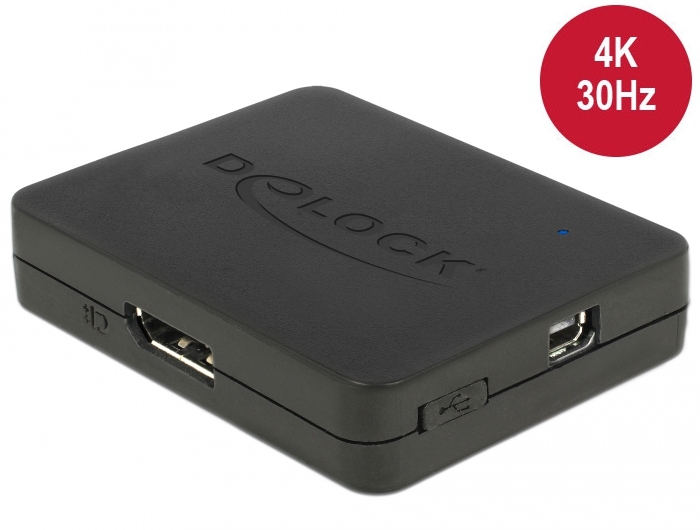

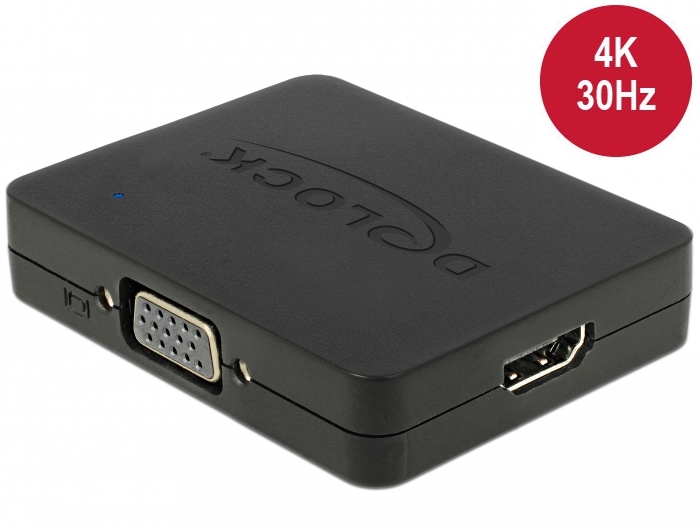

Delock Displayport 1.2 Splitter 1 x mini Displayport in to 1 x Displayport + 1 x HDMI + 1 x VGA out

DELOCK

87685

New

- Eingang: 1 x mini Displayport Buchse - Ausgang: 1 x DP, 1 x HDMI, 1 x VGA Buchse - DP 1.2 Multi Stream Transport (MST) bis zu 3840x2160 @ 30 Hz (spiegeln oder erweitern) bis zu 2560x1440 @ 60 Hz (spiegeln oder erweitern) - Unterstützt 3D, HDCP, Eyefinity, SLS, 7.1 Audio - Anschlusskabel: mini Displayport > mini Displayport Displayport > mini Displayport
System requirements:
• One free mini Displayport or Displayport female port
Specification:
• Connectors:
  Input:
  1 x mini Displayport 20 pin female
  1 x USB Type Micro-B female (5 V power supply)
  Output:
  1 x Displayport 20 pin female
  1 x HDMI-A 19 pin female
  1 x VGA 15 pin female
• Displayport 1.2a specification
• Displayport output supports Dual Mode DP++
• VGA port with nuts
• Chipset: VMM2322
• Active converter, Single / Multi Stream Transport Hub (SST / MST)
• HDMI and Displayport ports support: extended and mirrored,
  resolution up to 2560 x 1440 @ 60 Hz or 3840 x 2160 @ 30 Hz
  (depending on the system and the connected hardware)
• VGA resolution up to 1920 x 1200 @ 60 Hz
• Supports HDCP 1.3
• Supports audio signals over Displayport or HDMI
• Supports Eyefinity / Single Large Surface (SLS)
• Audio input formats: 7.1 channel up to 192 kHz sample rate
• Colour: black
• Dimensions (LxWxH): ca. 70 x 54 x 14 mm
• OS independent, no driver installation necessary
Package content:
• Displayport Splitter

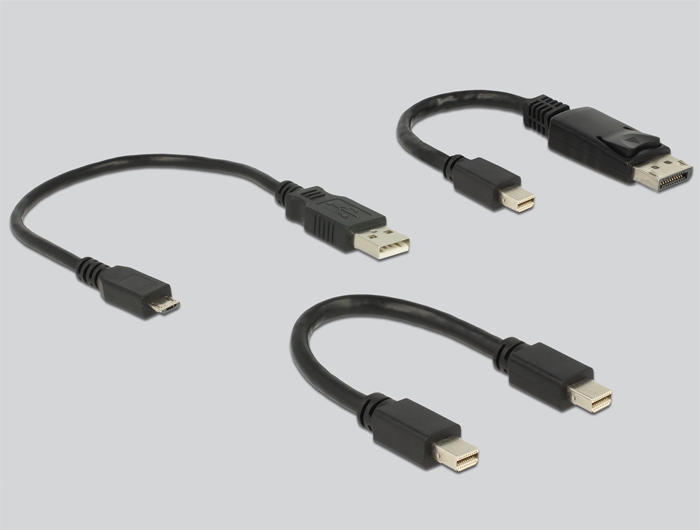

• 1 x cable DP male to Mini DP male, length ca. 19 cm
• 1 x cable Mini DP male to Mini DP male, length ca. 16.5 cm
• 1 x cable USB A male to USB Micro-B male, length ca. 25 cm
• User manual
Data sheet:
http://www.delock.de/produkt/87685/pdf.html?sprache=en
