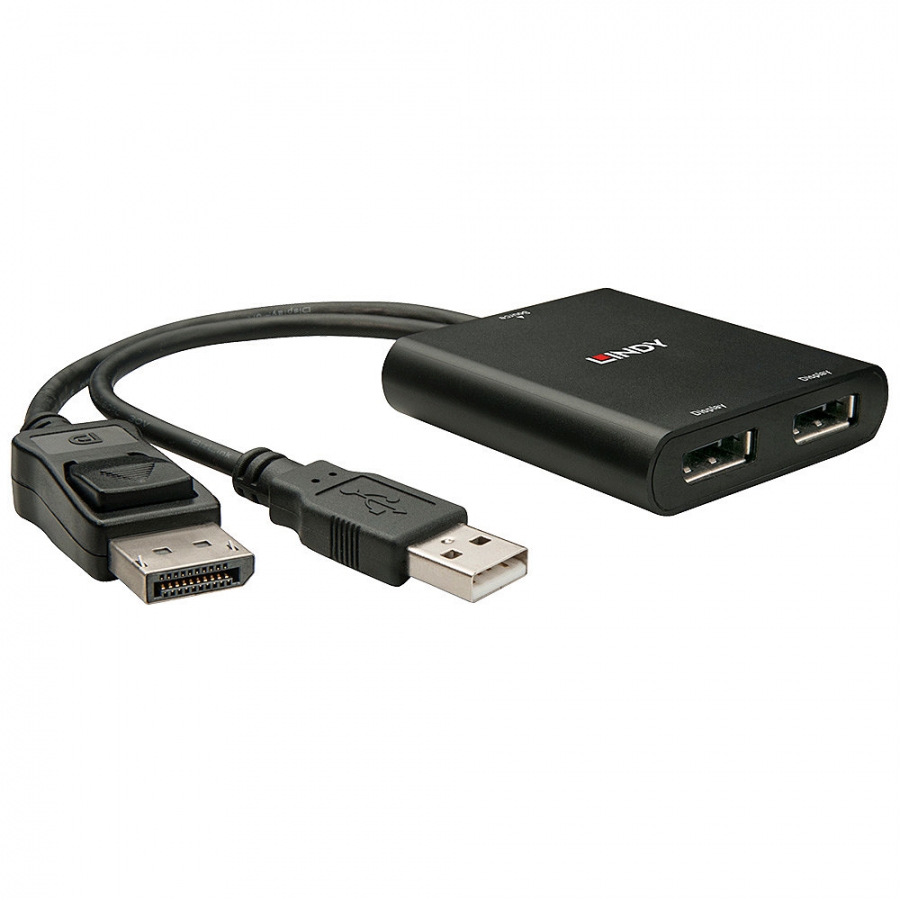

2 Port DisplayPort 1.2 MST Hub

LIN38427

New

Specification

  • AV Interface: DisplayPort
  • Interface Standard: DP 1.2
  • Supported Bandwidth: 21Gbps
  • Maximum Resolution: 3840x2160@60Hx 4:4:4 8bit
  • HDCP Support: HDCP 1.3
  • Supported Audio: Up to 7.1CH
  • Separate Audio Ports: -
  • CEC Support: -
  • Serial Interface: -
  • Special Features: -



Connectors

  • Input: DisplayPort (Male)
  • Output: 2 x DisplayPort (Female)
  • Control: -
  • Power: USB Type A (Male), Bus-powered



Physical Properties

  • Dimensions (approx.) WxDxH: 58x62x14mm (2.28x2.44x0.55in)
  • Housing Material: Metal
  • Net Weight: 0.063kg (0.14lb)
  • Operating Temperature: 0°C - 45°C (32°F - 113°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 80 - 90% RH (non-condensing)
  • Power Requirements: -
  • Colour: Black



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 150x235x20mm (5.91x9.25x0.79in)
  • Gross Weight: 0.08kg (0.18lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, UL & REACH



Package Contents

  • DisplayPort MST Hub
  • Lindy Manual



Purchasing Information

  • No.: 38427
  • EAN: 4002888384278
