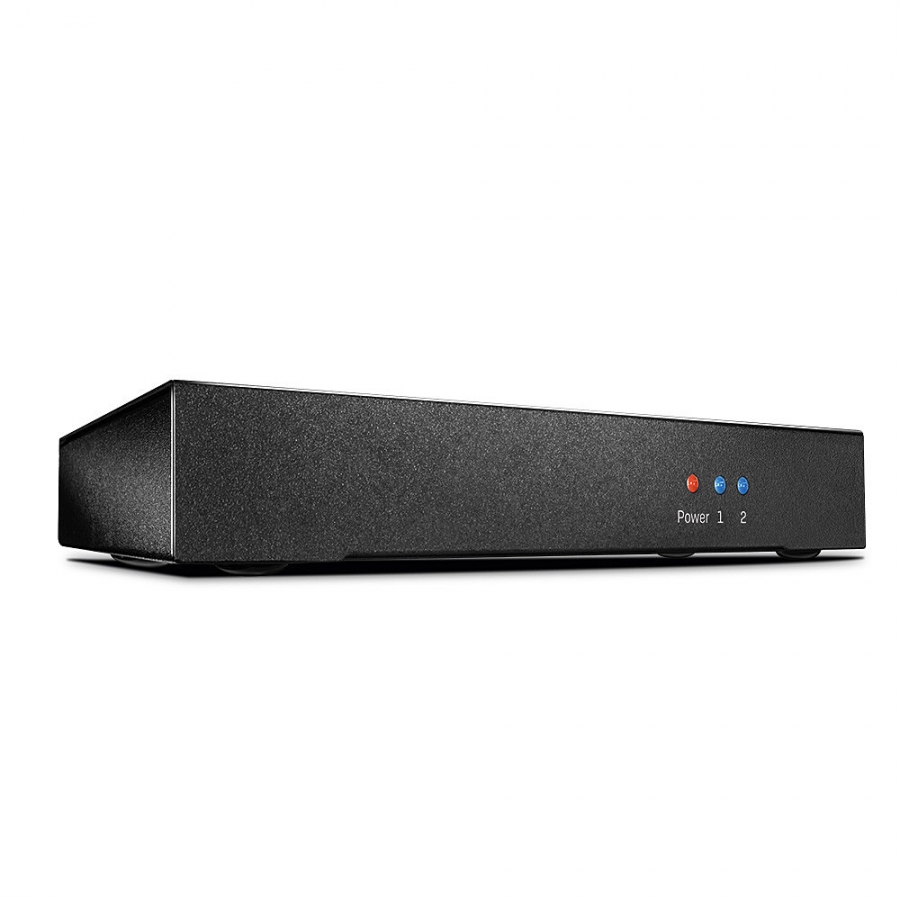

2 Port DVI-D Single Link Splitter

LIN38305

New

Specifications

  • AV Interface: DVI-D
  • Interface Standard: DVI-D 1.0 (Single Link)
  • Supports Bandwidth: 4.95Gbps
  • Maximum Resolution: 1920x1200@60Hz
  • HDCP Support: 1.3
  • Supported Audio: -
  • Separate Audio Ports: -
  • CEC Support: -
  • Serial Interface: -
  • Special Features: Active LED Indicators



Connectors

  • Input: 1 x DVI-D (Female)
  • Output: 2 x DVI-D (Female)
  • Control: -
  • Power: 5.5/2.1mm DC socket



Physical Properties

  • Dimensions (approx.) WxDxH: 155x23x70mm (6.1x0.91x2.76in)
  • Housing Material: Metal
  • Net Weight: 0.265kg (0.58lb)
  • Operating Temperature: 0°C - 45°C (32°F - 113°F)
  • Storage Temperature: -10°C - 80°C (14°F - 176°F)
  • Humidity: 10 - 85% RH (non-condensing)
  • Power Requirements: 5VDC 3A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 250x60x200mm (9.84x2.36x7.87in)
  • Gross Weight: 0.791kg (1.74lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • 2 Port DVI-D Video Splitter
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 38305
  • EAN: 4002888383059
