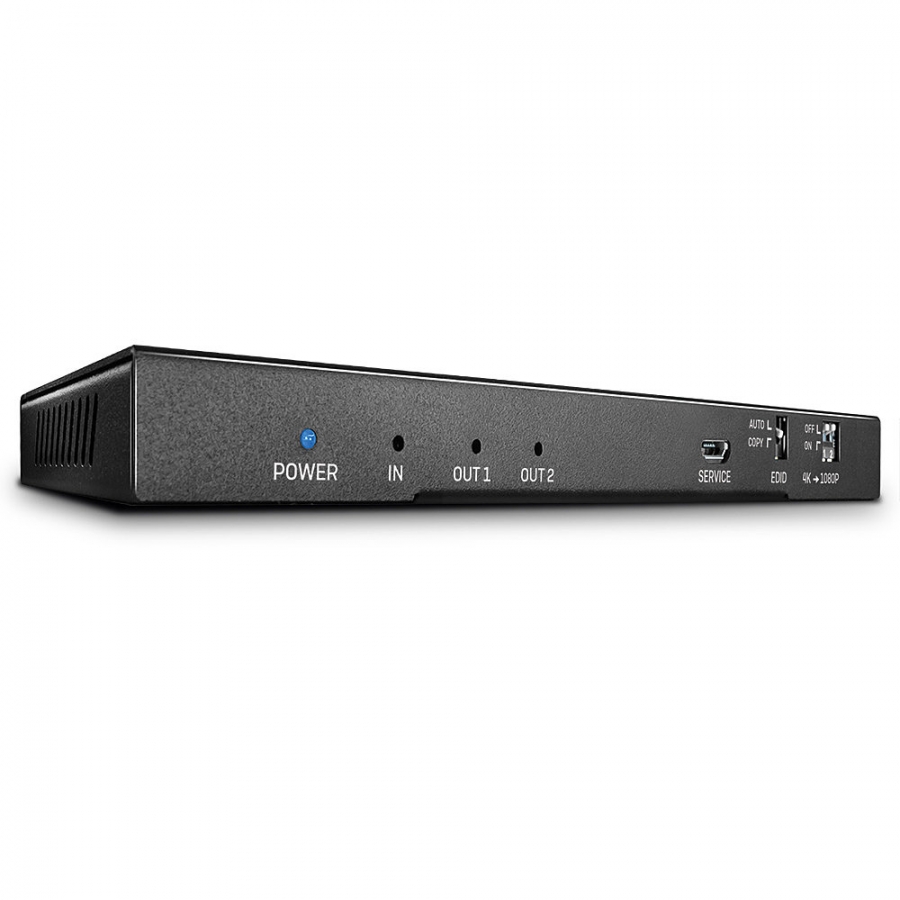

2 Port HDMI 18G Splitter with Audio & Downscaling

LIN38230

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0
  • Supports Bandwidth: 18Gbps
  • Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • Supported Audio:
    • Audio Pass-through
    • LPCM 2CH
    • Up to 7.1CH (Optical)
  • Separate Audio Ports:
    • 3.5mm (Female)
    • Toslink (Optical)
  • CEC Support: -
  • Serial Interface: -
  • Special Features: Downscaler Function, EDID Emulation



Connectors

  • Input: HDMI Type A (Female)
  • Output: 2 x HDMI Type A (Female), Toslink (Optical), 3.5mm (Female)
  • Control: -
  • Power: 5.5/2.1mm



Physical Properties

  • Dimensions (approx.) WxDxH: 120x14.4x63mm (4.72x0.57x2.48in)
  • Housing Material: Metal
  • Net Weight: 0.29kg (0.64lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20-90% RH (non-condensing)
  • Power Requirements: 5VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 206x64x117mm (8.11x2.52x4.61in)
  • Gross Weight: 0.396kg (0.87lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package Contents

  • 2 Port HDMI Splitter with Audio
  • Multi-Country Power Supply (UK, EU, US & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 38230
  • EAN: 4002888382304
