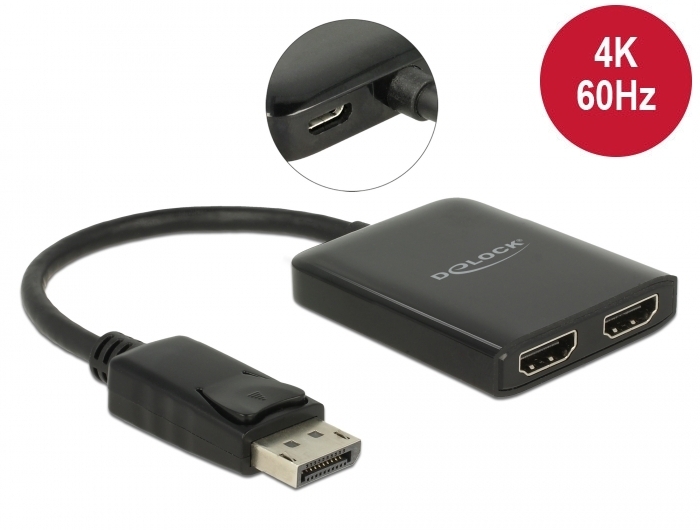

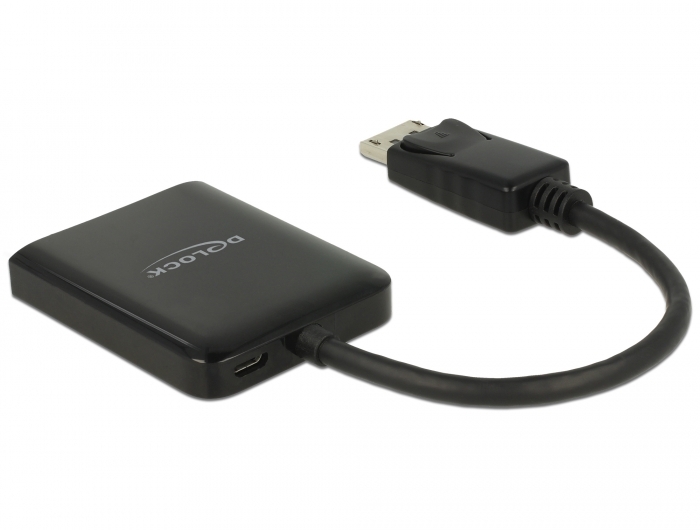

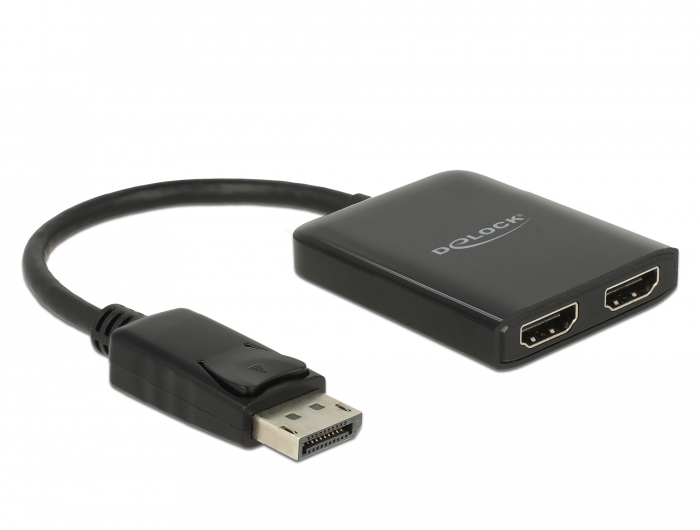

Delock DisplayPort 1.4 Splitter 1 x DisplayPort to 2 x HDMI MST

DELOCK

87769

New

This splitter by Delock receives a DisplayPort signal from a PC or laptop and splits it to two connected displays. Thereby one DisplayPort connection can be used to operate two HDMI monitors.

Multi-Stream Transport (MST)
The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort. In Windows, the connected monitors are controlled individually, and can be combined into one large display.
System requirements:
• Windows 8.1/8.1-64/10/10-64
• A free DisplayPort female
• Charger 1 x USB Type-A 5 V / 2 A
Specification:
• Connectors:
 Input:
  1 x DisplayPort male
  1 x USB Type Micro-B female (5 V power supply)
 Output:
  2 x HDMI-A female
• Chipset: VMM5200
• DisplayPort 1.4 specification
• Active converter, Single- / Multi-Stream Transport Hub (SST / MST)
• Functions: Mirrored or Extended (Windows only)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Maximum resolution (depending on the system and the connected hardware):
  DisplayPort 1.4 Multi-Stream Transport (MST):
  2 displays: up to 3840 x 2160 @ 60 Hz
  DisplayPort 1.2 Multi-Stream Transport (MST):
  2 displays: up to 3840 x 2160 @ 30 Hz
• Transmission of audio and video signals
• Colour: black
• Cable length incl. connectors: ca. 20 cm
• Dimensions (LxWxH): ca. 61 x 49 x 12 mm
Package content:
• DisplayPort Splitter

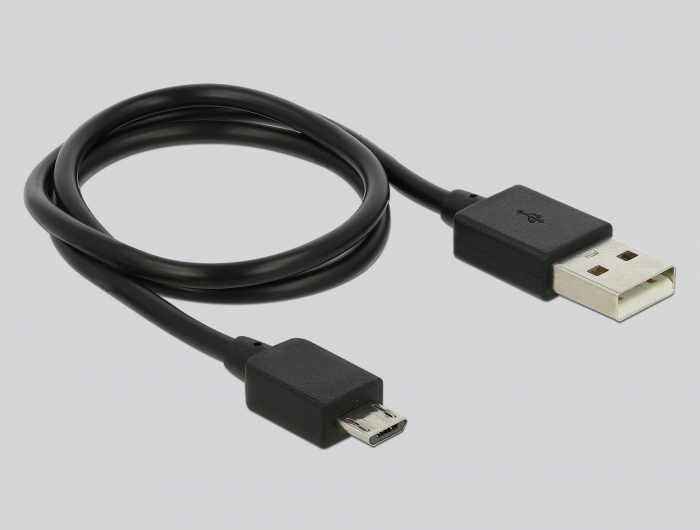

• USB power cable, length: ca. 0.5 m
• User manual
Data sheet:
http://www.delock.de/produkt/87769/pdf.html?sprache=en
