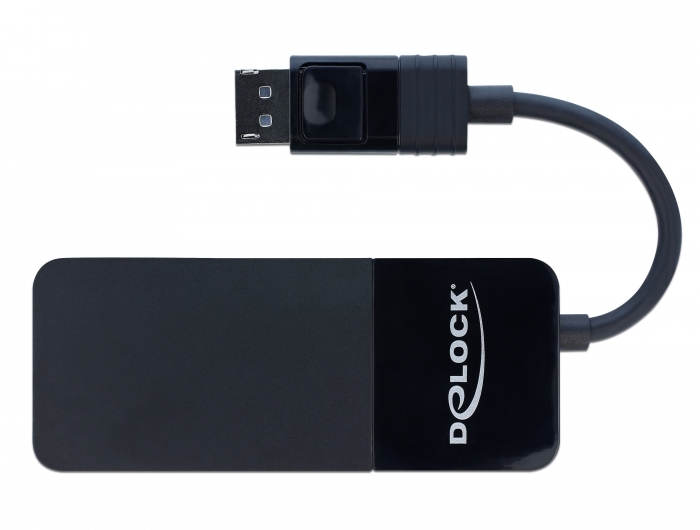

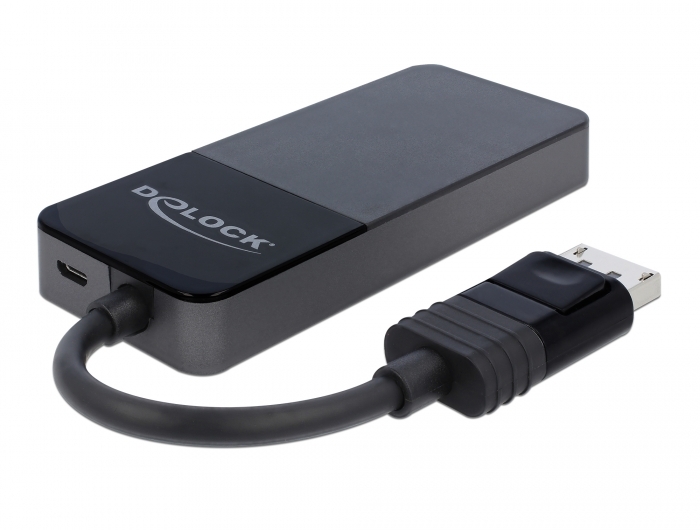

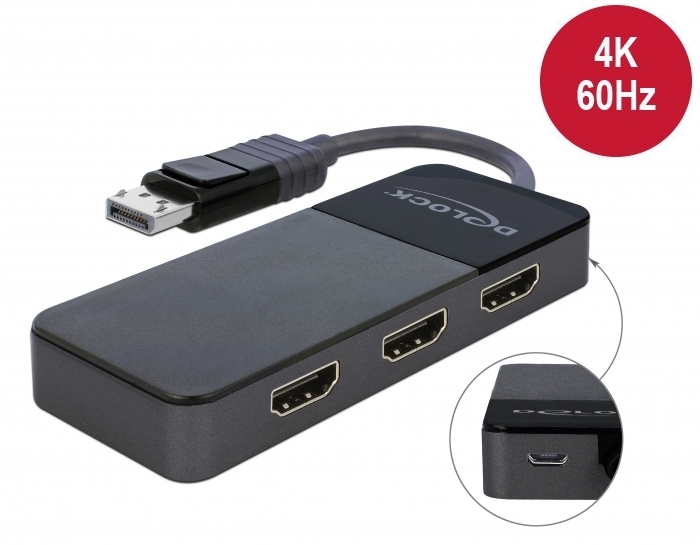

Delock DisplayPort 1.4 Splitter 1 x DisplayPort to 3 x HDMI MST

Reference 87770

Condition: New

More info

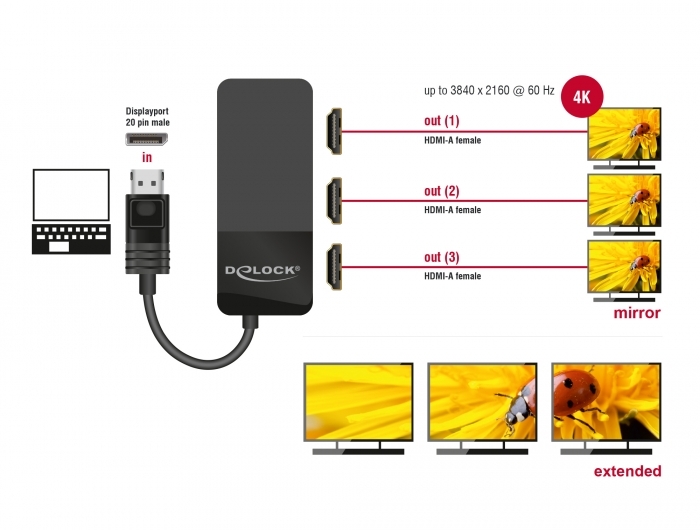

This splitter by Delock receives a DisplayPort signal from a PC or laptop and splits it to three connected displays. Thereby one DisplayPort connection can be used to operate three HDMI monitors.

Multi-Stream Transport (MST)
The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort. In Windows, the connected monitors are controlled individually, and can be combined into one large display.

High resolution
Due to the higher bandwidth of DisplayPort 1.4, a total of three monitors with 4K resolution (3840 x 2160) are supported.

System requirements:
• Windows 8.1/8.1-64/10/10-64
• A free DisplayPort female
• Charger 1 x USB Type-A 5 V / 2 A

Specification:
• Connectors:
  Input:
  1 x DisplayPort male
  1 x USB Type Micro-B female (5 V power supply)
  Output:
  3 x HDMI-A female
• Chipset: VMM5300
• DisplayPort 1.4 specification
• Active converter, Single- / Multi-Stream Transport Hub (SST / MST)
• Functions: Mirrored or Extended (Windows only)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Maximum resolution (depending on the system and the connected hardware):
  DisplayPort 1.4 Multi-Stream Transport (MST):
  2 displays: up to 3840 x 2160 @ 60 Hz
  3 displays: up to 3840 x 2160 @ 30 Hz + 1 x up to 3840 x 2160 @ 60 Hz
  DisplayPort 1.4 Multi-Stream Transport (MST) + DSC:
  3 displays: up to 3840 x 2160 @ 60 Hz
• Transmission of audio and video signals
• Colour: black
• Cable length without connectors: ca. 12.5 cm
• Dimensions without cable (LxWxH): ca. 105 x 43 x 14 mm

Package content:
• DisplayPort Splitter

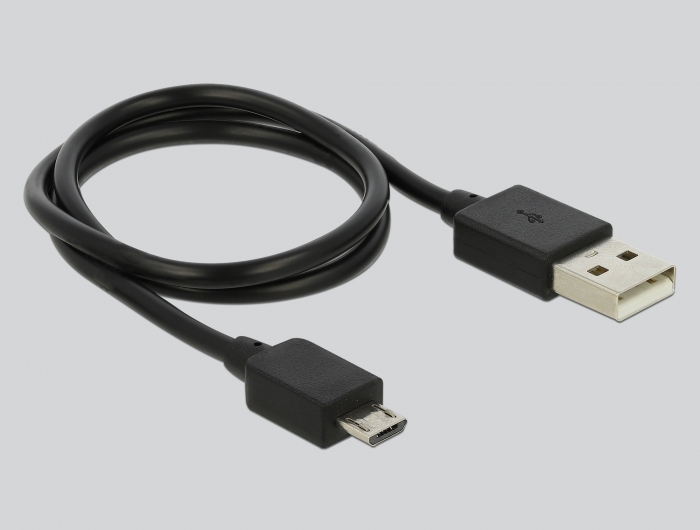

• USB power cable, length: ca. 0.5 m
• User manual
