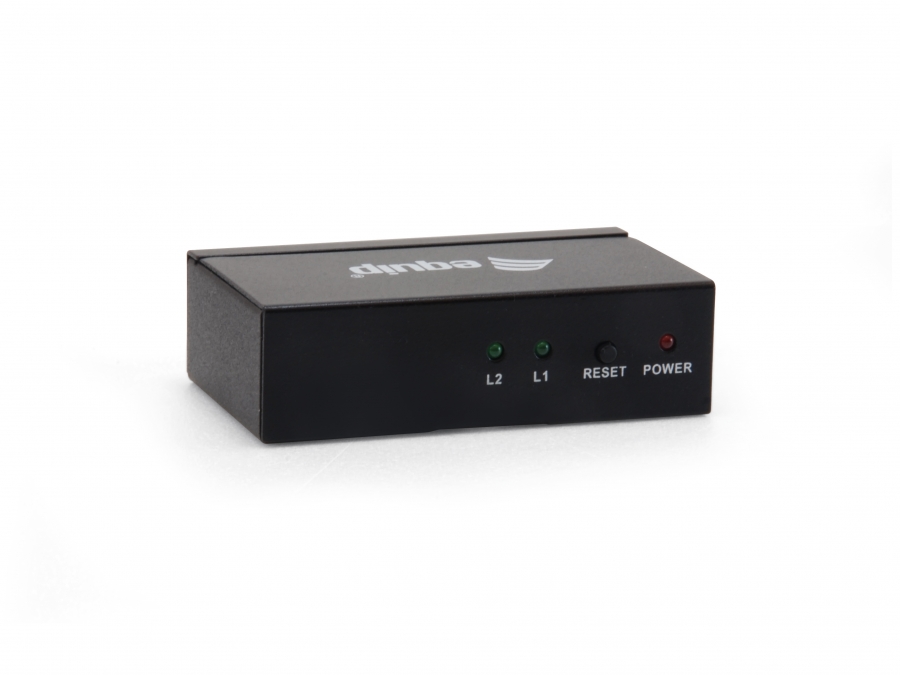

Equip HDMI-Splitter 2-Port Video Signalverteiler

EQUIP

332712

New

The equip® 2-Port HDMI Splitter distributes one video stream to two displays, bringing synchronized high-definition video to conventions, home theaters, shopping areas, and campuses with ease.

Video ports quantity2
Video port typeHDMI
Video out2x HDMI
HDMI version1.4
DC-in jackY
Maximum resolution4096 x 2160 pixels
Product colourBlack
3DY
Bandwidth340 MHz
HDCPY
Supported video modes480i, 480p, 720p, 1080i, 1080p
CertificationCE. FCC. RoHS
AC input voltage5 V
Input current1 A
Power consumption (typical)2.5 W
Dimensions (WxDxH)49 x 84 x 20 mm
Weight300 g
Package width121 mm
Package depth101 mm
Package height65 mm
Package weight250 g
ManualY
AC adapter includedY
Harmonized System (HS) code85176990

Videoswitches / Videoselectors
