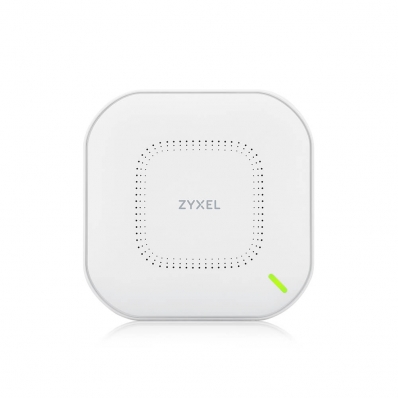

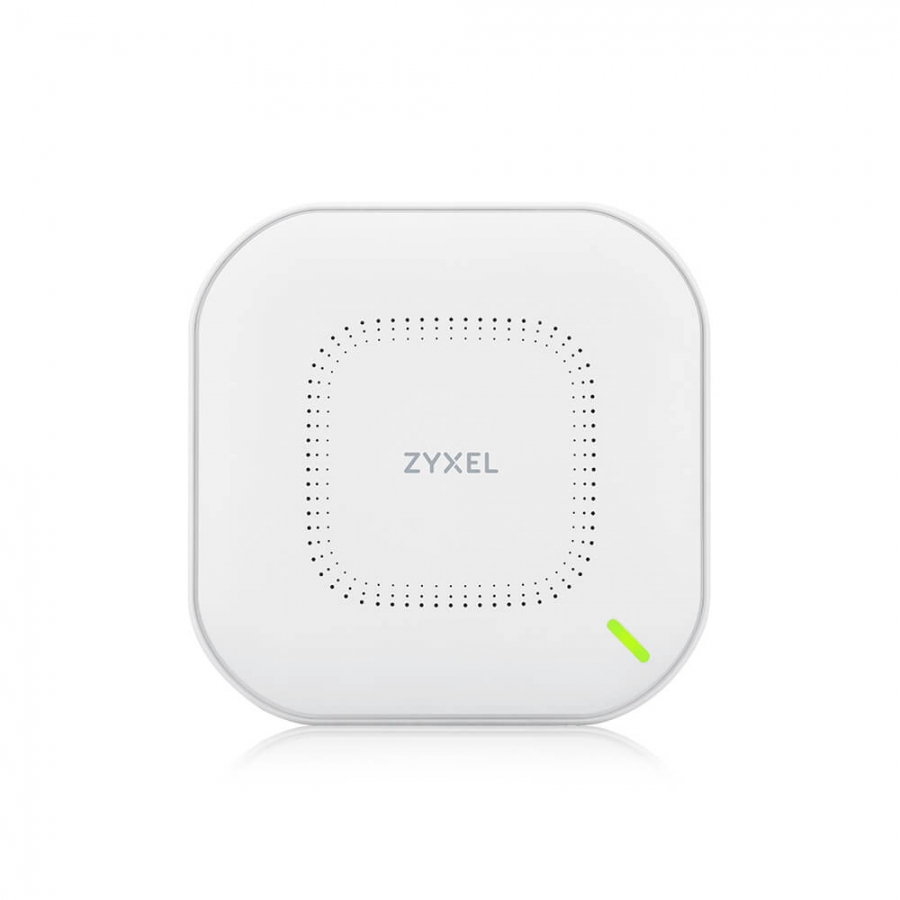

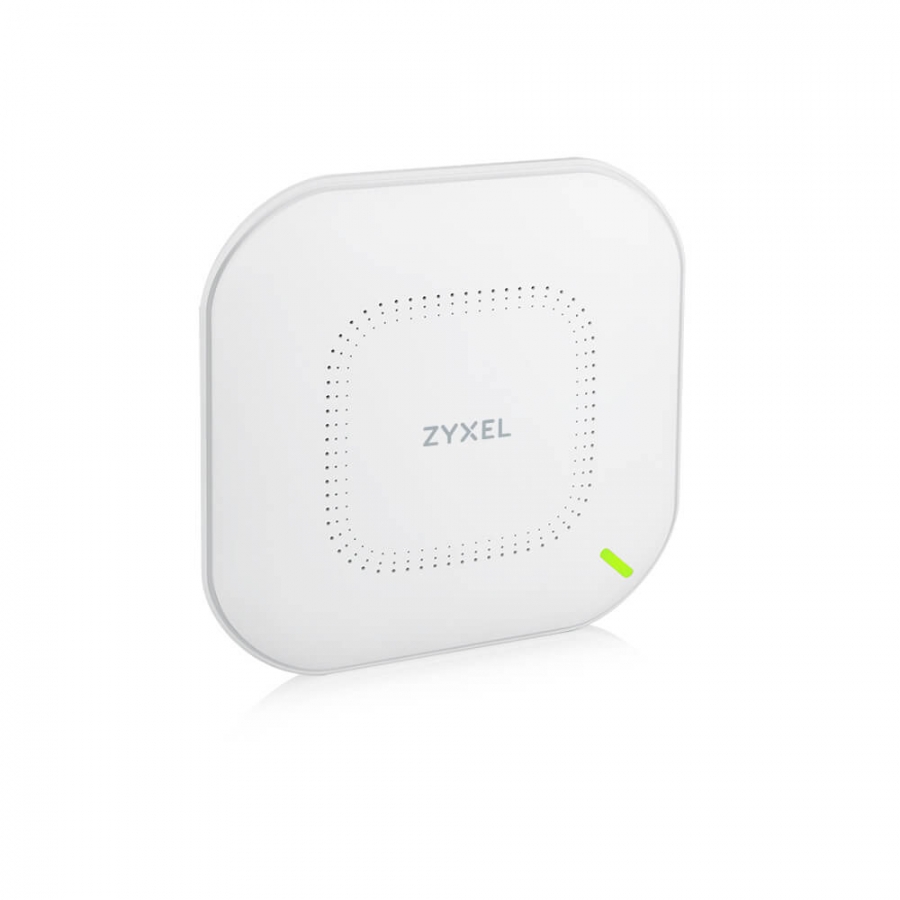

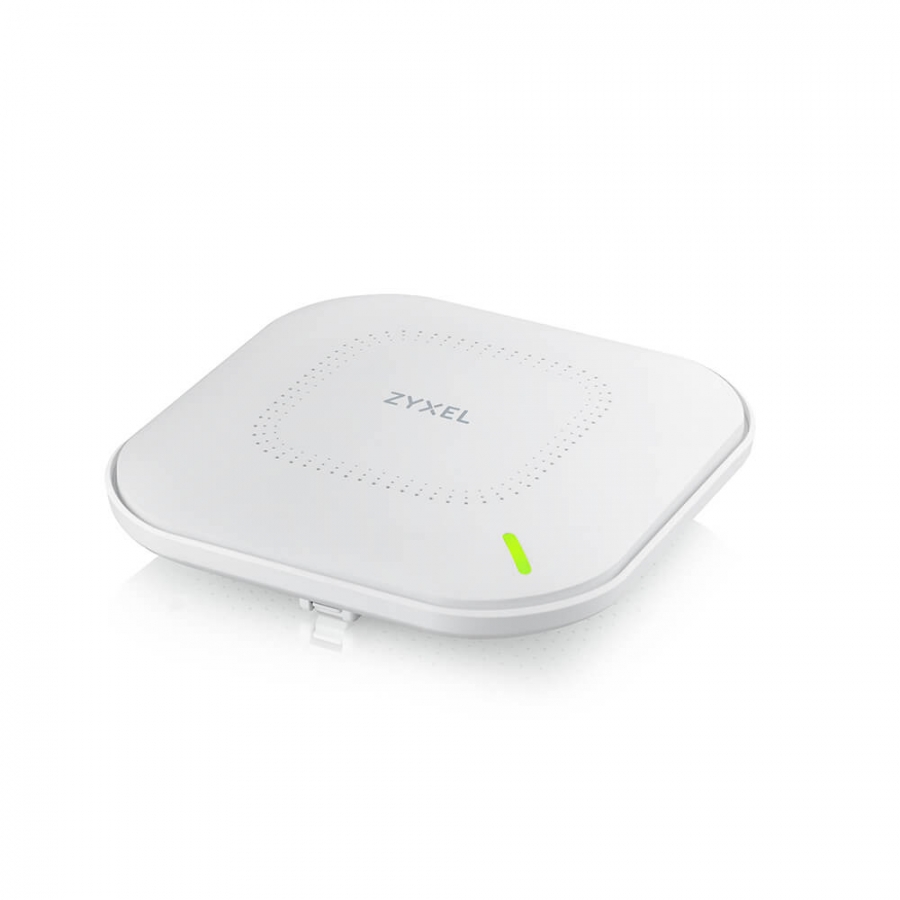

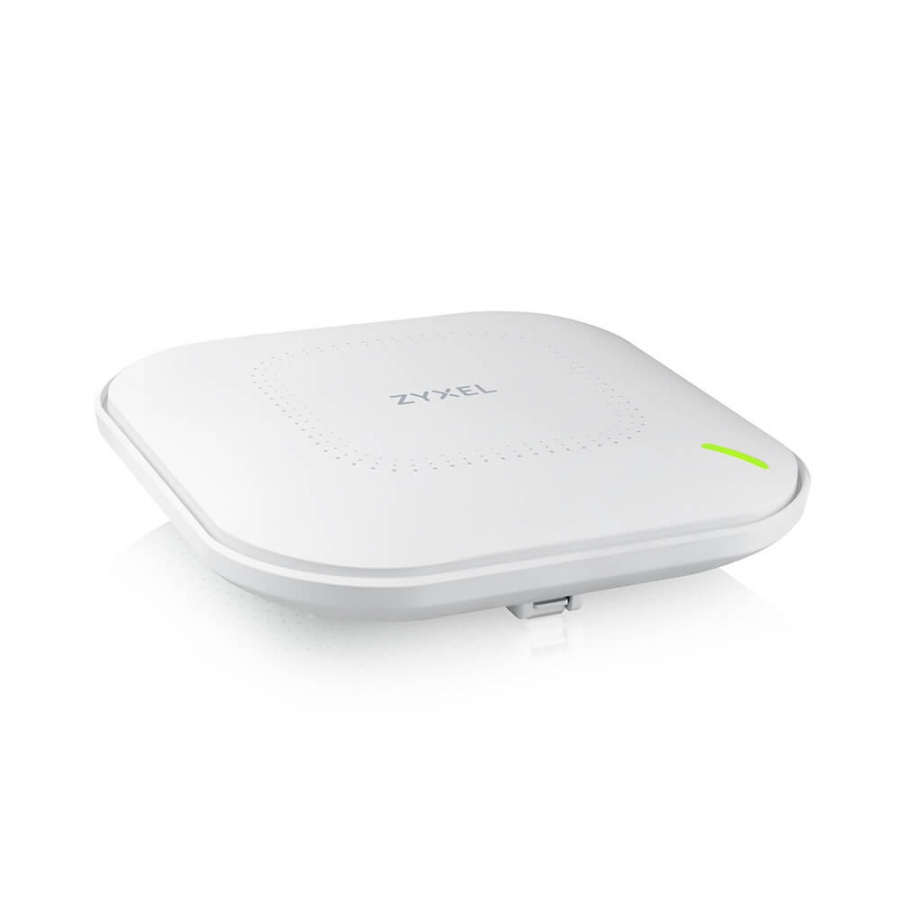

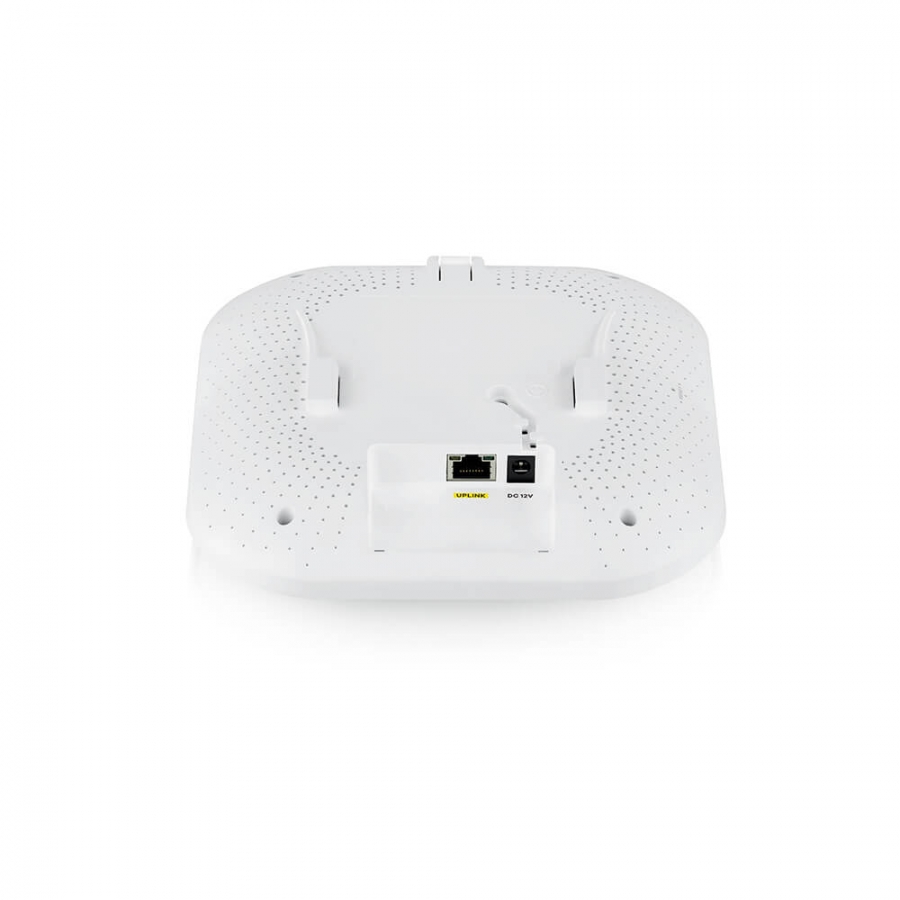

Zyxel NWA110AX WiFi 6 Access Point 802.11ax PoE+

ZYXEL

NWA110AX-EU0102F

New

WiFi 6, Wait No More NWA110AX The Best Deal of 11ax Access PointTrue WiFi 6 The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products.Simpler upgrade path The NWA110AX has been designed to be highly efficient in PoE budget, allowing for an easy upgrade path for those wishing to experience all that WiFi 6 has to offer without the need to upgrade existing PoE+ switchesManage it your way! As it comes with support for NebulaFlex, Zyxel’s scalable, cloud-based management system, the NWA110AX can be managed via NCC (Nebula control Center) or simply operate alone (controller less). You can choose the way that is best suited to your needs.

2.4 GHzY
5 GHzY
Maximum data transfer rate1000 Mbit/s
Maximum data transfer rate (2.4 GHz)575 Mbit/s
Maximum data transfer rate (5 GHz)1200 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.412 - 2.472, 5.470 - 5.725 GHz
Bandwidth0.08 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology10/100/1000Base-T(X)
Automatic channel selectionY
Automatic channel scanningY
MIMOY
MIMO typeMulti User MIMO
Wi-Fi Multimedia (WMM)/(WME)Y
Fast roamingY
VLAN supportY
Virtual LAN featuresSSID-based VLAN assignment
Band steeringY
Transmitting power22 dBmW
Receiver sensitivityMin. Rx sensitivity up to -101 dBm
Security algorithmsWPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA3
Routing protocolsIP
IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL)
Web-based managementY
Command-line interface (CLI)Y
Ethernet LAN (RJ-45) ports1
Power over Ethernet (PoE)Y
AC input voltage5 - 12 V
Input current1.5 A
Power consumption (typical)17 W
PlacementCeiling, Table, Wall
Product colourWhite
On/off switchY
Reset buttonY
WPS push buttonY
LED indicatorsY
CertificationFCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 Safety Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1
Antenna typeInternal
Antenna featuresIntegrated antenna
Antennas quantity2
Antenna gain level (max)6 dBi
PolarizationDual polarization
Width180 mm
Depth180 mm
Height39 mm
Weight453 g
Package width229 mm
Package depth216 mm
Package height64 mm
Package weight770 g
Number of products included1 pc(s)
AC adapter includedY
Mounting kitY
Quick start guideY
Operating relative humidity (H-H)10 - 95%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-30 - 70 °C
Storage relative humidity (H-H)10 - 90%
Harmonized System (HS) code85176990
