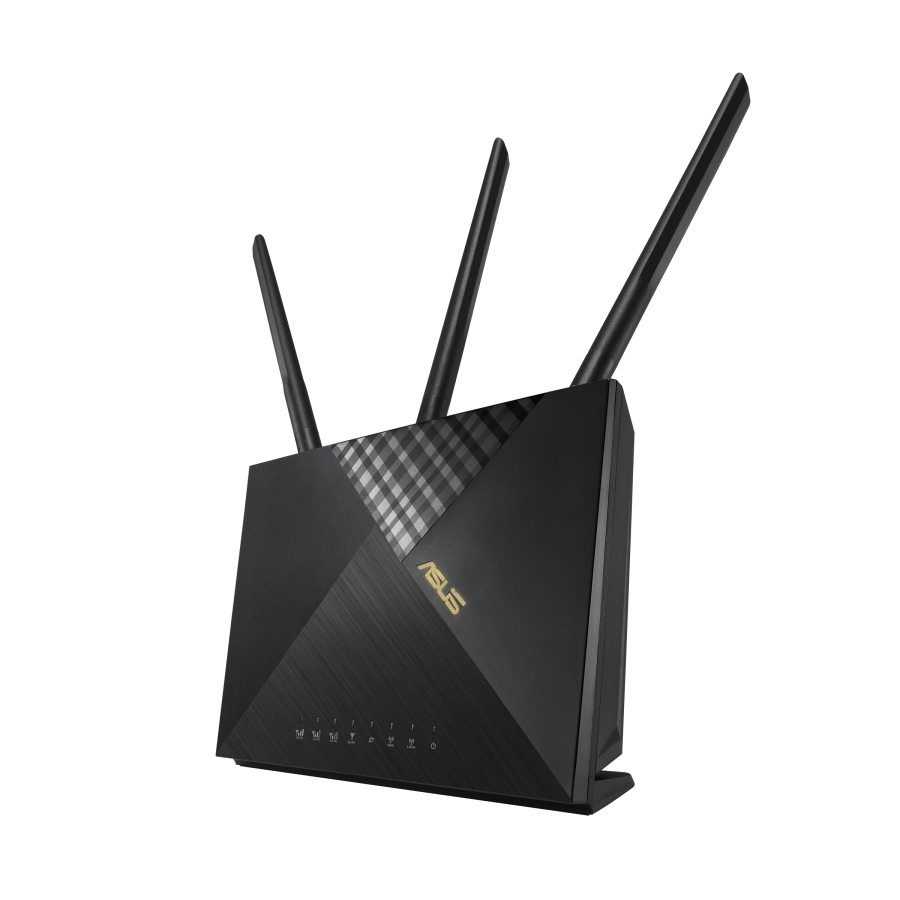

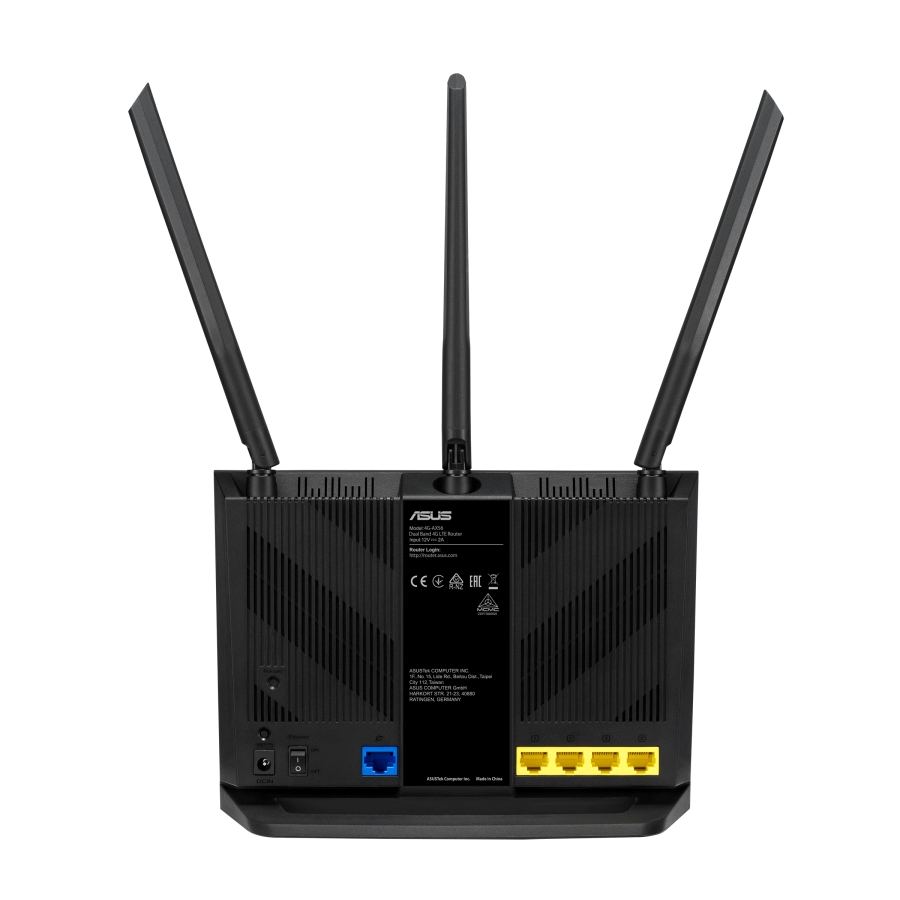

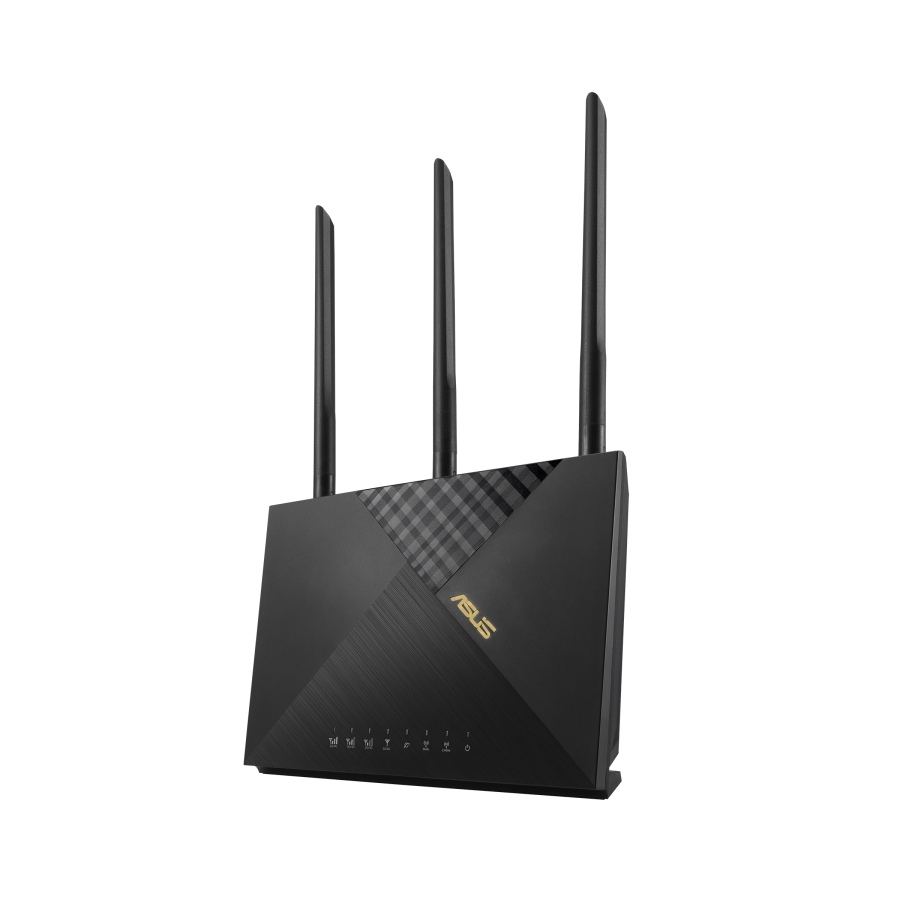

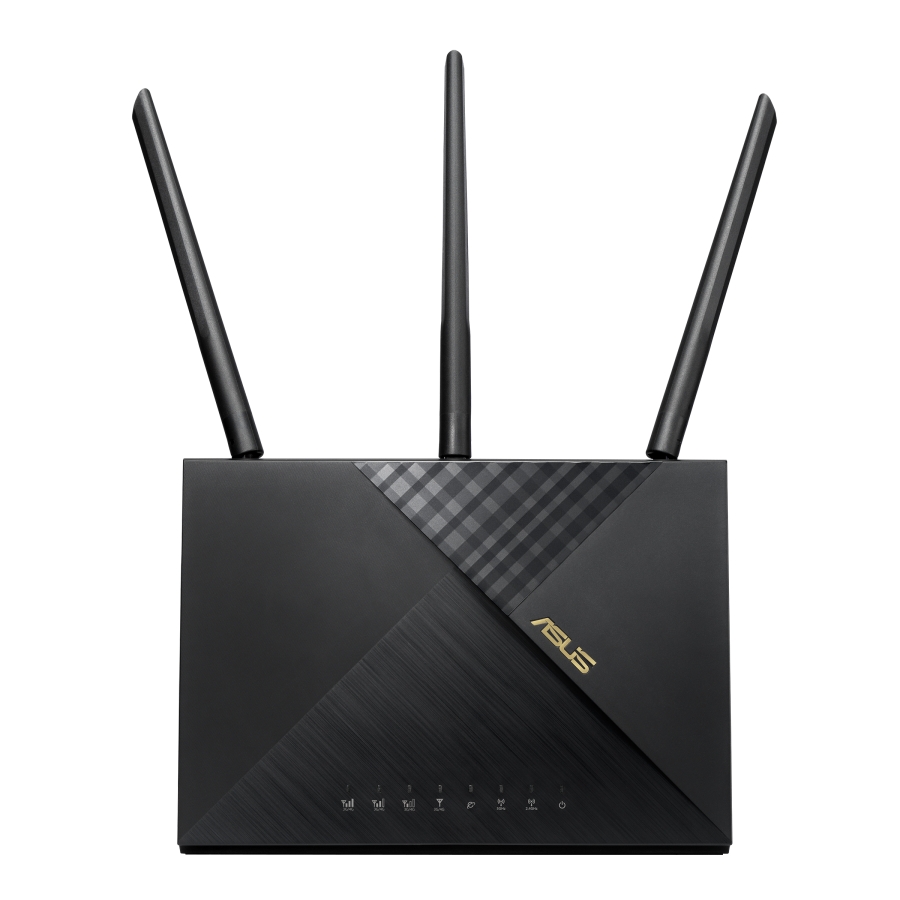

ASUS WL-Router 4G-AX56 AX1800 Cat.6 LTE-Router

ASUS

90IG06G0-MO3110

New

Get Your Home Ready for WiFi 6 (802.11ax) The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current WiFi standard. The latest WiFi 6 standard provides future-proof technologies, higher network efficiency, faster WiFi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users. *It requires WiFi 6-compatible devices to enjoy the benefits brought by WiFi 6 WiFi standard.Next-Gen WiFi Speed ASUS 4G-AX56 is a 2x2 dual-band WiFi 6 LTE Modem Router that provides 80MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574Mbps on the 2.4GHz band and 1201Mbps on the 5GHz band — 4G-AX56 is 1.5X faster than WiFi 5 2x2 dual-band LTE Modem Router1.Built for Multi-device Households With a revolutionary combination of OFDMA and MU-MIMO technology, WiFi 6 technology provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation WiFi 5 can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the WiFi 6 standard divides each channel into small sub-channels, allowing signals from multiple devices* to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive WiFi experience.Better Battery Life for Your Devices Target Wake Time (TWT) allows 4G-AX56 to schedule designated intervals for devices to transmit data. This allows them to sleep when there is no need to wait for a router signal, reducing power consumption by up to 7X for significantly improved battery life*.WiFi that Goes Farther With the latest WiF6 WiFi standard featuring OFDMA technology, 4G-AX56 provides increased WiFi signal range and better coverage by dividing each channel into smaller sub-channels. These sub-channels have a smaller bandwidth that enables them to travel up to 80% farther2, resulting in a better WiFi connection throughout your home*.The true wireless network where you need it 4G-AX56 offers unparalleled convenience of use. Long-term tests guarantee wide compatibility and reliability. Just insert a Nano SIM card and enjoy the convenience of 3G/4G mobile broadband connection anywhere for home and SOHO with less mess of cable.Super-fast mobile broadband 4G-AX56 features the latest LTE Category 6 mobile broadband, which combines two cellular bands to give you internet download speeds of up to 300Mbps — 2X faster than LTE Category 4, and 7X faster than 3G (HSPA+) — so you can share even the biggest files and stream 4K UHD video with ease.Protection for your Home Network All your family members, young or old, are exposed to the dangers of internet every single moment they're online. 4G-AX56 includes AiProtection powered by Trend Micro™ with automatic, regularly updated security signatures to protect your devices and personal data from internet threats.Connectivity Options 4G-AX56 has one Gigabit WAN port and four Gigabit LAN ports. Smart TV, game consoles, NAS storage devices, backup internet and more can now have their own dedicated ports, making 4G-AX56 your solid digital home hub.

Ethernet WANY
DSL WANN
SIM card slotY
3G/4G USB modem compatibilityY
WAN connection typeRJ-45
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 6 (802.11ax)
WLAN data transfer rate (max)1201 Mbit/s
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)54 Mbit/s
WLAN data transfer rate (second band)11 Mbit/s
WLAN data transfer rate (third band)54 Mbit/s
Ethernet LANY
Ethernet LAN interface typeGigabit Ethernet
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwardingY
Port triggeringN
Dynamic DNS (DDNS)Y
SSID-based VLAN assignmentY
Built-in FTP serverN
VPN supportVPN Client L2PT VPN Client OVPN VPN Client PPTP VPN Server OVPN VPN Server PPTP
Mobile network generation4G
3GY
4GY
5GN
3G standardsUMTS
4G standardLTE-FDD
UMTS bands supported850,900,1800,2100 MHz
4G bands supported700,800,850,900,1800,2100,2300,2500,2600 MHz
SIM card typeNanoSIM
Ethernet LAN (RJ-45) ports5
USB portN
DC-in jackY
Bandwidth controlY
Quality of Service (QoS) supportY
Wake-on-LAN readyY
Reset buttonY
WPS push buttonY
MU-MIMO technologyY
Security algorithmsIPSec, SIPS
FirewallY
Guest accessY
Parental controlY
DMZ supportY
Network address translation (NAT)Y
NAT functionalityPPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay
DHCP serverY
Product typeTabletop router
Product colourBlack
Housing materialPlastic
Indication lightY
LED indicatorsLAN, Power, WAN
On/off switchY
Built-in displayN
AC adapter includedY
Warranty cardY
Quick start guideY
Antenna designInternal & external
Antennas quantity4
Built-in processorN
Internal memory512 MB
Flash memory128 MB
Power source typeDC
Weight753 g
Harmonized System (HS) code85176990
