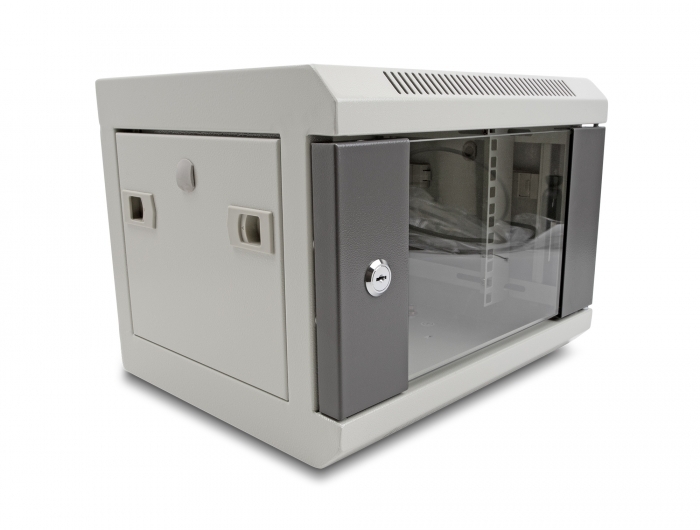

Delock 10″ Network Cabinet with glass door 4U grey

DELOCK

43416

Jauns

This network cabinet by Delock can be used for stand or wall mounting and is ideal for the installation of 10″ devices e.g. patch panels.

Easy access to the devices

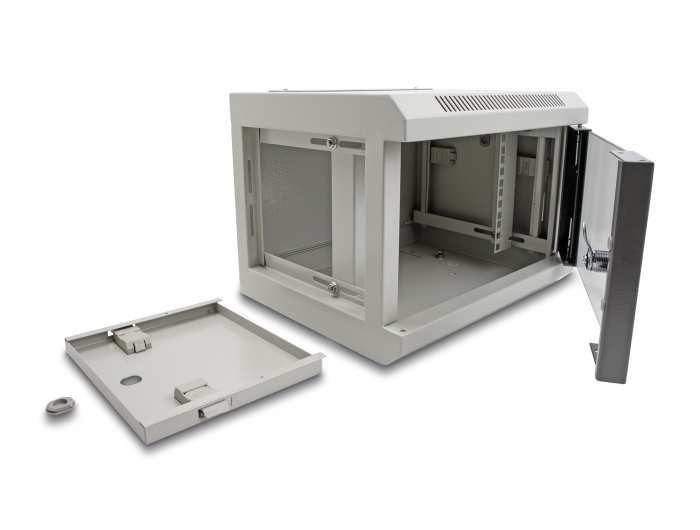

The removable side panels allow an easy and quick access to the installed devices in the rear part of the network cabinet.

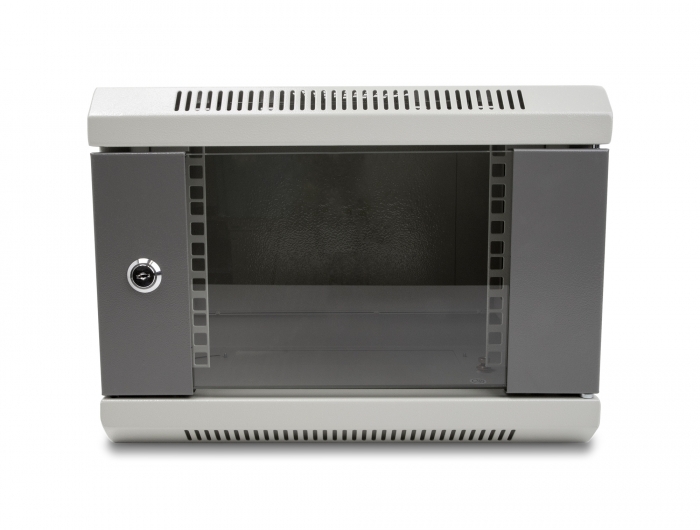

Front door lockable with viewing window
The network cabinet can be locked to ensure greater security. The viewing window allows a view of the inside of the network cabinet at all times.

Optimal ventilation system
The integrated ventilation slots on the upper cover plate ensure optimal ventilation of the installed devices.
Specification:
• 10″ network cabinet for stand or wall mounting, 4U
• 2 profile rails on the front
• Door hinge can be selected variably (left or right)
• Cable bushing possible in floor and at the top, including cover caps
• Front door with safety glass, lockable
• Removable side panels
• Ventilation slots for ventilation
• Mounting depth: max. 240 mm
• Load capacity: max. 40 kg
• Weight: ca. 6 kg
• Colour: grey
• Material: metal

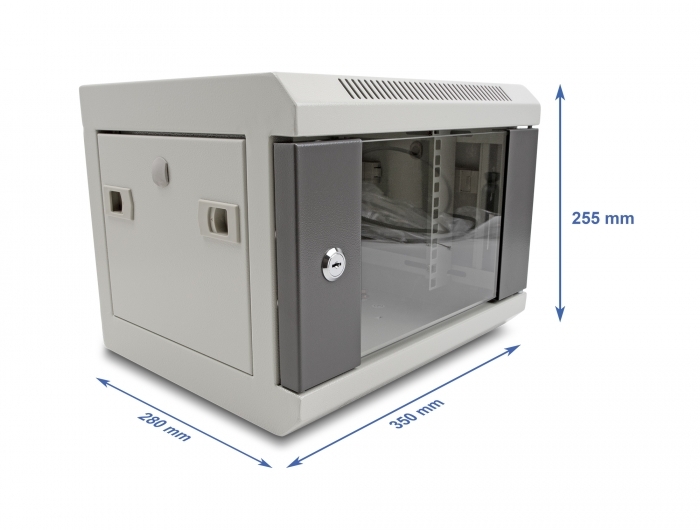

• Dimensions (LxWxH): ca. 350 x 280 x 255 mm

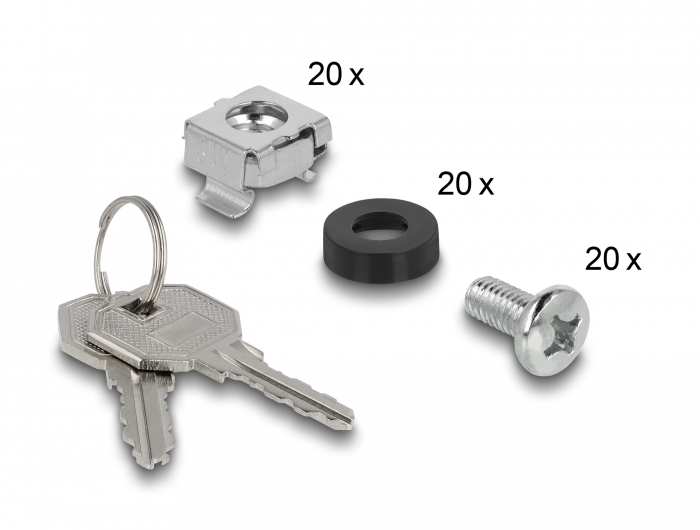

Package content:
• Network cabinet
• 2 x keys
• 20 x screw M6
• 20 x washer
• 20 x caged nut
Data sheet:
http://www.delock.de/produkt/43416/pdf.html?sprache=en
