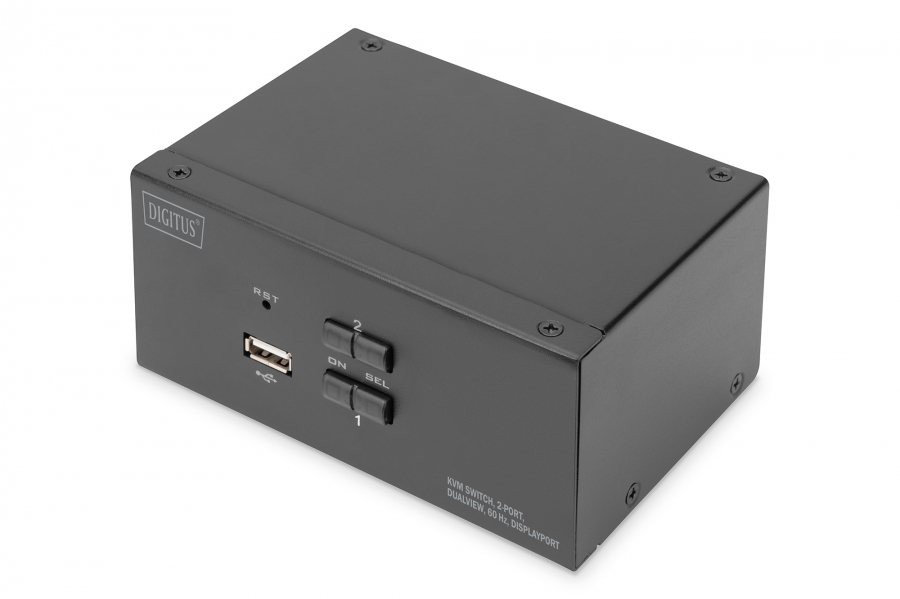

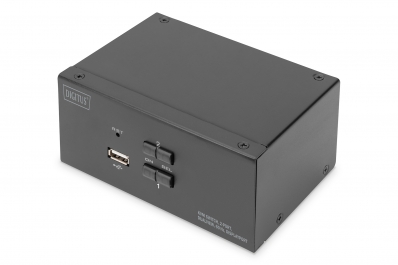

Digitus KVM Switch, 2-Port, Dual Display, 4K, DisplayPort

Digitus

DS-12862

Jauns

2 Port Displayport DualView 60 Hz 4K@60fp, Multiplatform support

Operate 2 PCs with dual display using a USB keyboard and mouse combination – switch between two computers by pressing a button

Use two monitors, a mouse and a keyboard to operate 2 computers with dual display
Supports a maximum UHD resolution of 4K / 60 Hz
USB ports for mouse and keyboard
Audio connections for microphone/speaker, supports Dolby True HD and DTS HD Master Audio
Integrated USB hub with USB A port for additional peripheral equipment
Switching between the PCs via switch on the KVM switch or hot key on the keyboard

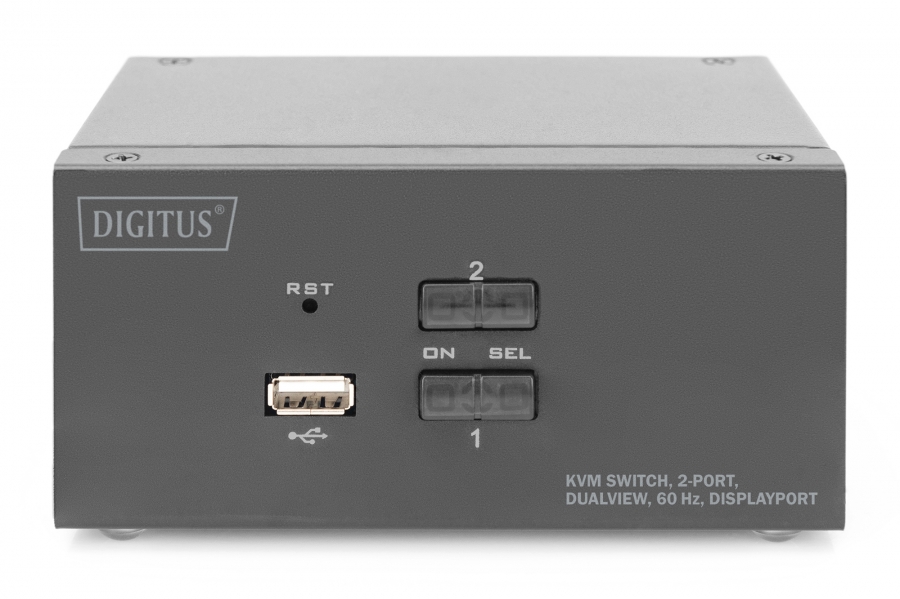

LED status and functional displays on the front side
The KVM switch is supplied with power via the USB connection through a connected computer
Real Plug and Play - no software or driver installation required (BIOS hardware connection)
Sturdy metal housing

With the DIGITUS® 2-Port KVM Switch for dual displays, you can operate two 4k-compatible PCs using a single USB keyboard and mouse combination. By pressing a button or hot key, you can switch comfortably between the two PCs and are spared the trouble of replugging all cables. Output on up to two monitors is provided via two DisplayPort® outputs on the rear side. You can also switch between the audio signals for the microphone and speaker. In addition, a USB port is included on the front side for use with other peripheral devices like USB sticks or external hard drives on both PCs. The connected peripheral devices are each assigned to the active PC. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing.

UHD resolution: 4K / 60 Hz (3840 x 2160p) / Subsampling: YUV 4:4:4

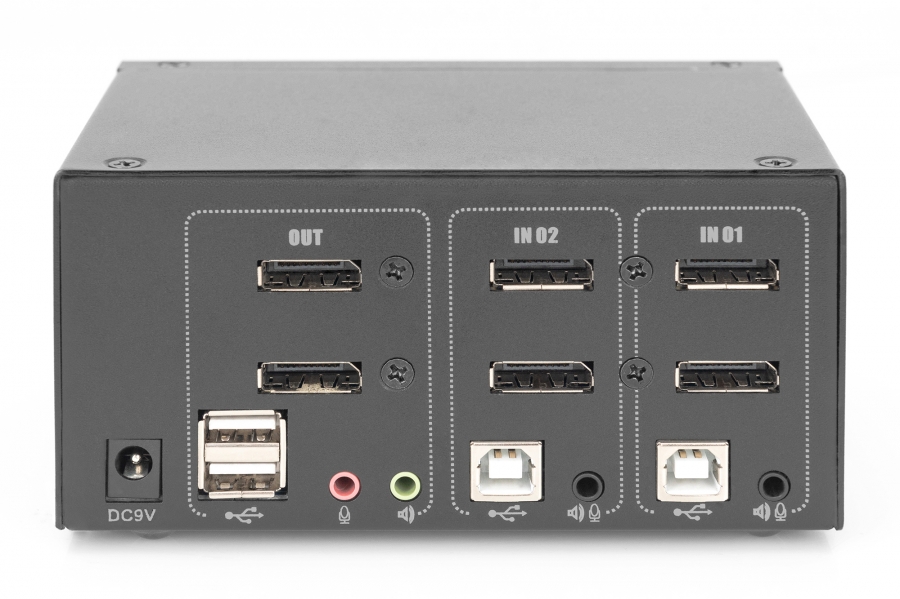

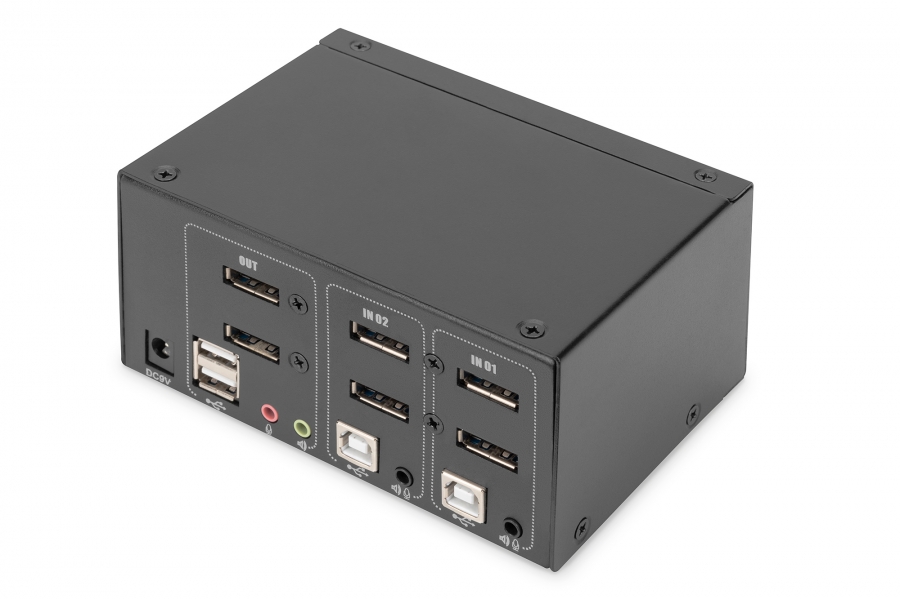

Inputs: 4 x DP® inputs (2x2), 2 x USB B, 2 x Audio combo socket 3.5 mm jack (microphone, speaker)
Outputs (console): 2 x DP®, 2 x USB A (mouse, keyboard), 2 x Stereo audio 3.5 m jack (microphone, speaker)
Additional connection on the front side: 1 x USB A for additional peripheral equipment such as printers or USB sticks
USB specifications: USB 2.0 compliant (full speed)
Supported audio formats: Dolby True HD, DTS HD Master Audio
Switching between the PCs: Switch on the front side or hot keys
Status LED on front side shows current configuration
The device is platform-independent, suitable for all operating systems
Operating temperature: 0 °C to 80 °C
Storage temperature: -20 °C to +60 °C
Operating humidity: 0% - 80% RH (non-condensing)
Case material: Metal
Power supply device: USB power supply or optional 9 V DC power adapter (300 mA, 5.5x2.1 mm plug)
Dimensions: 13.2 x 9.2 x 6.6 cm (WxDxH)
Weight: 580 g

Package content:
1 x KVM Switch, 2-Port, Dual Display, 4K, DisplayPort
2 x DisplayPort® cable
2 x KVM cable (DisplayPort, USB, Audio)
1 x Instructions

Platums(cm)21
Grums(cm)21
Augstums(cm)12
Svars(kg)1.82
Tilpums(cm3)5292
Izcelsmes valstsCN
