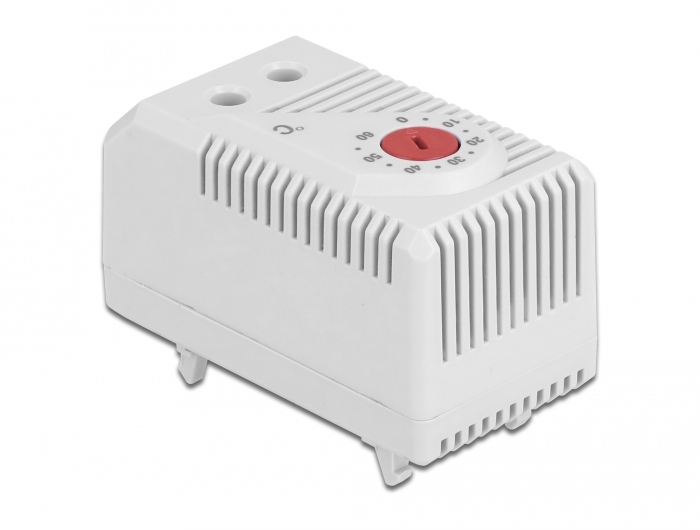

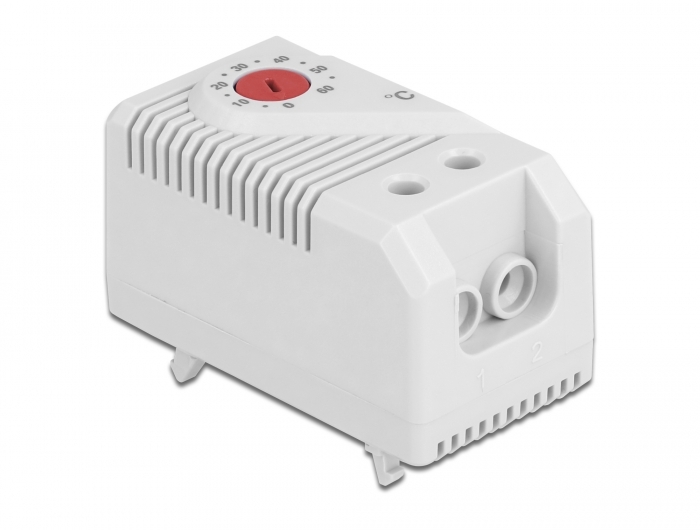

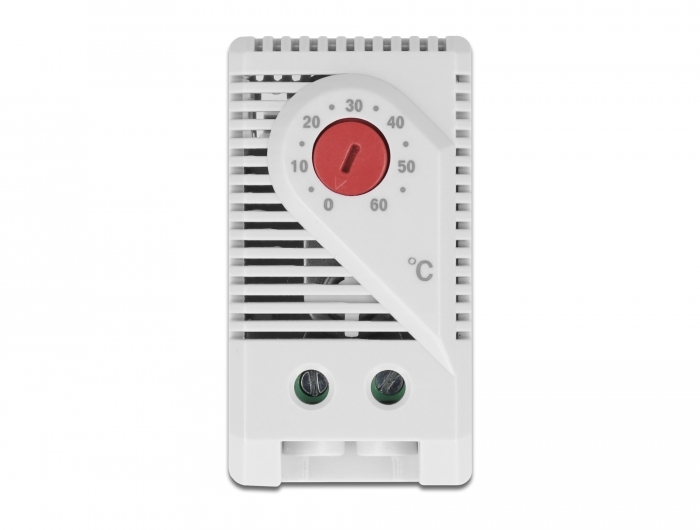

Delock Thermostat with normally closed contact for DIN rail

Kods 66824

Condition: Jauns

Vairāk informācijas

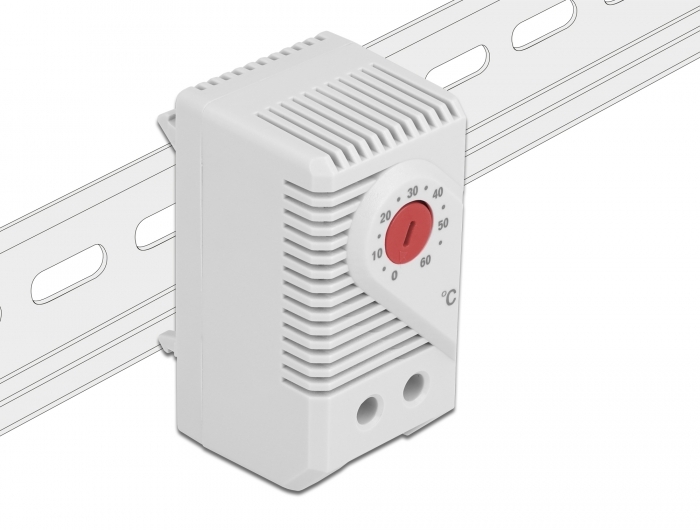

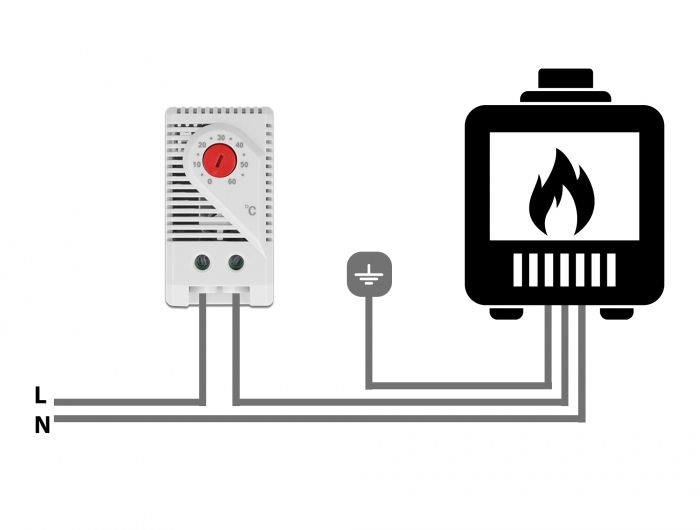

This thermostat by Delock can be used to control heating equipment or to switch signal devices when the temperature is exceeded. The contact opens when the temperature rises. Due to the integrated clips on the back, it can be mounted on a 35 mm DIN rail in a control cabinet.

Specification:
• Connector: 2 pin terminal for 2.5 mm²
• Switching function: normally closed contact
• Switching capacity: max. AC 250 V, 10 (2) A / 120 VAC, 15 (2) A DC 30 W
• Switching temperature difference: 7 K (±4 K tolerance)
• Temperature setting range: 0 °C ~ 60 °C
• Sensor: thermobimetal
• DIN rail mounting: 35 mm
• Protection class: IP20
• Lifetime: > 100.000 cycles
• Fire-resistance rating: 94V-0
• Operating temperature: -45 °C ~ 80 °C
• Colour:
housing: grey
temperature regulator: red
• Housing material: plastic
• Dimensions (LxWxH): ca. 60 x 43 x 33 mm

Package content:
• Thermostat
• User manual

Data sheet:
http://www.delock.de/produkt/66824/pdf.html?sprache=en
