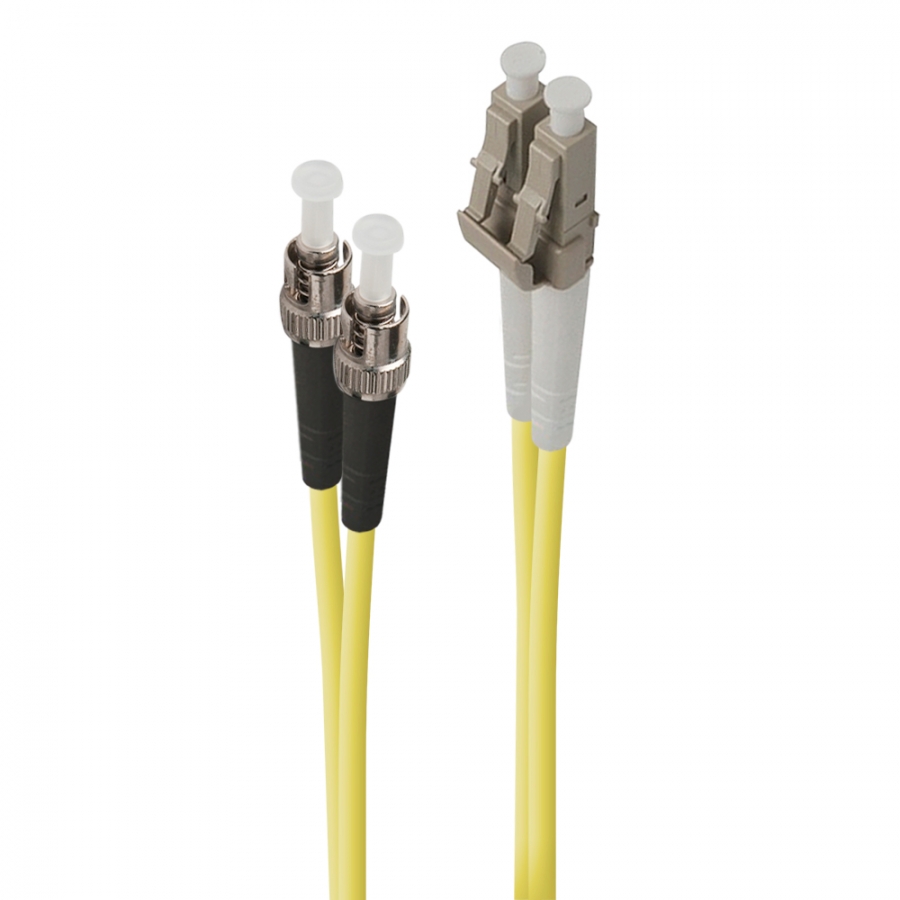

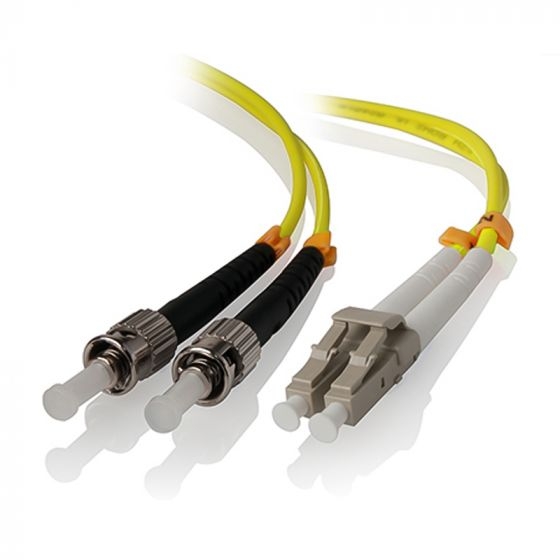

Alogic Glasfaserkabel LC-ST Single Mode Duplex LSZH OS2 2m

ALOGIC

LCST-02-OS2

Jauns

The Single mode OS2 cables are designed to support very high transfer speed and have universal loose tube construction, the ALOGIC cables are compliant to fibre type B1.3 in IEC 60793-2-50 G652d capable of supporting up to 10gigabit applications over very long distances.

Cable length2 m
Fibre optic typeOS2
Connector 1LC
Connector 2ST
Connector 1 genderMale
Connector 2 genderMale
Product colourYellow
Jacket materialLow smoke zero halogen (LSZH)
Full duplex
Core diameter9 µm
Cladding diameter125 µm
Fiber mode structureSingle-mode
Wavelengths supported1300,1550 nm
Ethernet interface type10 Gigabit Ethernet
Data transfer rate10 Gbit/s
Insertion loss0.3 dB
Cable diameter3 mm
Quantity per pack1 pc(s)
Harmonized System (HS) code85447000
Number of optical fibres2

9/125 62.5/125 50/124 MTP
