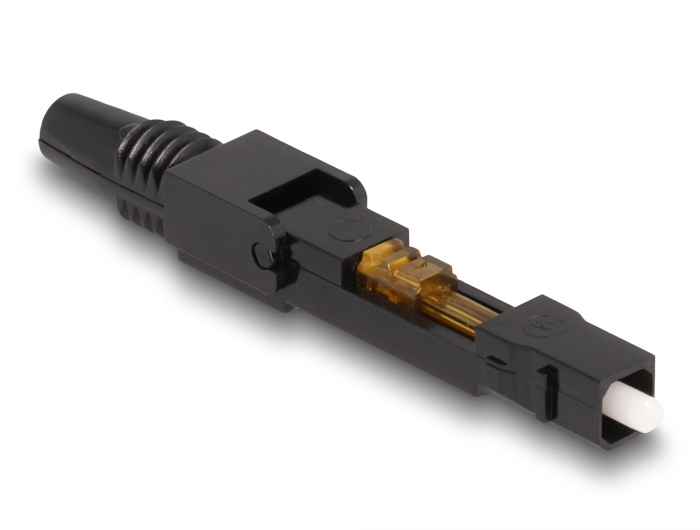

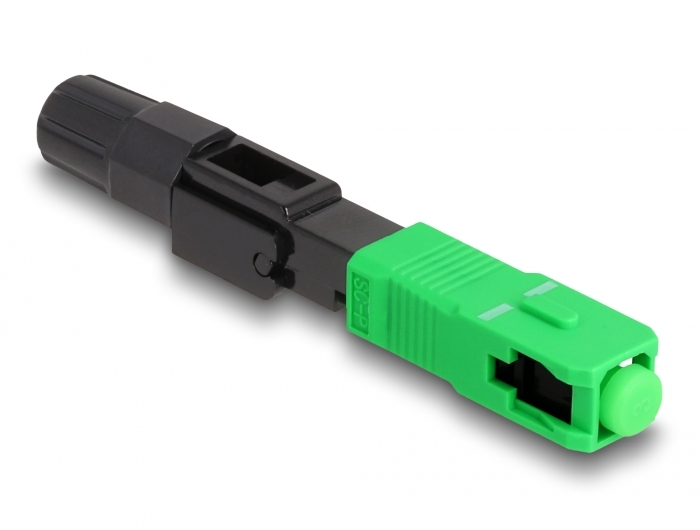

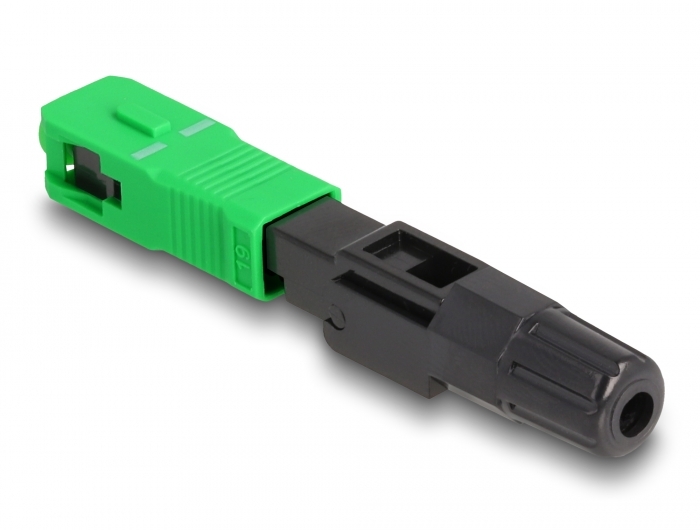

Delock Optical fiber quick connector SC Simplex plug APC field-assembly

DELOCK

87989

Jauns

This quick connector by Delock enables a fast and secure optical fiber connection and is ideal for FTTH, CATV applications. The SC connector cables can be quickly assembled without splicing.
Specification:
• Optical fiber quick connector for FTTH applications
• For single-mode APC fiber
• For cable diameter from 2.0 - 3.0 mm
• Insertion loss < 0.5 dB
• Return loss > 50 - 60 dB
• Ceramic sleeve
• Operating temperature: -40 °C ~ 85 °C
• Material: plastic
• Colour: green / black
• Dimensions (LxWxH): ca. 60.0 x 8.9 x 7.4 mm
Package content:
• Optical fiber quick connector
• User manual
Data sheet:
http://www.delock.de/produkt/87989/pdf.html?sprache=en
