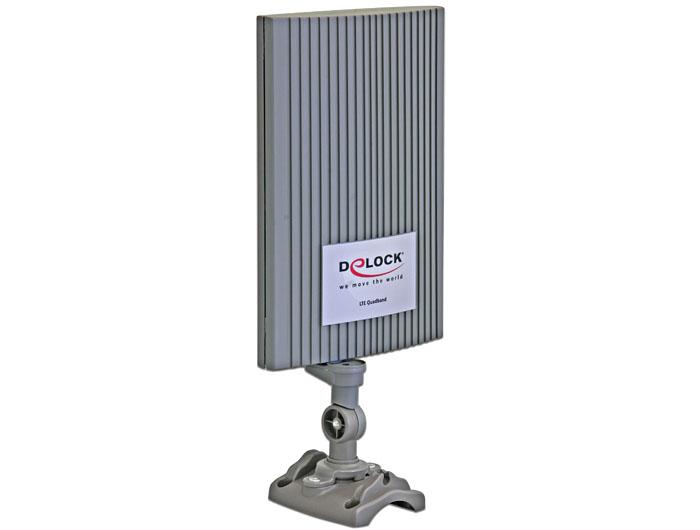

Delock LTE MIMO Antenna SMA Band 13720 2 ~ 4 dBi Omnidirectional Gray Outdoor

DELOCK

88476

Jauns

This LTE MIMO antenna can be installed indoors or outdoors and take advantage of all four bands for LTE. It is completely compatible to UMTS, GSM, Bluetooth, ZigBee and WLAN 2.4 GHz.

More details

Description:

This LTE MIMO antenna can be installed indoors or outdoors and take advantage of all four bands for LTE. It is completely compatible to UMTS, GSM, Bluetooth, ZigBee and WLAN 2.4 GHz.



Specification:
• LTE Band: 20, 1, 3, 7
• Frequency range: 790 - 870 MHz, 1710 - 2690 MHz
• Gain: 2 dBi, 4 dBi
• UMTS/GSM/Bluetooth/ZigBee/WLAN 2,4 GHz
• Polarisation linear vertical
• Impedance: 50 Ohm
• VSWR: 2.5:1
• Connector: 2x SMA plug
• Dimension: 239.4 x 176 x 35 mm
• Cable length: 2x 5 m
• Cable connectors: SMA plug
• Cable typ: CFD-200
• Cable attenuation: 0.55 dB per meter @ 2.4 GHz
• Operating temperature: -10 °C ~ 55 °C
• ABS UV resistant
• Protection class: IP 55

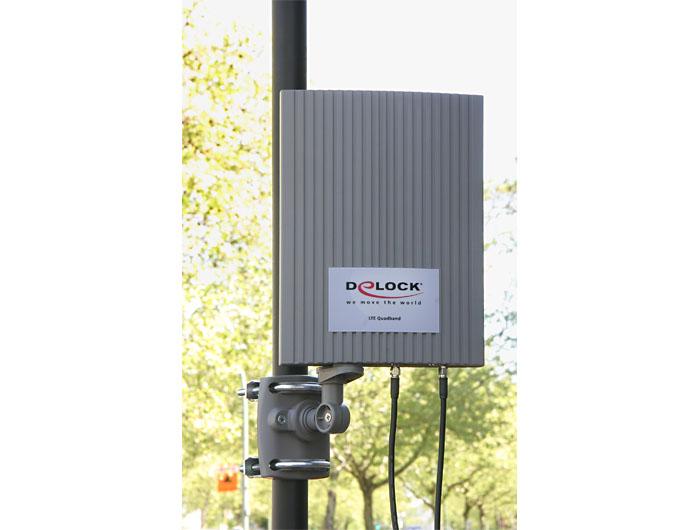

Including wall/pole mounting kit

System requirements:


Package content:
• LTE MIMO antenna

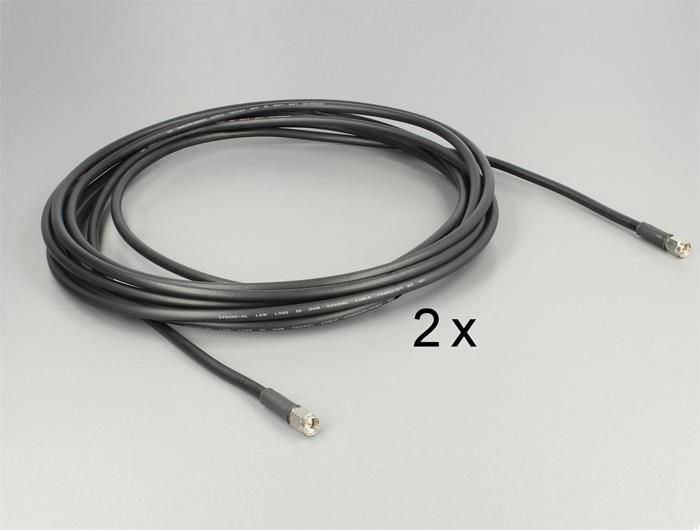

• 2 low loss CFD200 SMA cable

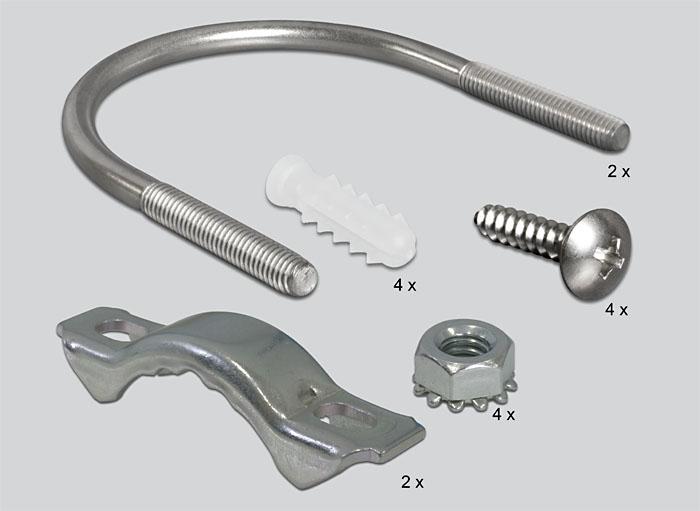

• wall/pole mounting kit
