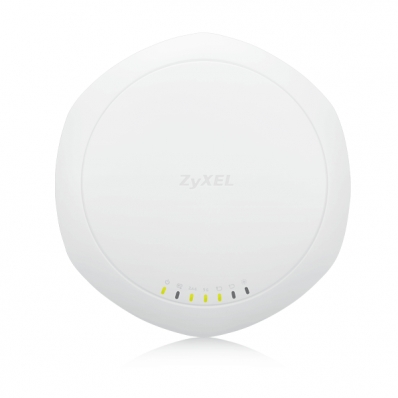

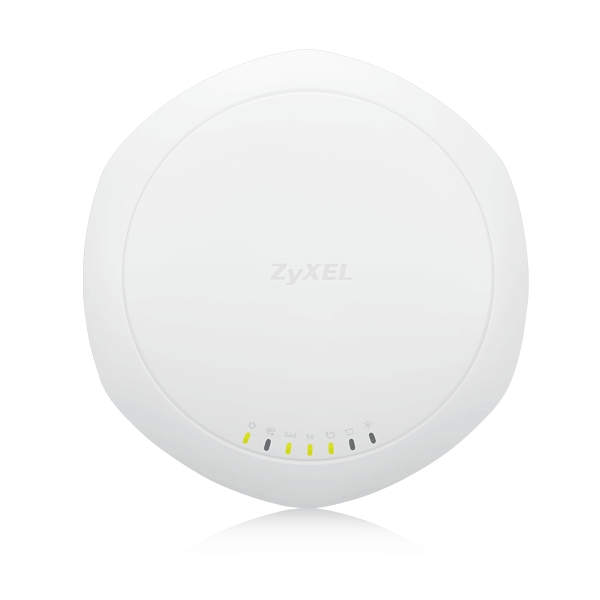

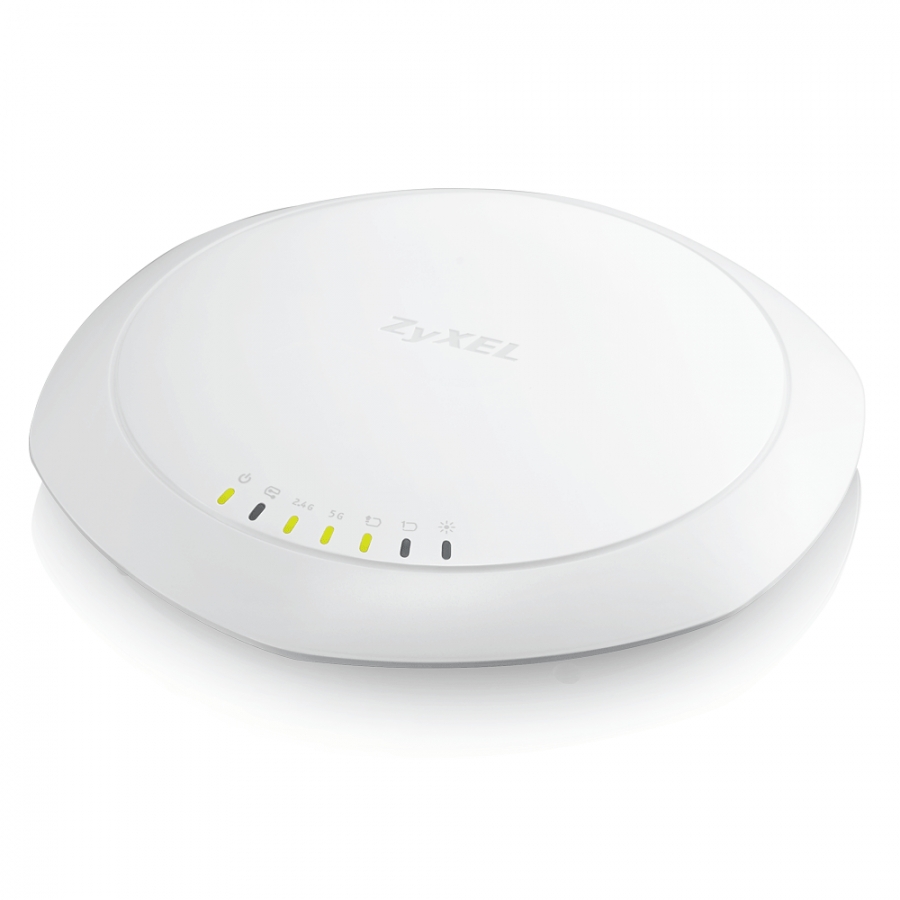

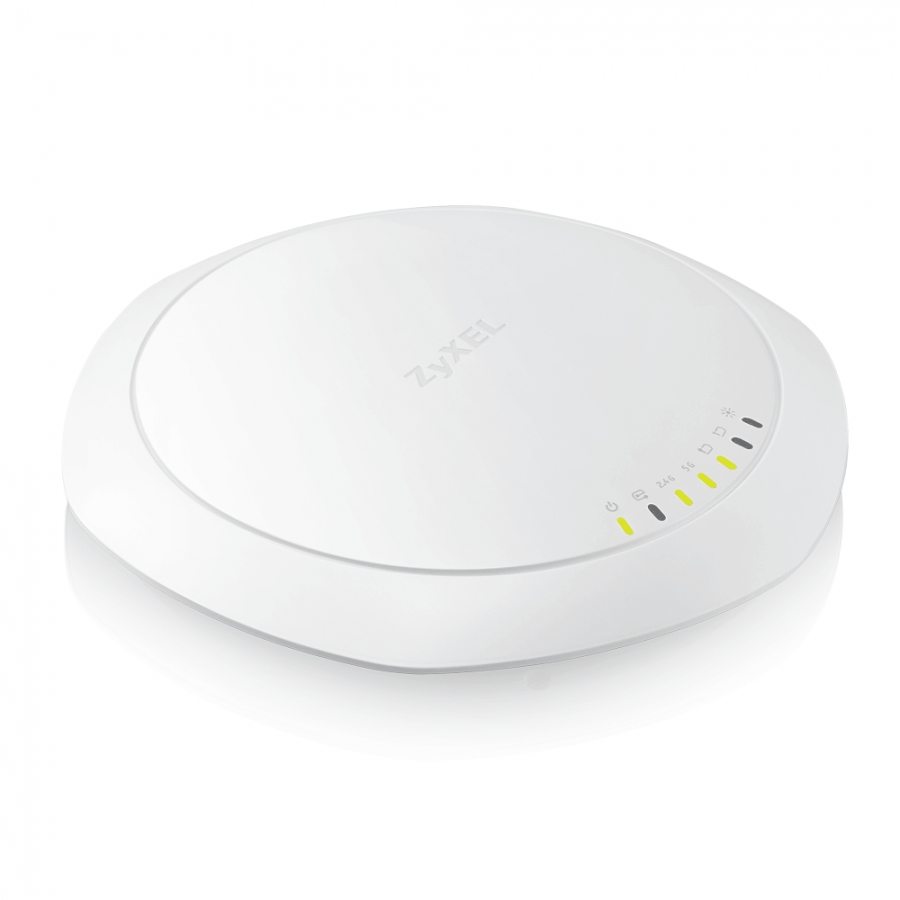

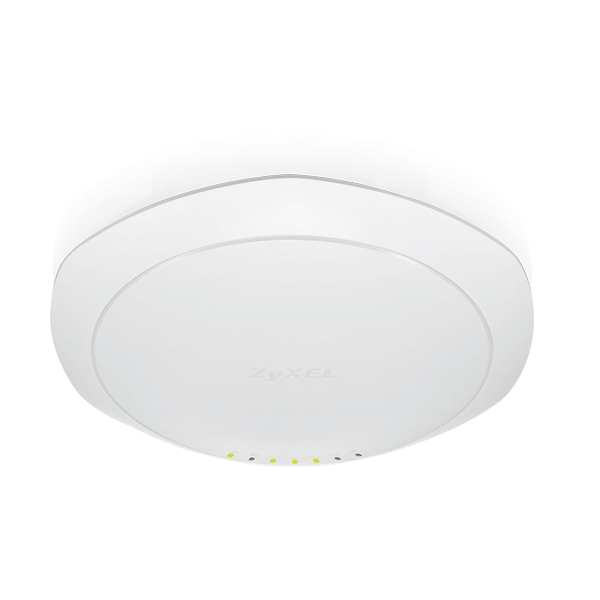

Zyxel WLAN AP NWA1123-AC Pro Standalone 3er Pack

ZYXEL

NWA1123ACPRO-EU0102F

Jauns

Best interior Wi-Fi performance in style Struggling between performance and environment cohesion when deploying business wireless APs is in past. The stylish exterior of NWA1120 series is suitable for any interior that not only outperforms but also blends into the interior better as well prevents equipment theft.Optimize for what you need To create a thoroughly enhanced Wi-Fi experience, NWA1120 series made a big move on optimized antennas and RF design via fine-tune software and innovative hardware. Featuring with DCS and load-balance, NWA1120 series delivers smooth and superior Wi-Fi experience in workplaces.Blending multi-operation flexibility with practical business features NWA1120 series provides repeater/root-AP mode compatibility with Zyxel Unified Pro and Unified APs, that users can extend wireless connectivity via enterprise grade WDS to difficult cabling locations without the bother of troublesome cabling. Also, as an ideal solution, NWA1120 series offers an array of practical features like multiple SSID and solid Wi-Fi security.Setup and forget The refreshed NWA1120 series features streamline controller-less deployment. Out of the box and finish three steps configuration with ZON then NWA1120 series capable of operating autonomously without extra computer or special management tool as well as allowing administrator easy monitor via any SNMP tool in hand, even not a networking expert can handle it easily.

2.4 GHzY
5 GHzY
Maximum data transfer rate1300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3au, IEEE 802.3az, IEEE 802.3u
Channel bandwidth80 MHz
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DPSK, DQPSK, QPSK
Wi-Fi Multimedia (WMM)/(WME)Y
VLAN supportY
Wireless isolationY
Security algorithms802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, SNMP, SSH, WEP, WPA, WPA2-Enterprise, WPA2-PSK
MAC address filteringY
Service Set Identifier (SSID) featuresSSID broadcast on/off
Number of SSID supported16
DHCP clientY
Firmware upgradeableY

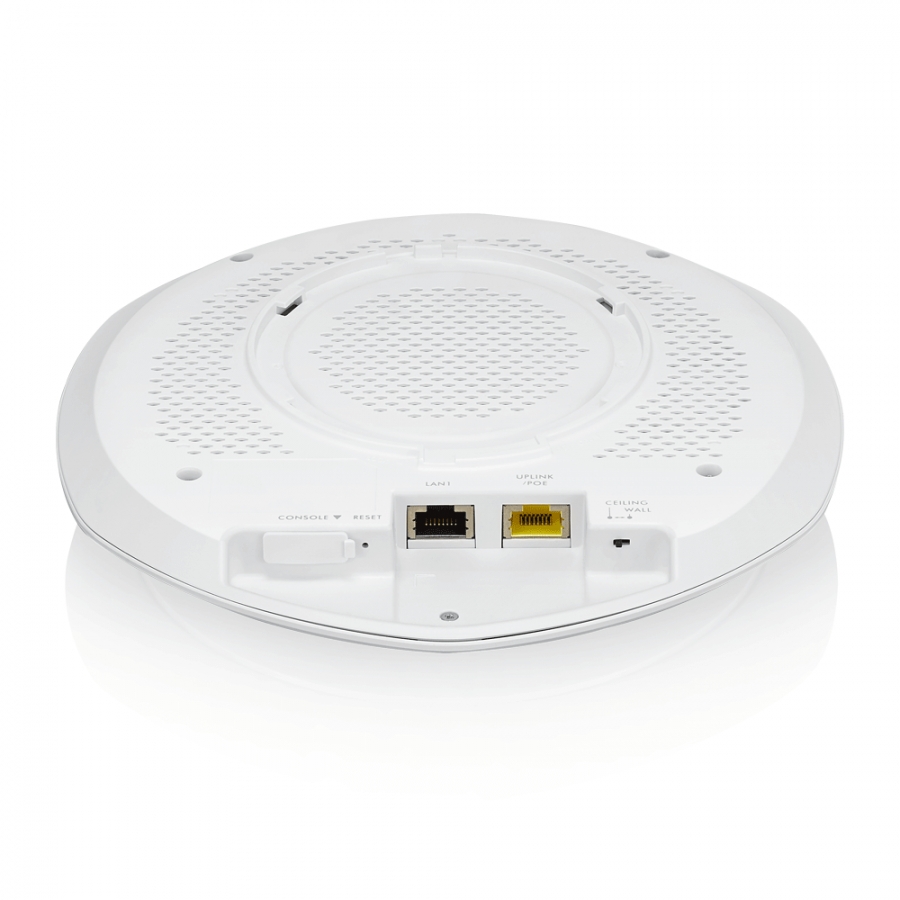

Ethernet LAN (RJ-45) ports2
DC-in jackY
Power over Ethernet (PoE)Y
AC input voltage100 - 240 V
AC input frequency50 Hz
PlacementCeiling, Wall
Product colourWhite
CertificationFCC part 15C, FCC part 15E, ETSI EN 300 328, EN 301 893, LP0002 FCC part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, BSMI CNS13438 EN 60950-1, IEC 60950-1, BSMI CNS14336-1 FCC part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, BSMI CNS13438 EN 60950-1, IEC 60950-1 , BSMI CNS14336-1
InternalN
Antennas quantity3
Antenna gain level (max)5 dBi
Width203.9 mm
Depth191.7 mm
Height34.7 mm
Weight445 g
Package width240 mm
Package depth235 mm
Package height100 mm
Package weight1.21 kg
Number of products included3 pc(s)
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)10 - 90%
Harmonized System (HS) code85176990
