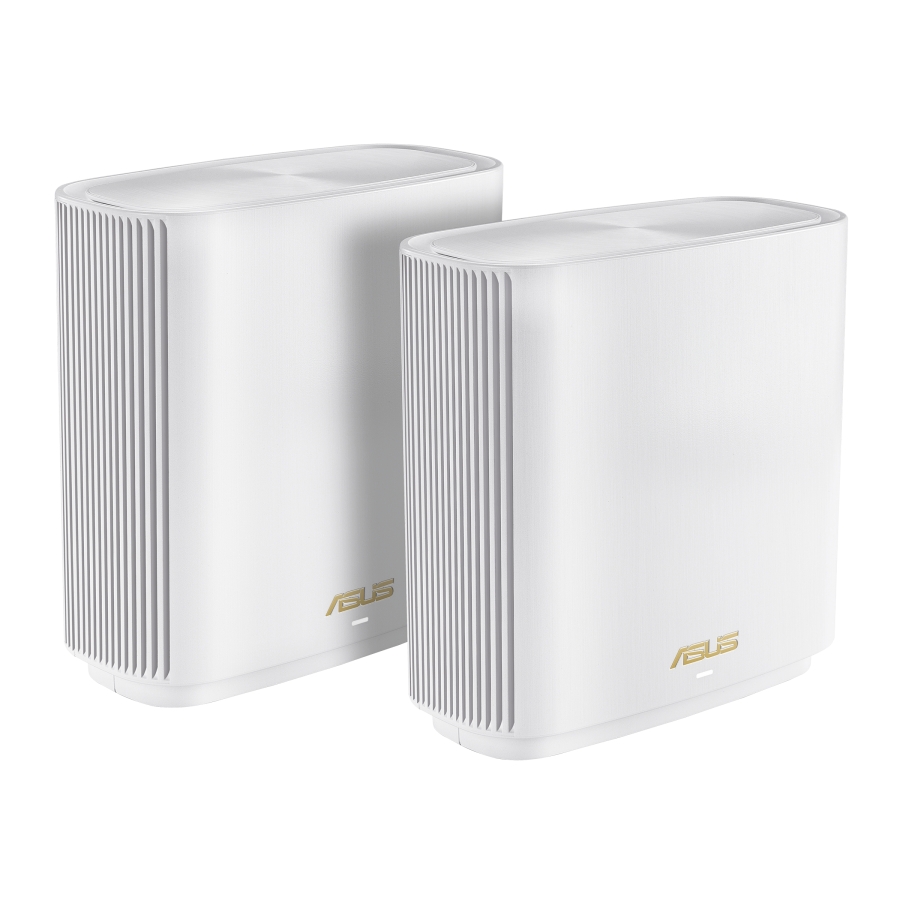

Whole-home Coverage Everywhere. Always Secure.Superior Whole-Home WiFi The ASUS ZenWiFi XT9 mesh system consists of a pair of ASUS AX7800 tri-band WiFi 6 mesh routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections for your streaming videos, gaming and all other smart IoT gadgets.Support 160MHz Channel The ASUS ZenWiFi XT9 WiFi 6 mesh system supports 160MHz bandwidth*, boosting wireless network capacity and speeds. With a total bandwidth of up to 7800Mbps, it is up to 2.6X faster than tri-band AC3000 (WiFi 5) routers**.Expanded UNII-4 Spectrum ASUS ZenWiFi XT9 supports an expanded UNII-4 spectrum*, which features a third and clean 160 MHz channel on the 5 GHz band. This increases mesh backhaul capacity to deliver reliable and high performance for your wireless devices.Wider Coverage The latest ASUS RangeBoost Plus technology, along with the flagship Broadcom WiFi 6 chipset, significantly improves WiFi signal range and overall coverage by up to 38%*, offering expansive coverage in spaces up to 5700 square feet.With ASUS AiMesh technology, it’s easy to add extra network nodes for improved WiFi coverage or new features. Simply add any AiMesh-compatible ASUS router or repeater to expand your wireless network!Easy Setup & Management The ASUS Router mobile app with its intuitive interface makes managing your mesh WiFi system simple right from your smartphone.3-Step Easy Setup Simply follow the on-screen directions, and you will be up and running in no time!Hands-Free Help The ASUS ZenWiFi XT9 works with Ok Google or Alexa Skills for hands-free control of your router.*Google, Google Play, YouTube and Google Nest Audio are trademarks of Google LLC. Nest Audio requires a Wi-Fi network, a nearby electrical socket, a Google Account, and a compatible mobile device. Minimum OS requirements are available at g.co/home/req. *Google Assistant is not available in certain languages and countries.Flexible Backhaul Choice ASUS ZenWiFi XT9 gives you flexible backhaul options: wireless or wired Ethernet speeds. You can use either the second 5GHz band or an Ethernet cable to connect to a local network node. Or just let the ZenWiFi XT9 choose the best connection type for you. The choice is always yours!DEDICATED BACKHAUL You can set the second 5GHz band to only handle mesh backhaul traffic, leaving the other bands open to maximize and stabilize WiFi speeds.SMART CONNECT In its automatic mode, the ZenWiFi XT9 mesh router intelligently assigns connected devices to the most reliable WiFi band available, providing a seamless WiFi experience.ETHERNET BACKHAUL When you connect your mesh routers using Ethernet cables, you can reserve all three WiFi bands for more stable and interference-free connections with wired backhauls.Ultra-fast Wired Connection, Flexible Deployment With a 2.5Gbps WAN port, the ASUS ZenWiFi XT9 empowers you to take full advantage of 2.5Gbps speeds offered by internet service providers for your compatible wired devices. You can also enjoy up to 2Gbps wired speeds by using the LAN aggregation feature.Comprehensive Home Network Security Home network security is more important than ever, as many households now have multiple connected devices while lacking appropriate security measures to protect them and their users. The ASUS ZenWiFi helps you stay safe online with our AiProtection Pro network security and Instant Guard secured VPN features.AiProtection Pro Security for Your Home Network Alongside the latest WPA3 security protocol, the ASUS ZenWiFi XT9 also features AiProtection Pro powered by Trend Micro and advanced parental controls, providing everything you need in one device.Make Free WiFi Secure with Instant Guard ASUS Instant Guard gives you one-click secure internet access via the ZenWiFi XT9 mesh router from anywhere in the world, thanks to its encrypted VPN tunneling technology. You can essentially take your home network with you wherever you go — while saying goodbye to third-party VPN subscription fees!
|
| Product colour | White | | Antenna type | Internal | | Product type | Mesh system | | LED indicators | Power | | Antennas quantity | 6 | | Maximum coverage | 264.77 m² | | Reset button | Y | | Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) | | Top Wi-Fi standard | Wi-Fi 6 (802.11ax) | | Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) | | WLAN data transfer rate (first band) | 574 Mbit/s | | WLAN data transfer rate (second band) | 2402 Mbit/s | | WLAN data transfer rate (third band) | 4804 Mbit/s | | Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n | | Security algorithms | WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-PSK, WPS | | IGMP snooping | Y | | Dynamic DNS (DDNS) | Y | | Guest access | Y | | VPN support | Instant Guard VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Fusion VPN Server WireGuard | | Built-in processor | Y | | Processor cores | 2 | | Processor frequency | 1.7 GHz | | Internal memory | 512 MB | | Flash memory | 256 MB | | Quality of Service (QoS) support | Y | | Parental control | Y | | Parental control features | Custom profiles | | Firmware upgradeable via | Auto upgrade wizard | | Operating modes | Wireless router mode, Access point mode | | Ethernet LAN (RJ-45) ports | 4 | | Ethernet WAN | Y | | AC adapter input voltage | 110 - 240 V | | AC adapter frequency | 50 - 60 Hz | | AC adapter output voltage | 12 V | | AC adapter output current | 3 A | | Weight | 740 g | | AC adapter included | Y | | Ethernet cable | Y |
|
