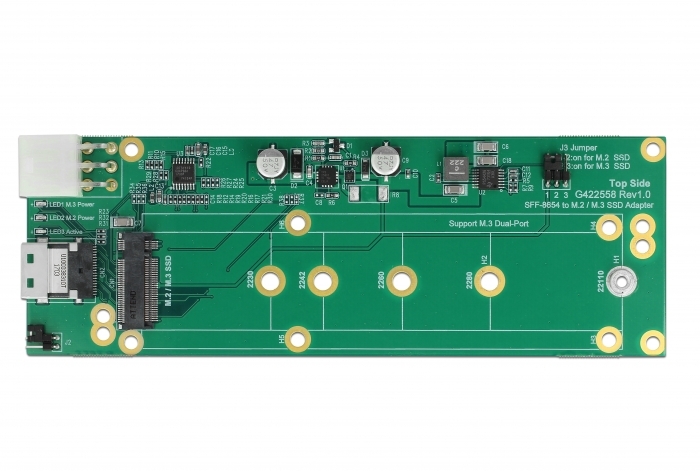

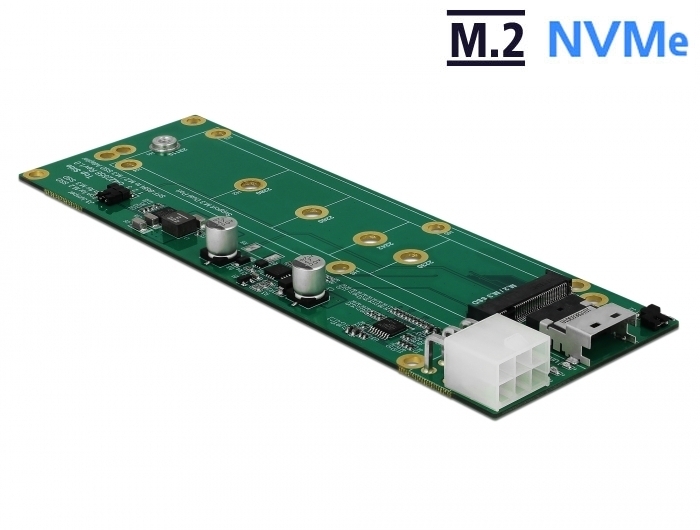

Delock Converter SFF-8654 to 1 x M.2 Key M slot

Kods 64052

Condition: Jauns

Vairāk informācijas

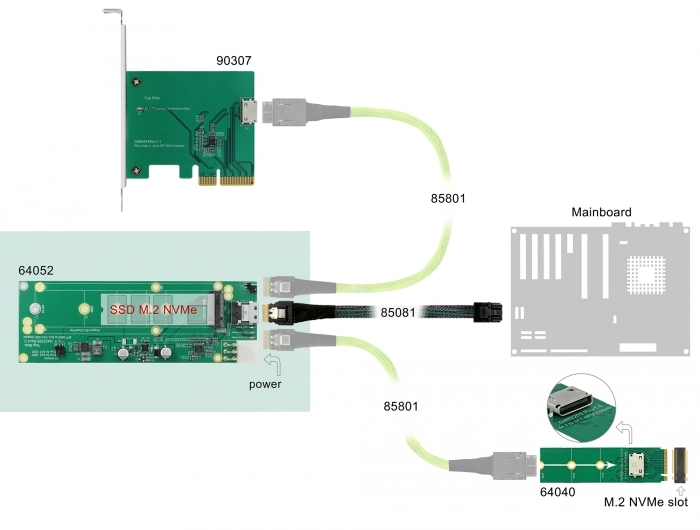

This Delock converter enables the connection of a M.2 SSD in 22110, 2280, 2260, 2242 and 2230 format. It allows the use of NVMe (PCIe) M.2 SSD. The converter can be installed into the system through an optional cable.

System requirements:
• Linux Kernel 4.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• Connection cables

Specification:
• Connectors:
  1 x 38 pin SFF-8654 4i female
  1 x 6 pin power connector
  1 x 67 pin M.2 key M slot
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with
key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• LEDs for power and activity
• Bootable
• Supports NVM Express (NVMe)
• Dimensions (LxWxH): ca. 146 x 50 x 14 mm

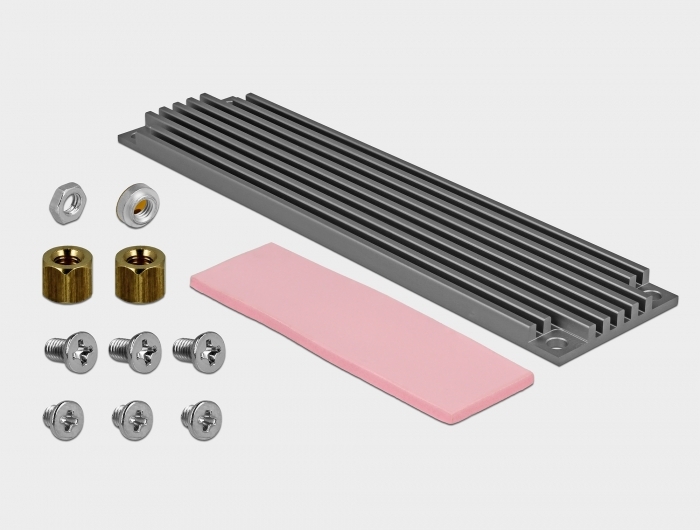

Package content:
• Converter
• 1 x heat sink
• 1 x self-adhesive thermal pad
• Mounting material
• User manual
