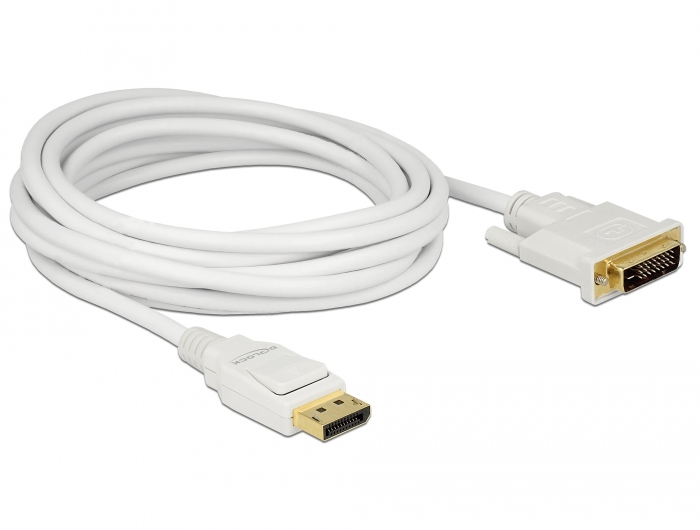

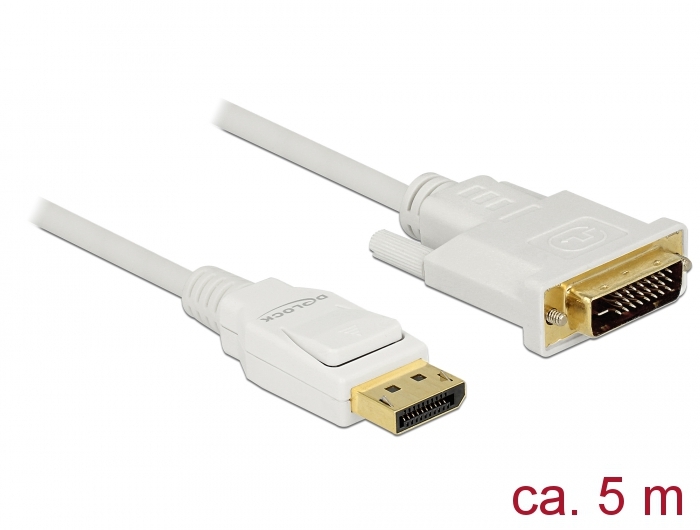

Delock Cable Displayport 1.2 male > DVI 24+1 male passive 5 m white

Kods 83816

Condition: Jauns

Vairāk informācijas

This cable by Delock enables the connection between devices, e.g. a monitor, with DVI connector to a Displayport interface.

System requirements:
• One free Displayport DP++ female

Specification:
• Connectors:
1 x Displayport 20 pin male >
1 x DVI 24+1 male with screws
• Chipset: Parade PS8402A
• DVI-D (Single Link), VGA not wired
• Displayport 1.2a specification
• Passive cable (level shifter), suitable only for graphics cards with DP++ output
• Signal direction: Displayport input > DVI output
• Cable gauge: 30 AWG
• Cable diameter: ca. 6 mm
• Twisted-pair cabling
• Copper conductor
• Gold-plated connectors
• Triple shielded cable
• Data transfer rate up to 3.96 Gb/s
• Resolution up to 1920 x 1080 @ 60 Hz
(depending on the system and the connected hardware)
• Colour: white
• Length without connectors: ca. 5 m

Package content:
• Displayport to DVI cable

Data sheet:
http://www.delock.de/produkt/83816/pdf.html?sprache=en
