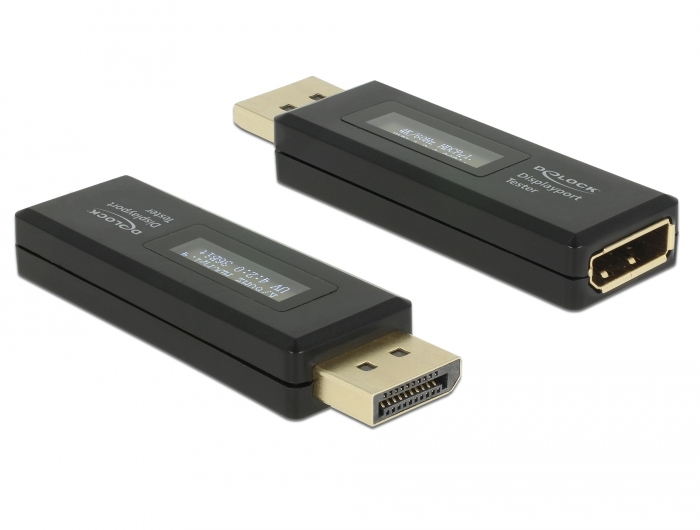

Delock Displayport Tester for EDID information with OLED display

DELOCK

63338

Jauns

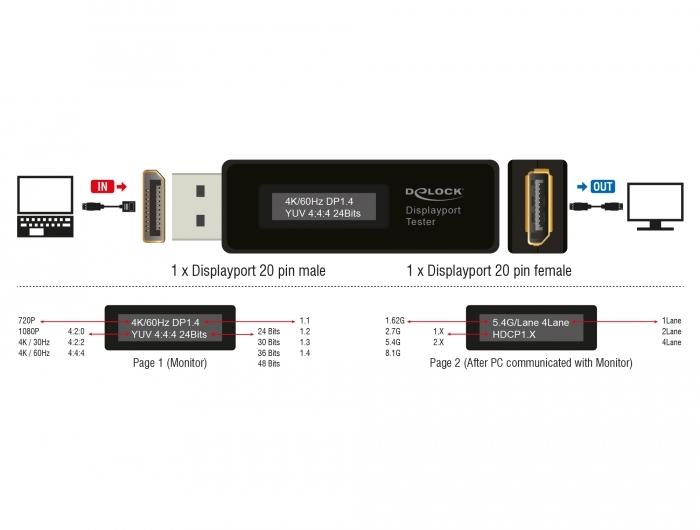

This Displayport tester with OLED display by Delock is used to read the EDID data stored in the monitor. The OLED display shows the maximum resolution, the refresh rate, the HDCP status, the transmission rate and the color depth of the connected device.
System requirements:
• A free Displayport female
Specification:
• Connectors:
  1 x Displayport 20 pin male >
  1 x Displayport 20 pin female
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and
  the connected hardware)
• Signal routed to the output (pass-through)

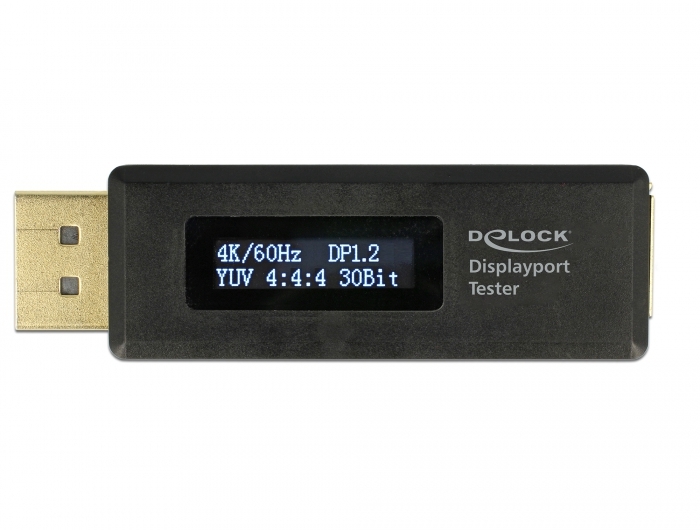

• Double row OLED display
• Plastic housing
• Colour: black
• Dimensions incl. connector (LxWxH): ca. 72.5 x 22.0 x 11.0 mm
Package content:
• Displayport EDID Tester

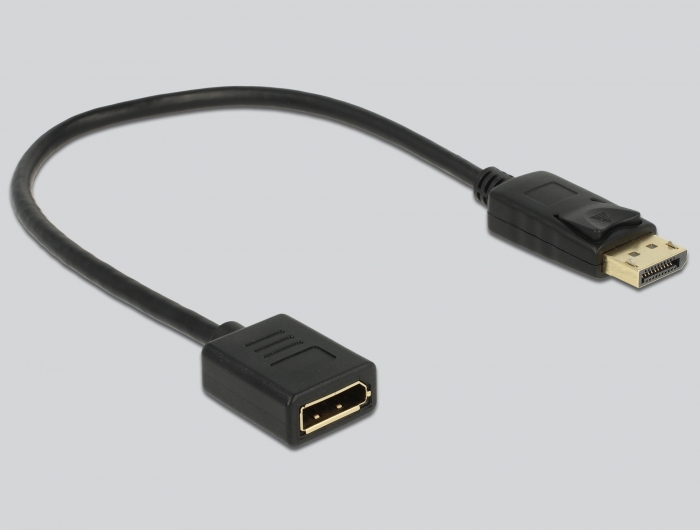

• Displayport extension cable, length ca. 35 cm
• User manual
Data sheet:
http://www.delock.de/produkt/63338/pdf.html?sprache=en
