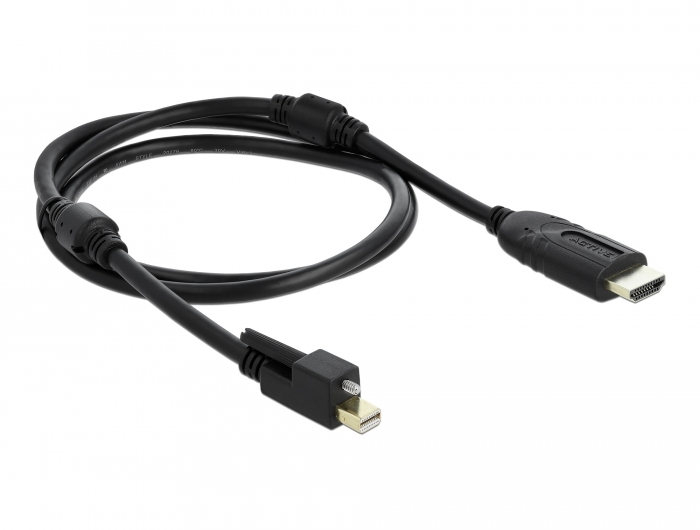

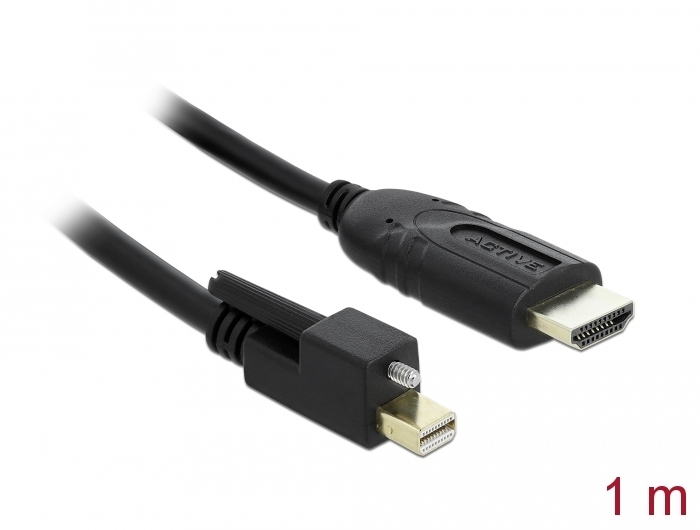

Delock Cable mini DisplayPort 1.2 male with screw > HDMI male 4K Active black 1 m

DELOCK

85642

Jauns

This cable enables you to connect a HDMI monitor through a free mini DisplayPort interface. The cable supports a resolution up to Ultra HD (4K) and is backward compatible to Full-HD 1080p. The screw of the mini DisplayPort connector secures the connection and prevents accidental unplugging of the cable.
System requirements:
• A free mini DisplayPort female port
Specification:
• Connector:
  mini DisplayPort 20 pin male with screw >
  HDMI-A 19 pin male
• Input = mini DisplayPort; Output = HDMI
• Screw type: #4-40, thread type UNC, thread class 3A, American Standard Screw
• Chipset: Parade PS176
• DisplayPort 1.2 and High Speed HDMI specification
• Cable gauge: 32 AWG
• Cable diameter: ca. 5.5 mm
• Gold-plated connector
• Active cable, for graphics cards with DP and DP++ output
• Transfer of audio- and video signals
• Supports a resolution up to 4K (4096 x 2160 pixel @ 24 Hz or 3840 x 2160 pixel @ 30
  Hz) - depending on the system and the connected hardware
• Supports 3D displays (1080p @ 120 Hz)
• Supports HDCP 1.3
• Supports Eyefinity
• Audio input formats: 8-channel LPCM, compressed audio (AC-3, DTS) and HBR audio
  format up to 24 Bit audio sample size and 192 kHz sample rate
• 2 x ferrite core
• Cable length: ca. 1 m (incl. connector)
• Colour: black
• OS independent, no driver installation necessary
Package content:
• Cable mini DisplayPort to HDMI
Data sheet:
http://www.delock.de/produkt/85642/pdf.html?sprache=en
