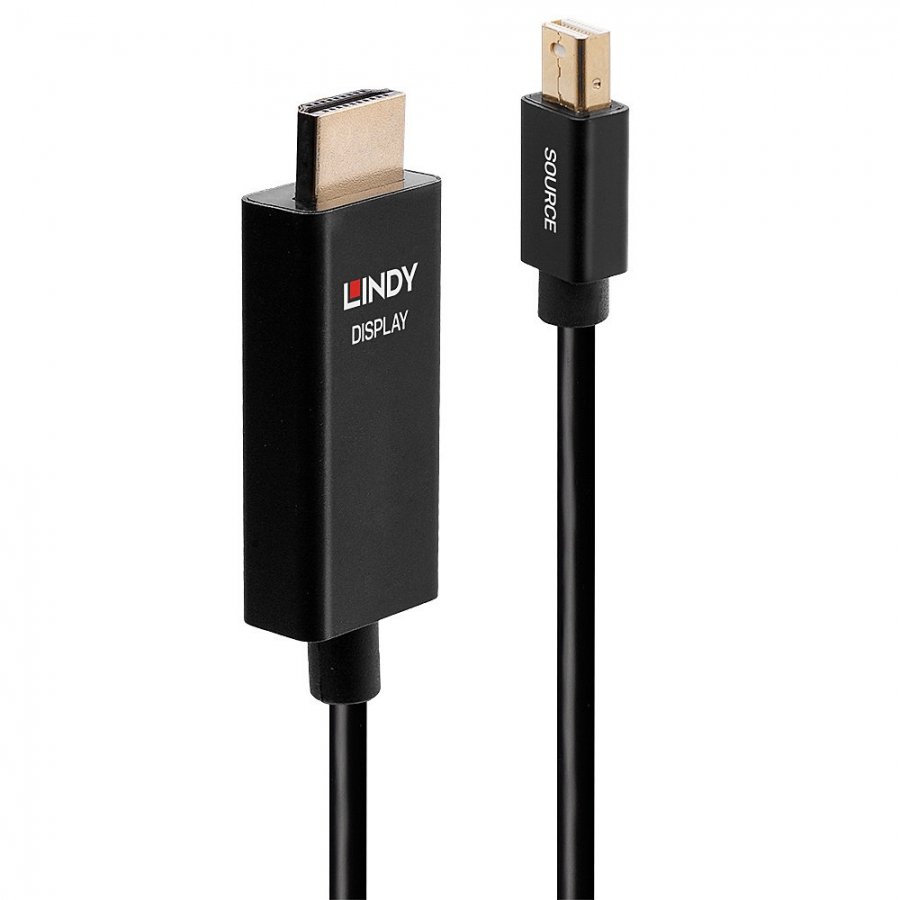

Lindy 2m Active Mini DisplayPort to HDMI Cable with HDR

Lindy

LIN40922

Jauns

Connectors

  • Connector A: Mini DisplayPort Male
  • Connector B: HDMI Type A Male
  • Housing material: ABS
  • Connector plating:  24K Gold 1µm
  • Pin construction: Brass
  • Pin Plating:  24K Gold 3µm
  • Dimensions:
    • Mini DisplayPort: 18.6x11.5x9.3mm (0.73x0.45x0.37in)
    • HDMI: 45.1x21.8x12.2mm (1.78x0.86x0.48in)
  •

Cable Construction

  • Length: 2m (6.56ft)
  • Standard: HDMI 2.0, Mini DisplayPort 1.2
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 5mm (0.2in)
  • Jacket Material: PVC
  • Conductor Material: Tinned copper
  • Conductor Gauge: 32AWG
  • Shielding: Copper braid, 85% AL/MG coverage



Technical Information

  • Supported Bandwidth: 18Gbps
  • Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit, 4096x2160@60Hz 4:2:2 12bit
  • Nominal Attenuation:
    • -12dB@825-2475MHz
    • -20dB@ 2475-4125MHz
    • -25dB@4125-5100MHz
  • Minimum Bend Radius: 60mm (2.36in)
  • Operating Temperature: -20°C - 70°C (-4°F - 158°F)
  • Storage Temperature: -25°C - 85°C (-13°F - 185°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH, California Proposition 65



Purchasing Information

  • No.: 40922
  • EAN: 4002888409223



This product is also available in other lengths

  • 40920 - 0.5m (1.64ft)
  • 40921 - 1m (3.28ft)
  • 40922 - 2m (6.56ft)
  • 40923 - 3m (9.84ft)
