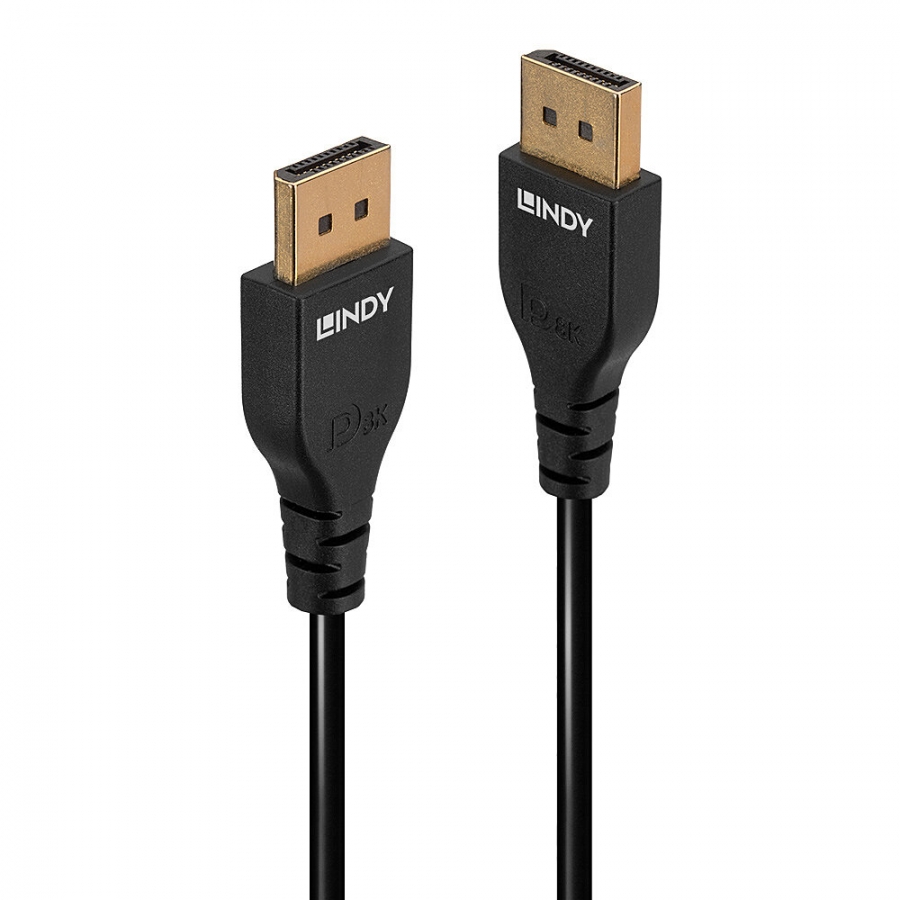

Lindy 3m Slim DisplayPort 1.4 Cable

Lindy

LIN36463

Jauns

Connectors:

  • Connector A: DisplayPort Male (Non-Latching)
  • Connector B: DisplayPort Male (Non-Latching)
  • Housing Material: PVC
  • Connector Plating: Gold plated
  • Pin Construction: Phosphor bronze
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH: WxDxH: 19.4x9.6x42.6mm (0.76x0.37x1.66in)



Cable construction:

  • Length: 3m (9.84ft)
  • Standard: DP 1.4
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 5.7mm (0.22in)
  • Jacket Material: PVC
  • Conductor Material: Copper
  • Conductor Gauge: 30AWG
  • Shielding: Tinned Copper Braid 85%



Specifications:

  • Supported Bandwidth: 32.4 Gbps
  • Maximum Resolution: 7680x4320@60Hz 4:2:2
  • Nominal Attenuation:
  • -5.5dB @1350MHz
  • -8.5dB @2700MHz
  • -11dB @4050MHz
  • Minimum Bend Radius: 45.6mm (1.79in)
  • Operating Temperature: 10°C - 80°C (50°F - 176°F)
  • Storage Temperature: -0°C - 80°C (32°F - 176°F)



Miscellaneous:

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL



Purchasing information:

  • No.: 36463
  • EAN: 4002888364638



This product is also available in other lengths:

  • 36460 - 0.5m (1.64ft)
  • 36461 - 1m (3.28ft)
  • 36462 - 2m (6.56ft)
  • 36463 - 3m (9.84ft)
