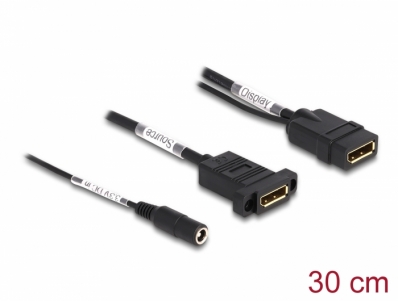

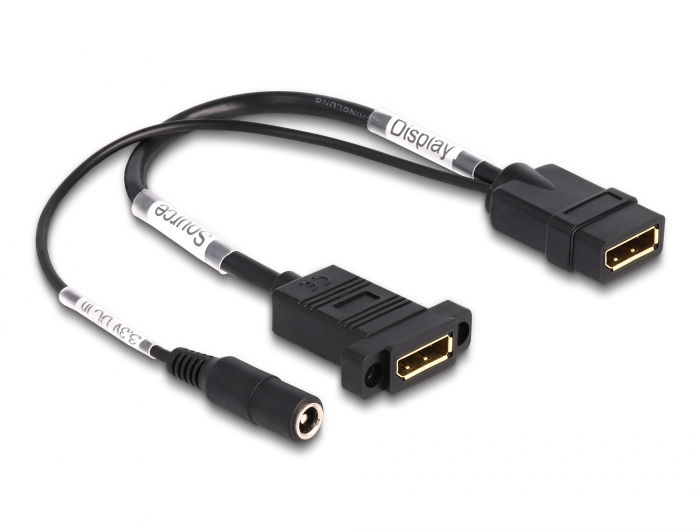

Delock DisplayPort Cable 4K 60 Hz with DC feed 2.1 x 5.5 mm 0.30 m panel-mount

DELOCK

87039

Jauns

This DisplayPort cable by Delock is designed to provide a DisplayPort female port. Via the additional DC connector, it is possible to feed in power. By using active adapters, a constant power supply can be guaranteed.

Note
If power is supplied via the DC connector, the signal can only be transmitted in one direction. Without external power supply the cable can be used bidirectional.
System requirements:
• A free DisplayPort male port
Specification:
• Connectors:
  1 x DisplayPort female
  1 x DisplayPort female + 1 x 3.3 V DC jack 2.1 x 5.5 mm
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the
  connected hardware)
• Supports HDCP 2.2 (High-Bandwidth Digital Content Protection)
• Supports HDR
• Input voltage: 3.3 V
• Material: PC plastic
• Cable diameter: ca. 5.5 mm
• Mounting hole: ca. 21.5 x 12.5 mm, screw hole pitch ca. 28 mm
• Length incl. connectors (L): ca. 0.3 m
• Colour: black
Package content:
• DisplayPort cable
Data sheet:
http://www.delock.de/produkt/87039/pdf.html?sprache=en
