Alogic Dockingstation Thunderbolt 3 Turbo

ALOGIC

TB3DTRG2

Jauns

ALOGIC Thunderbolt 3.0 TURBO Docking Station with USB-C support is one of its kind next generation Thunderbolt 3 dock with cross compatibility across both Thunderbolt 3 and USB-C laptops. It uses full 40Gbps bandwidth when connected to a Thunderbolt 3 laptop to support dual 4K@60H monitors (DisplayPort), 2 x USB-C (10G), 1 x USB-A (10G), 2 x USB-A (5G), Gigabit Ethernet and Combo headphone and mic jack, while charging your laptop with 60W of power. The same dock when connected to a USB-C laptop will also support dual 1080P monitors along with all the other downstream ports and charge the laptop with 60W of power.

Truly Universal
The dock provides universal compatibility across both Mac and Windows for dual monitor support over all laptops with Thunderbolt 3 or USB-C ports. This enables IT professionals to deploy the TURBO dock as a single dock solution across all users, in turn enabling hot desk setups at workplaces with cross platform laptops enabled with either Thunderbolt 3 or USB-C outputs.

High-Definition Dual Display
The TURBO dock supports dual monitors with 4K@60Hz via the twin DisplayPort outputs when connected to a Thunderbolt 3 enabled laptop. It will also support dual monitor with 1080p resolution or a single 4K@30Hz monitor when connected to a USB-C enabled laptop.

Complete Connectivity

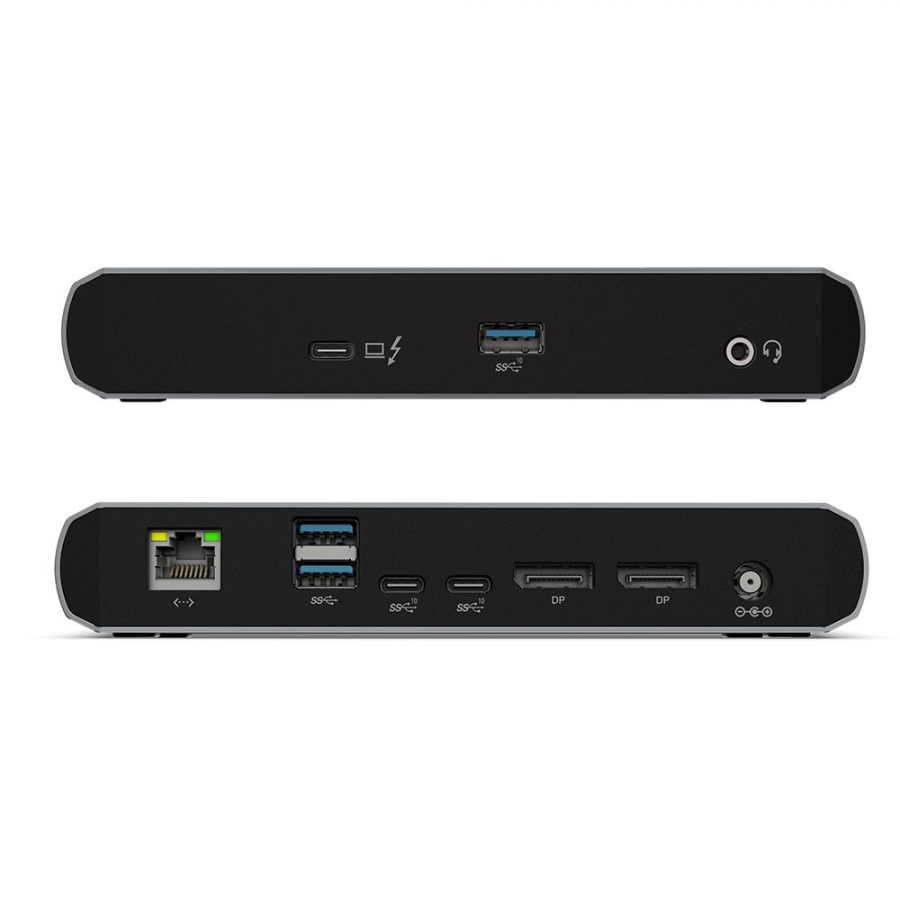

The ALOGIC TURBO dock features 2 x DisplayPort, 2 x USB-C (10G), 1 x USB-A (10G), 2 x USB-A (5G), Gigabit Ethernet and Combo headphone and mic jack to cover all the connectivity requirements.

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Headphone outputs1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
USB Power Delivery
USB Power Delivery up to60 W
DisplayPorts quantity2
Combo headphone/mic port
Headphone connectivity3.5 mm
DC-in jack
Ethernet LAN
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Product colourBlack, Grey
Card reader integrated
Data transfer rate10 Gbit/s
HD type4K Ultra HD
Maximum digital resolution3840 x 2160 pixels
Cable lock slot
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Mac operating systems supportedMac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Width80 mm
Depth170 mm
Height27 mm
Quantity per pack1 pc(s)
AC adapter included
Manual
Harmonized System (HS) code84733020
