Delock Cable DVI 24+5 female DVI 24+5 female panel-mount 110 angled 25 cm

DELOCK

85104

Jauns

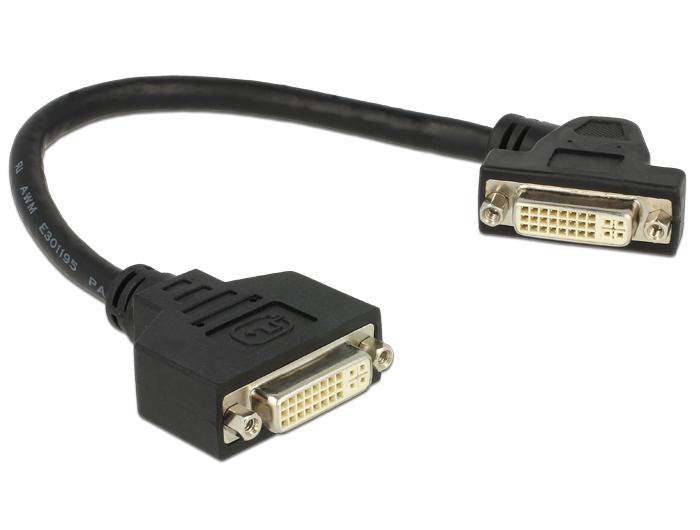

This cable enables you to extend a DVI-D connection and can be used to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. This can be used to install an DVI connector on an easily accessible position.

More details

Description:
This cable enables you to extend a DVI-D connection and can be used to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. This can be used to install an DVI connector on an easily accessible position.

Specification:
• Connector:
DVI-D Dual Link 24+5 female >

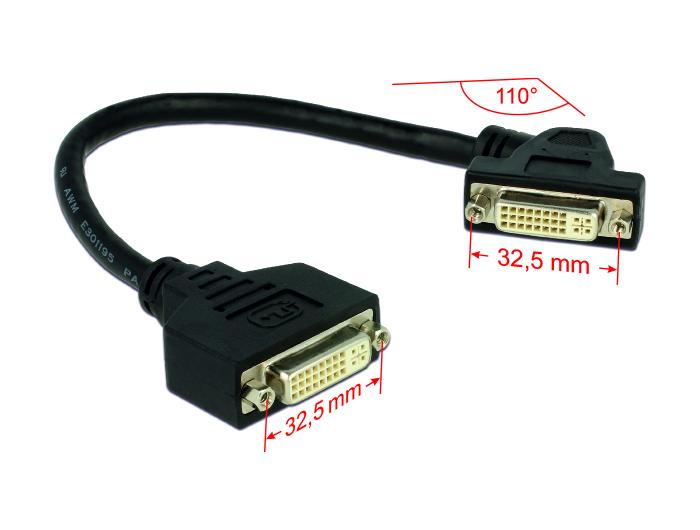

DVI-D Dual Link 24+5 female 110 ° angled with screw nuts for installation
• Signal DVI 24+1, VGA not connected
• Screw type: #4-40 UNC
• Mounting hole ca. 24 x 8 mm, screw hole pitch ca. 32.5 mm

• Cable gauge: 30 AWG
• Cable diameter: ca. 7.0 mm
• Colour: black
• Length incl. connector: ca. 25 cm

System requirements:
• A free DVI port

Package content:
• DVI panel-mount cable
• 2 screws

DVI
