be quiet! Lüfter 140*140*25 SilentWings 4 White PWM

be quiet!

BL116

Jauns

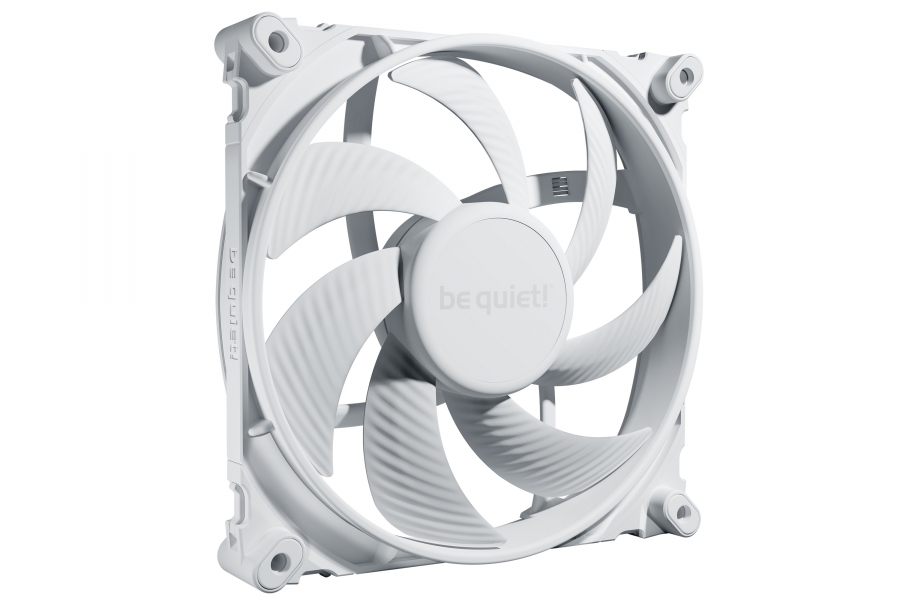

Silent Wings 4 140mm PWM White combines all features of a virtually inaudible with an extremely performant fan for the most demanding applications.

NO COMPROMISE SILENCE AND PERFORMANCE
Equally quiet and performant operation

Silent Wings 4 140mm PWM White is the fan of choice for all possible operations. Be it in a case, on radiators or heat sinks – Features like the silence-optimized fan blades and the funnel shaped fan frame make Silent Wings 4 140mm PWM White a fan that makes no compromises between virtually inaudible operation and high performance.

OPTIMIZED FOR HIGH-END PERFORMANCE
Minimum tolerances for maximum air pressure

Silent Wings 4 140mm PWM White makes for extraordinary air pressure and, therefore, significant increases in the system’s performance. The decreased distance between the fan blades and the frame makes it possible. By that, the Silent Wings 4 140mm PWM White allows the user to run even the most demanding applications.

DIFFERENT MOUNTING OPTIONS
For any purpose

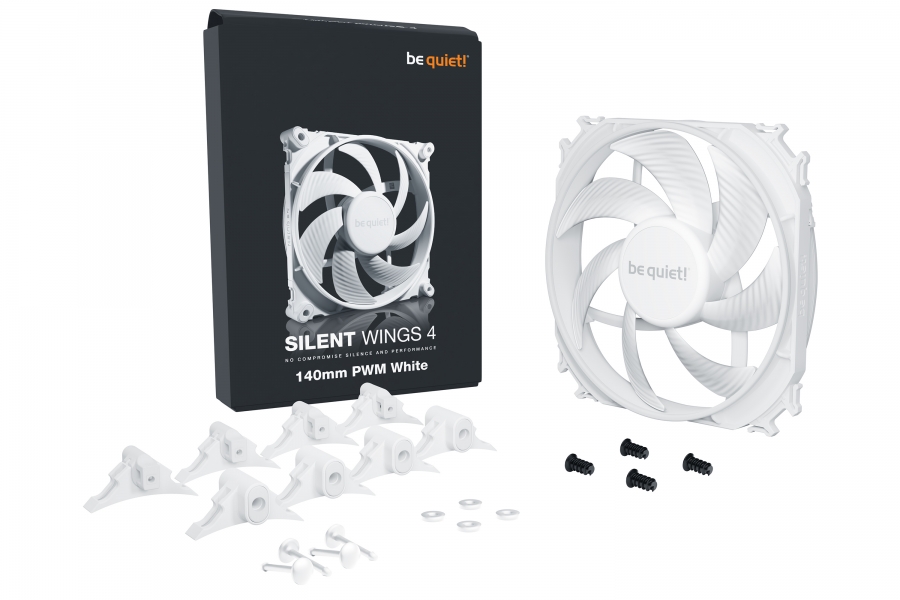

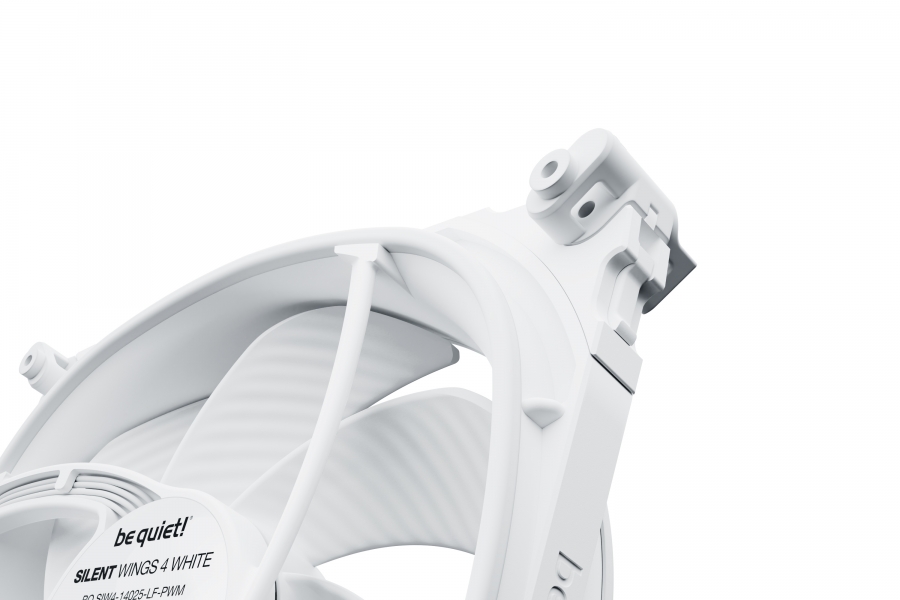

Silent Wings 4 140mm PWM White has 2 mounting options in the scope of delivery. The pre-installed anti-vibration mounting reduces noise-generating vibrations to a minimum. For radiators and heat sinks, the plastic mounting is the first choice. Both solutions have in common that they enable virtually inaudible operation at regular speed.

6-POLE FAN MOTOR
The key for virtually inaudible operation when needed

6-pole fan motor with 3 phases for very low power consumption, less vibration and therefore quiet max. operation of 13.6dB(A). Equipped with this state-of-the-art technology the fan is virtually inaudible when operated
in mid-speed.

FLUID-DYNAMIC BEARING
For a sustainable operation

The advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours. In addition, it reduces the vibrations significantly and supports the virtually inaudible operation of
Silent Wings 4 140mm PWM White.

ELEGANT LOOK
Magnificent appearance from all angles

Be it as a radiator fan or in the case: Silent Wings 4 140mm PWM White always makes a good impression. The all-white design combined with the high-grade fan sticker makes the fan shine especially in white PC builds. This makes Silent Wings 4 140mm PWM White a high performant and an incredibly good-looking fan.

Suitable locationComputer case
TypeFan
Fan diameter14 cm
Rotational speed (max)1100 RPM
Noise level (high speed)13.6 dB
Maximum airflow51.3 cfm
Airflow87.2 m³/h
Maximum air pressure0.92 mmH2O
Pulse-width modulation (PWM) support
Bearing typeRifle bearing
Quantity per pack1 pc(s)
Fan's mean time to failure (MTTF)300000 h
Product colourWhite
Fan connector4-pin
Voltage5 - 13.2 V
Rated voltage12 V
Fan power consumption3.6 W
Rated current0.3 A
Width140 mm
Depth140 mm
Height25 mm
Weight220 g
Cable length0.5 m
Package width156 mm
Package depth206.5 mm
Package height31 mm
Package weight390 g
Sustainability compliance
Sustainability certificatesCE, RoHS, Triman, UKCA, WEEE
Warranty period3 year(s)
Screws included
Number of screws4
Shipping (inner) case width31.7 cm
Shipping (inner) case length46.3 cm
Shipping (inner) case height38.8 cm
Shipping (inner) case gross weight13.6 kg
