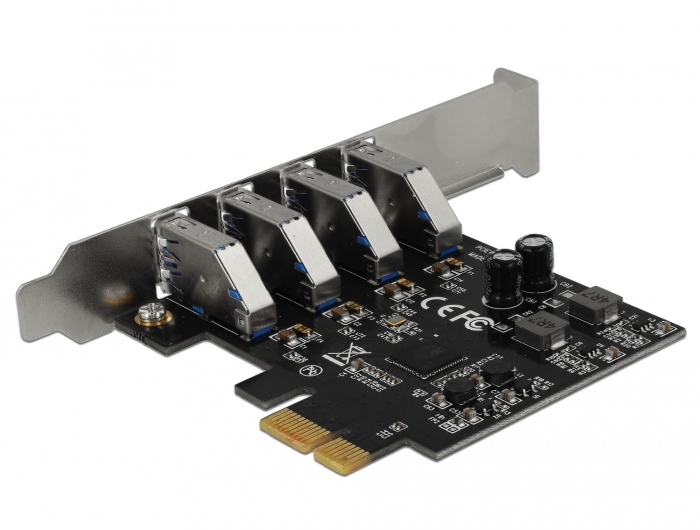

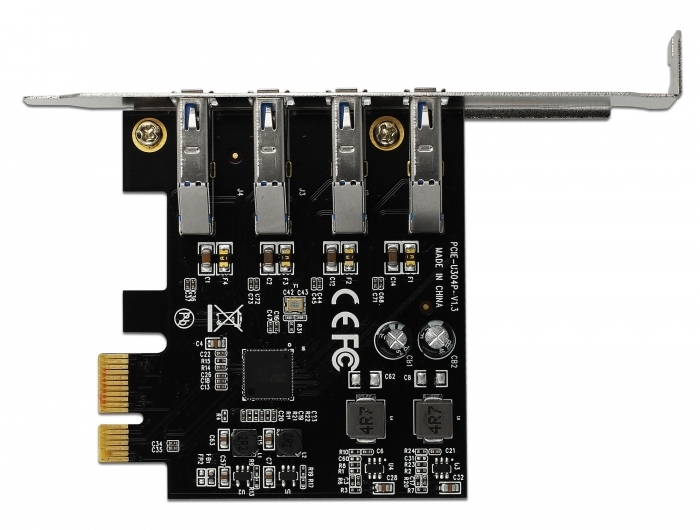

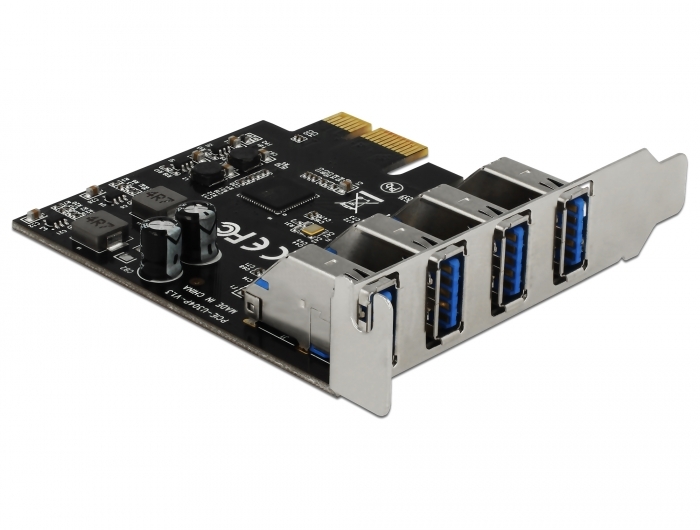

Delock USB 3.0 PCI Express Card with 4 x external Type-A female




The PCI Express card by Delock expands a PC by four external USB 3.0 ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.

Delock USB 3.0 PCIe Card with Mac support
The card does not need an additional power supply and is therefore suitable for Mac too. The power is supplied exclusively via the PCI Express interface by 5 watt per port.
System requirements:
• Linux Kernel 4.9.4 or above
• Mac OS 10.9 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
• Connectors:
  4 x USB 3.0 Type-A female
  1 x PCI Express x1, V2.0
• Chipset: Fresco Logic FL1100
• Data transfer rate up to:
  SuperSpeed 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• Electrical power per port: max. 5 watt (5 V / 1 A)
Package content:
• PCI Express card USB 3.0

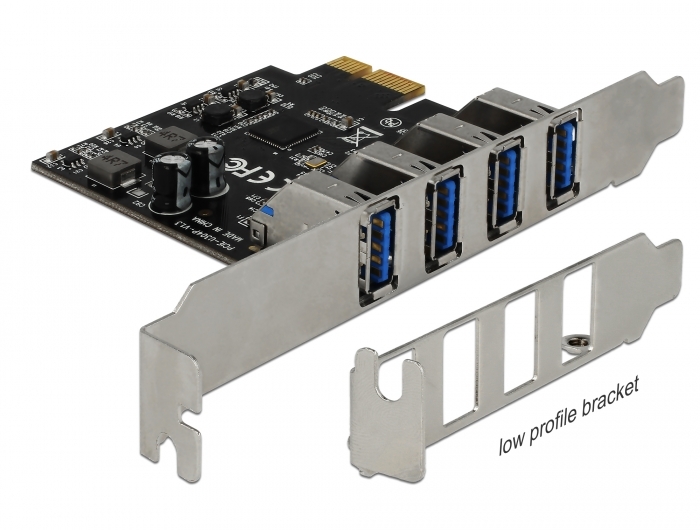

• Low profile bracket
• Driver CD
• User manual
Data sheet:
