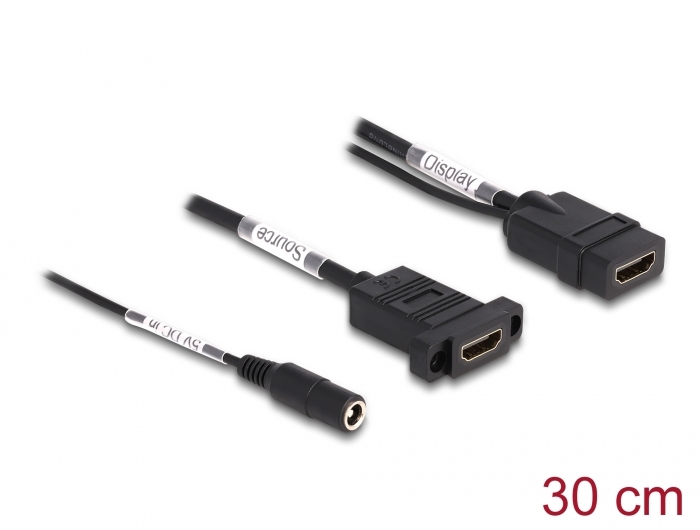

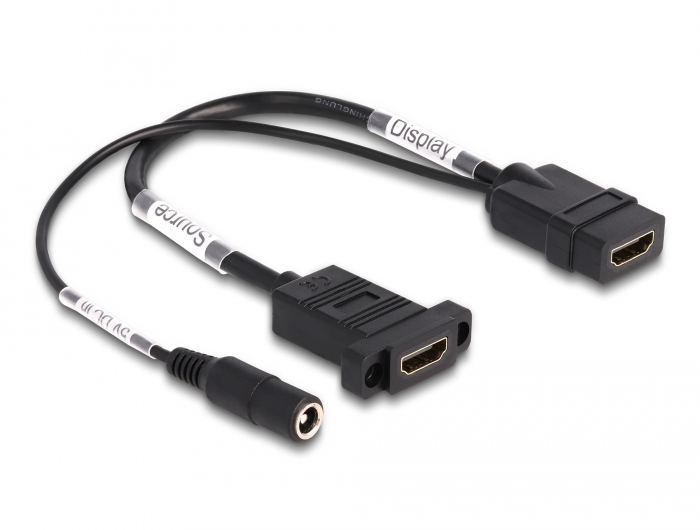

Delock HDMI Cable 4K 60 Hz with DC feed 2.1 x 5.5 mm 0.30 m panel-mount

DELOCK

87038

Jauns

This HDMI cable by Delock is designed to provide a HDMI female port. Via the additional DC connector, it is possible to feed in power. By using active adapters, a constant power supply can be guaranteed.

Note
If power is supplied via the DC connector, the signal can only be transmitted in one direction. Without external power supply the cable can be used bidirectional.
System requirements:
• A free HDMI male port
Specification:
• Connectors:
  1 x HDMI female
  1 x HDMI female + 1 x 5 V DC jack 2.1 x 5.5 mm
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the
  connected hardware)
• Supports CEC 2.0 control commands
• Supports HDCP 2.2 (High-Bandwidth Digital Content Protection)
• Supports HDR
• Input voltage: 5 V
• Material: PC plastic
• Mounting hole: ca. 21.5 x 12.5 mm, screw hole pitch ca. 28 mm
• Length incl. connectors (L): ca. 0.3 m
• Colour: black
Package content:
• HDMI cable
Data sheet:
http://www.delock.de/produkt/87038/pdf.html?sprache=en
