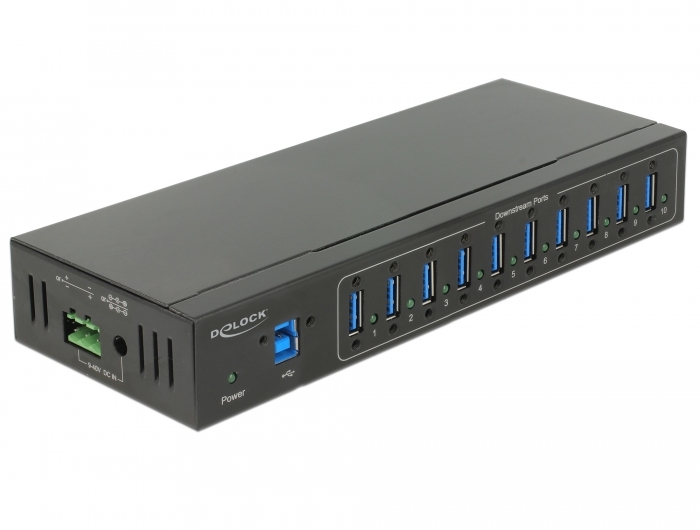

Delock External Industry Hub 10 x USB 3.0 Type-A with 20 kV ESD protection

DELOCK

63919

Jauns

This solid industry capable USB hub by Delock can be connected to a computer via the USB Type-A interface. It expands the computer by ten USB Type-A connectors. If necessary, an optional power supply or an optional power cable can be connected to the power socket.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.16.x, Mac ex OS 10.9
• PC or laptop with a free USB Type-A port
Specification:

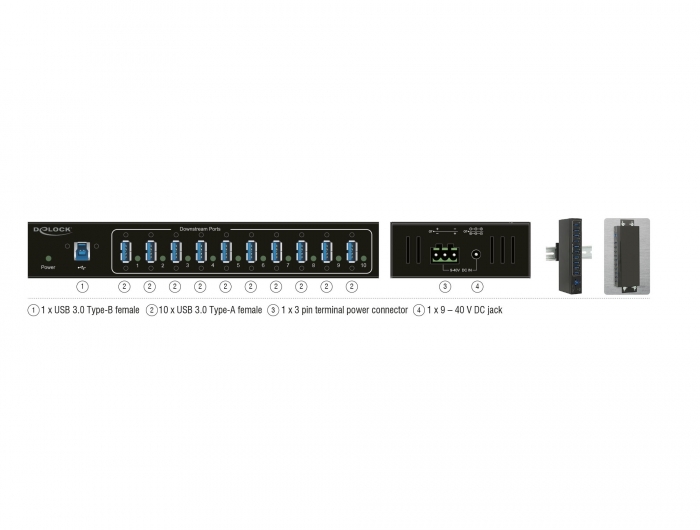

• Connectors:
  1 x USB 3.0 Type-B female >
  10 x USB 3.0 Type-A female
  1 x 9 – 40 V DC jack
  1 x 3 pin terminal power connector
• Chipset: VIA VL817
• Data transfer rate up to:
  SuperSpeed USB 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• 11 x LED indicator
• USB ports with screw holes
• Robust metal housing

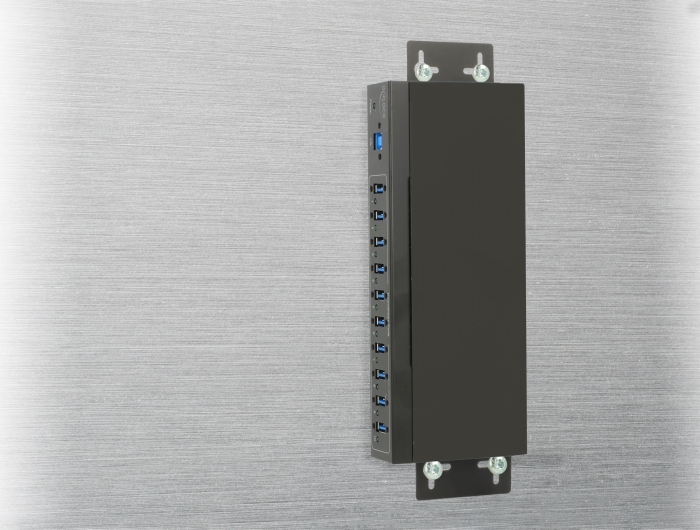

• Removable wallmount brackets
• Power supply: Bus-powered or Self-powered
• Flexible power supply with 9 V to 40 V
• Automatic detection of the input polarity of the power connectors
• ESD protection up to 20 kV for all ports
• Dimensions (LxWxH): ca. 202 x 80 x 32 mm
• Colour: black
• Plug & Play

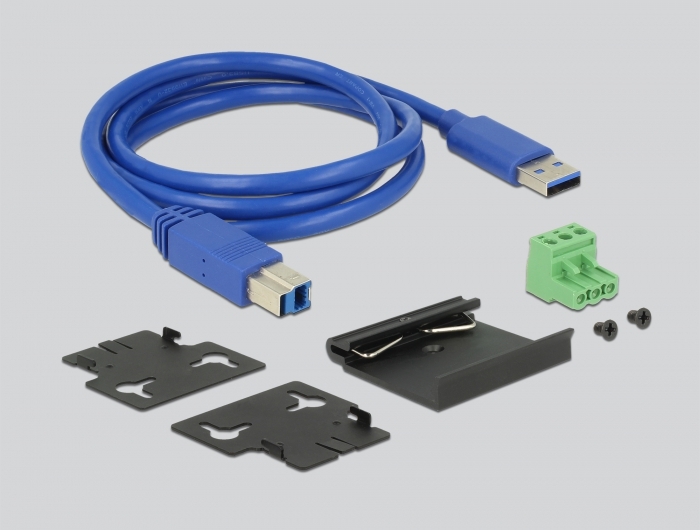

Package content:
• Hub USB
• 1 x cable USB A male to USB B male, length ca. 1 m
• 2 x wall mounting brackets

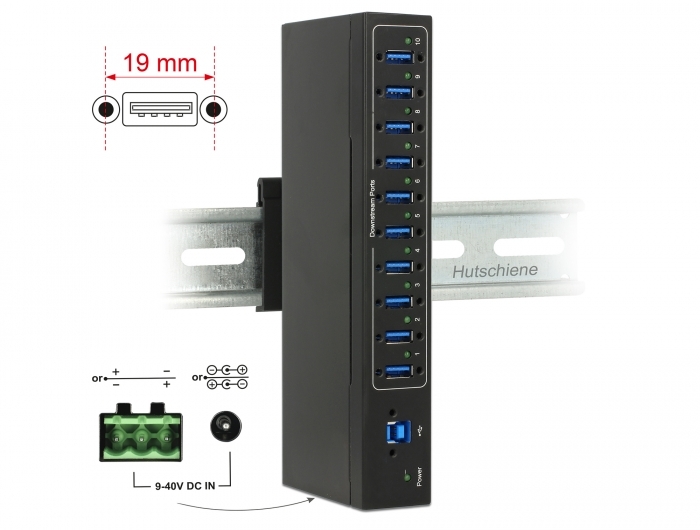

• 1 x mounting for 35 mm DIN rail
• 1 x 3 pin terminal block
• User manual
Data sheet:
http://www.delock.de/produkt/63919/pdf.html?sprache=en
