Delock 3.5″ Front Panel > 2 x USB 3.0 + 2 x USB 2.0

DELOCK

63993

Jauns

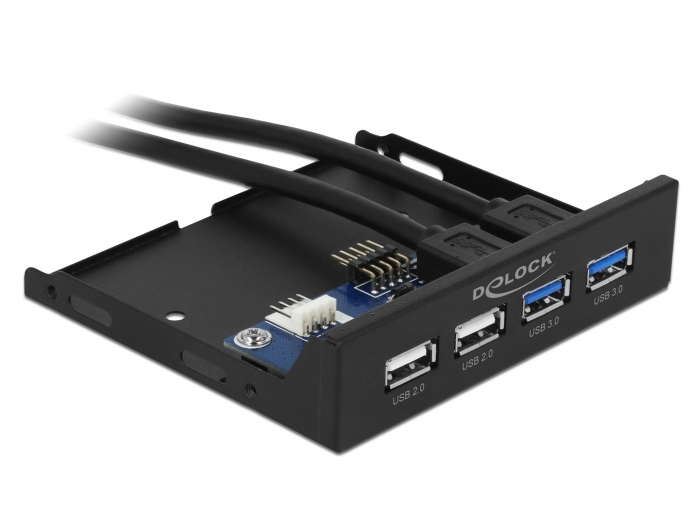

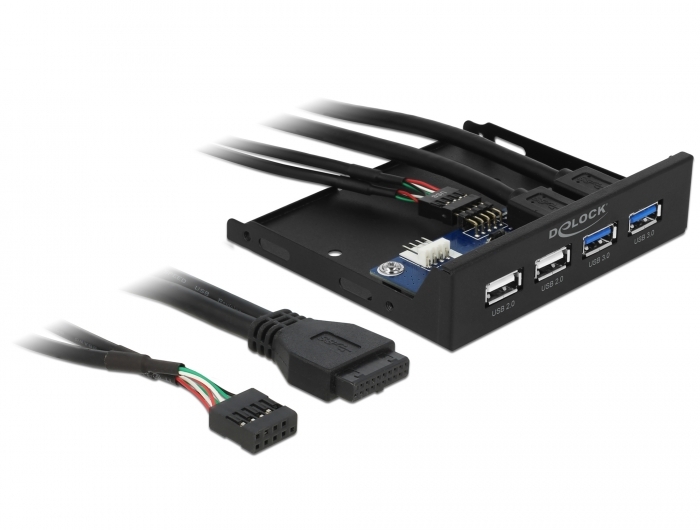

This front panel by Delock can be installed into a free 3.5″ bay of a computer. It has two USB 3.0 and two USB 2.0 ports. It will be connected to the motherboard internally via two pin header male ports.
System requirements:
• PC with one free 3.5″ bay
• Motherboard with a free 19 pin USB 3.0 pin header male
• Motherboard with a free 9 pin USB 2.0 pin header male
• Power supply with SATA 15 pin receptacle
Specification:

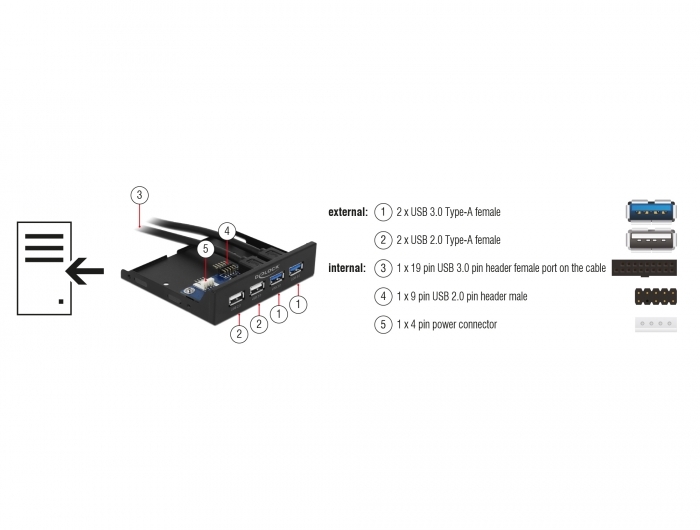

• Connectors:
  external:
    2 x USB 3.0 Type-A female
    2 x USB 2.0 Type-A female
  internal:
    1 x 19 pin USB 3.0 pin header female port on the cable
    1 x 9 pin USB 2.0 pin header male
    1 x 4 pin power connector
• Data transfer rate up to:
  SuperSpeed 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• Cable data:
  1 x 19 pin USB 3.0 pin header female cable, length ca. 54 cm (without connectors)
  1 x cable 9 pin USB 2.0 pin header female to 9 pin USB 2.0 pin header female,
  length ca. 59 cm (without connectors)
  1 x power cable 4 pin female to 1 x SATA 15 pin plug,
  length ca. 17 cm (without connectors)
• 3.5″ metal frame
• Colour: black
• Hot Swap, Plug & Play
• OS independent, no driver installation necessary

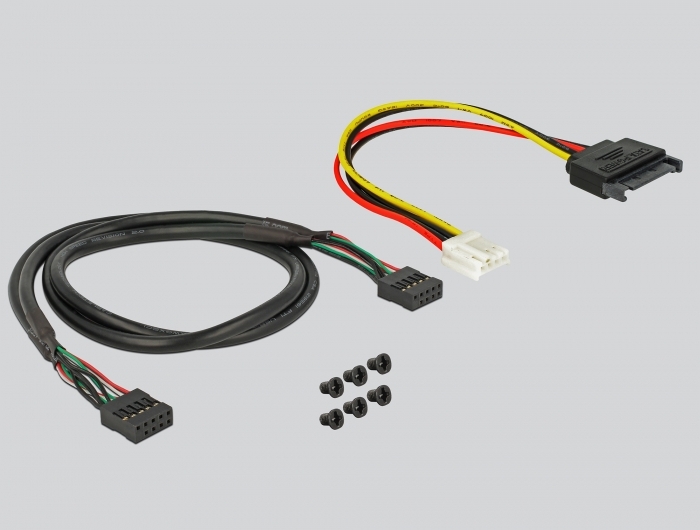

Package content:
• 3.5″ front panel
• USB 2.0 pin header female cable
• Power cable
• Screws
• User manual
Data sheet:
http://www.delock.de/produkt/63993/pdf.html?sprache=en
