Delock 3.5″ USB 3.2 Gen 2 Front Panel 2 x USB Type-C™ + 2 x USB Type-A

DELOCK

64057

Jauns

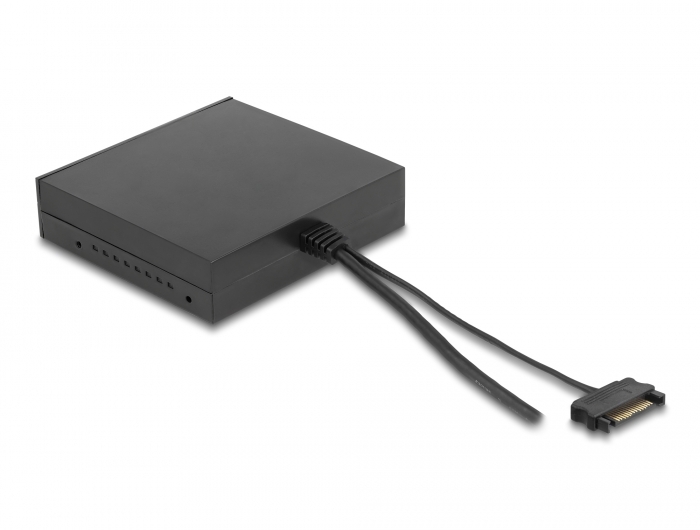

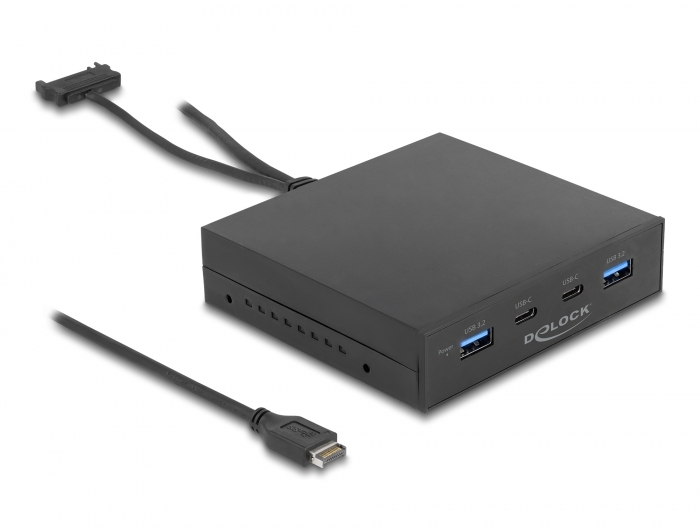

This front panel by Delock can be installed into a free 3.5″ bay of a computer. It has two USB Type-A and two USB Type-C™ ports. It will be connected to the motherboard internally via a USB key A male port.
System requirements:
• Linux Kernel 3.3 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free 3.5″ bay
• Motherboard with a free USB key A female port
• Power supply with SATA 15 pin receptacle
Specification:
• Connectors:
  external:
    2 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
    2 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Type-A female
  internal:
    1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) key A male
    1 x SATA 15 pin plug (power supply)
• Data transfer rate up to:
  SuperSpeed USB 10 Gbps,
  SuperSpeed 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• Cable data:
  1 x USB 3.2 key A male, length ca. 38 cm (without connector)
  1 x power cable SATA 15 pin plug, length ca. 8 cm (without connector)
• Housing material: plastic
• Colour: black
• Hot Swap, Plug & Play
Package content:
• 3.5″ front panel
• Screws
• User manual
Data sheet:
http://www.delock.de/produkt/64057/pdf.html?sprache=en
