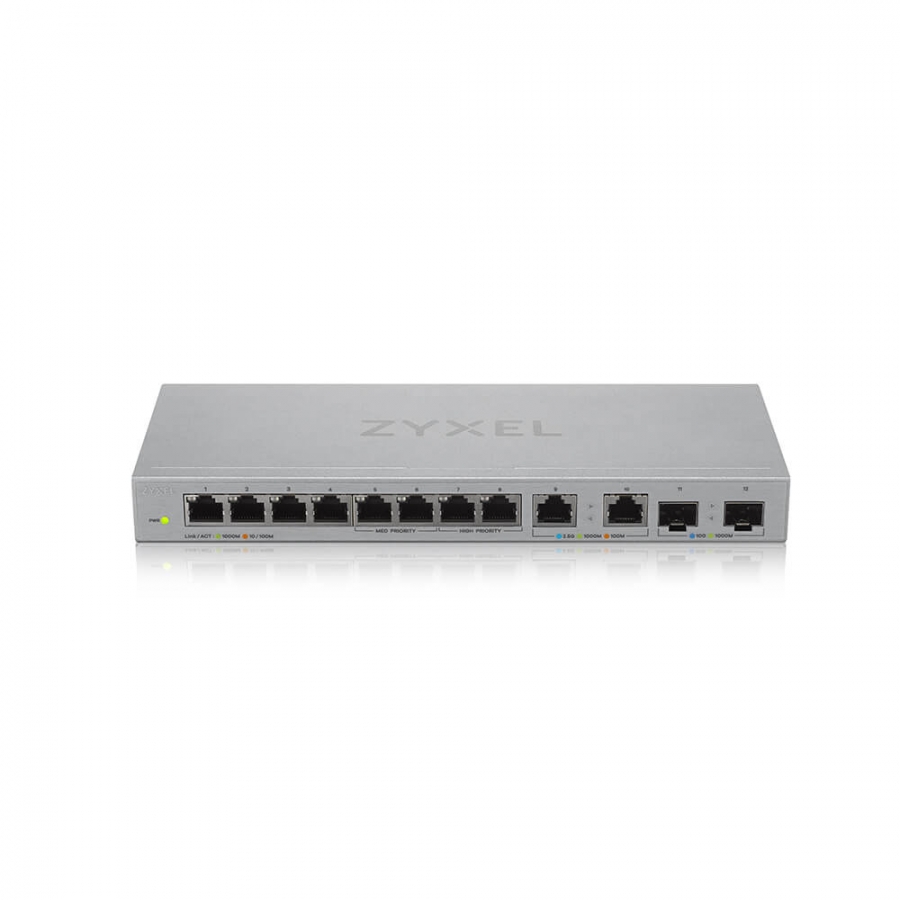

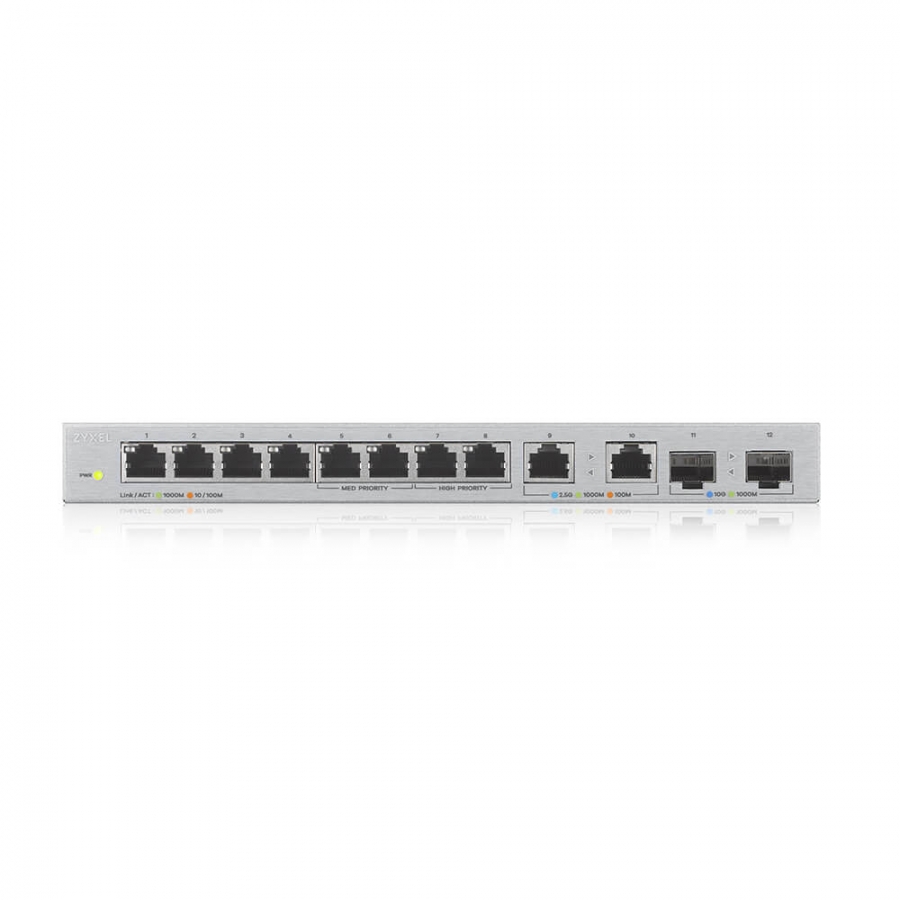

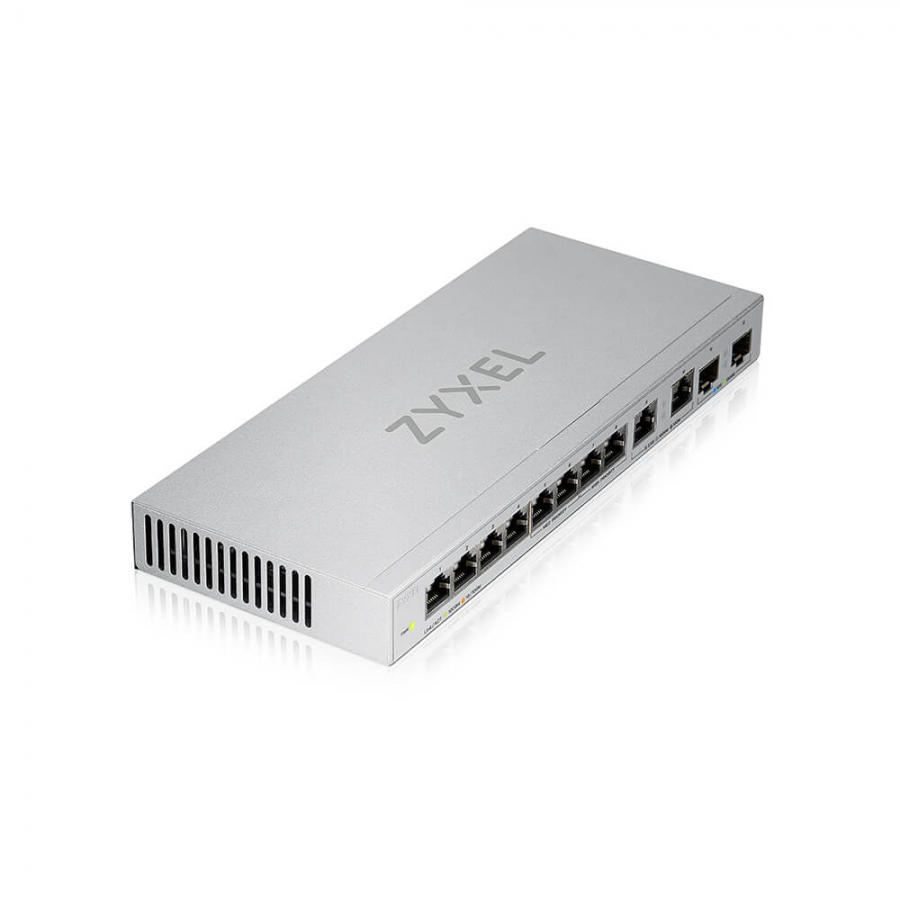

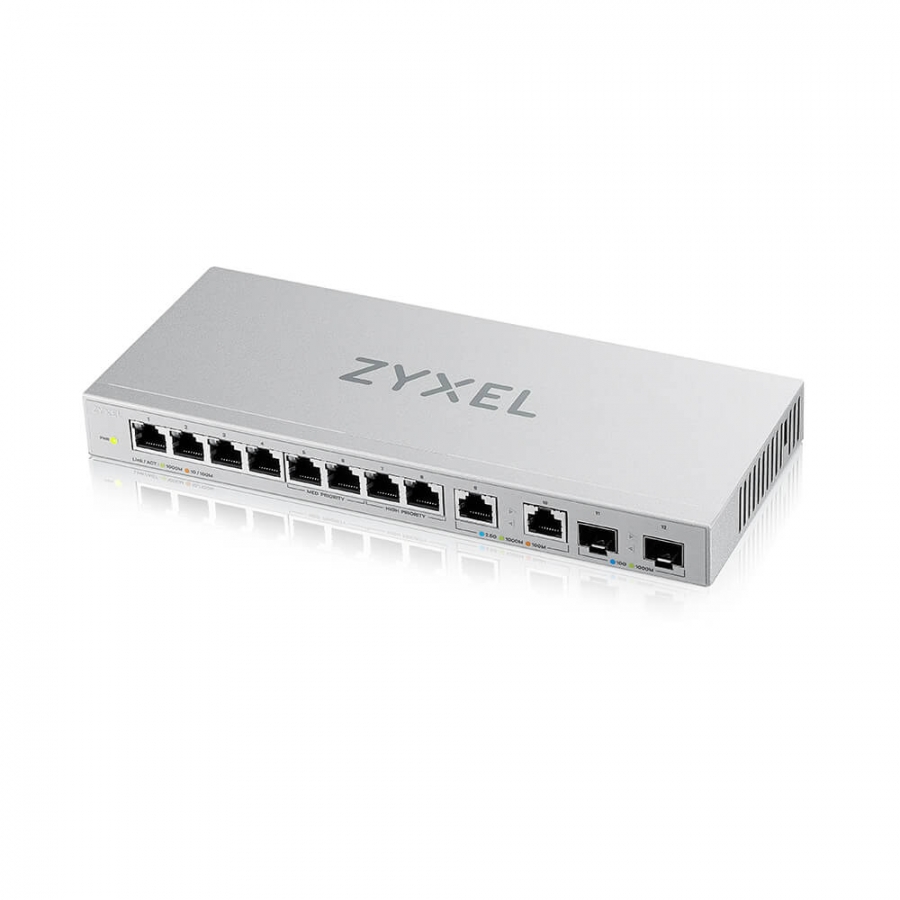

Zyxel Switch 12x GE XGS1010-12 MultiGig

ZYXEL

XGS1010-12-ZZ0101F

Jauns

12-Port 10G SFP+ Unmanaged Multi-Gigabit Switch provides high performance and simplified controls The Zyxel XGS1010-12 comes with two 10G SFP+ uplink ports, two 2.5G Multi-Gigabit ports, and eight Gigabit Ethernet ports with plug-and play design. It has been designed specifically for customers who require an affordable 10GbE network connectivity over a variety of mixed environments from the home to the office.Maximums the flexibility for your network. The XGS1010-12 features with 1G ports, 2.5G Multi-Gigabit ports, as well as 10G fiber ports. This port combination is capable of servicing a range of network devices such as gaming pc, NAS, workstation, or WiFi 6 AP.Experience hyper-fast 2.5G networking! Equipped with two 2.5G Multi-Gigabit ports, the switch gives your wired connection a boost, with speeds that are 2.5 times faster than standard Gigabit connections. It is the most ideal option to work with new motherboard for speedy file transfers, lag-free gaming, and high-res video streaming.10G SFP+ Ultra Speed Uplink. Provide two SFP+ ports compatible with 10GbE, which offers higher transmission speeds, instantly upgrade to a hybrid high-speed network environment at a cost-effective price.QoS for Better Traffic Control. The Zyxel XGS1010-12 comes with two high-priority and two medium p-priority ports, which provides enhanced download quality, all while giving you a better surfing, gaming, and streaming experience on other devices.Easy to Use, No Setup Required. Its easy plug-and-play design allows you to connect the XGS1010-12 to VoIP, media players, game consoles, set-top box, and any other web browsing devices to your home or studio network without any configuration.Saving energy and space. The fanless design ensures noiseless operation. Also, its built-in Energy Efficient Ethernet function automatically adjusts power consumption to dynamically reduce power usage during low link utilization. The wall-mount installation design provides more flexibility for wired home or office networks.

Switch typeUnmanaged
Quality of Service (QoS) supportY
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
2.5G Ethernet (copper) ports quantity2
SFP+ module slots quantity2
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Full duplexY
Flow control supportY
Auto MDI/MDI-XY
Ethernet LAN data rates10,100,1000 Mbit/s
MAC address table16000 entries
Switching capacity66 Gbit/s
Forwarding rate49 Mpps
Jumbo frames supportY
Jumbo frames12000
Packet buffer memory1.5 MB
Access Control List (ACL)Y
Rack mountingN
Product colourGrey
Reset buttonY
LED indicatorsY
Power sourceAC/DC
Power supply includedY
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
DC input voltage12 V
Input current1.5 A
Power consumption (max)15.61 W
Power over Ethernet (PoE)N
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Width250 mm
Depth104 mm
Height24 mm
Weight768 g
Package width306 mm
Package depth225 mm
Package height64 mm
Package weight1.22 kg
Harmonized System (HS) code85176990
