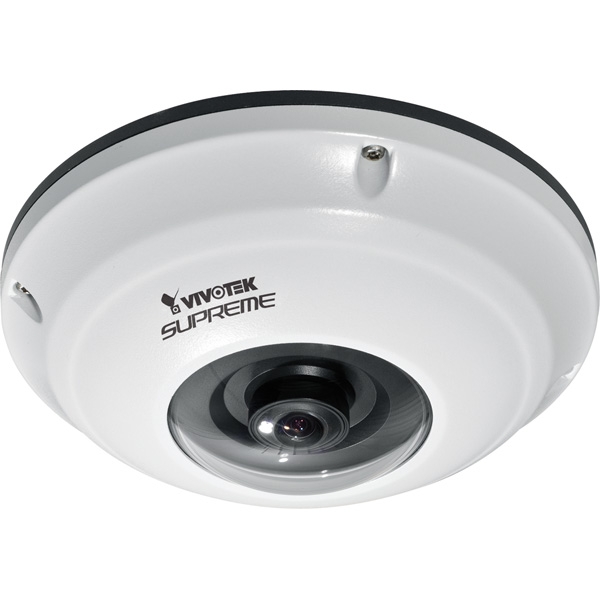

VIVOTEK FE8171V, Vandal-proof Day/Night Fisheye Network Camera, Supreme Series

VIVOTEK

FE8171V

Jauns

VIVOTEK FE8171V is the first fisheye fixed dome network camera from VIVOTEK, featuring detailed 3.1MP-resolution sensor
with superb image quality. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor/table mount) without blind spots, this camera is able to provide an 8X wider field of view than a standard VGA camera. It is extremely suitable for monitoring open areas such as airports, shopping malls, parking lots, retail stores, offices and more.

The FE8171V offers various display layouts, including original surround view, panoramic view, and regional view for various mounting applications. With the latest cutting-edge image processing capability, hemispherical images captured from the fisheye camera can be converted into conventional rectilinear projection for viewing and analysis. In addition, in both of the panoramic as well as regional viewing modes, users can utilize the ultra-smooth ePTZ function to easily zoom in and focus on a region of interest (ROI).

As with all VIVOTEK true day/night cameras, the FE8171V features a removable IR-cut filter, maintaining clear images 24 hours

ManufacturerVIVOTEK
Manufacturer Item No.FE8171V
Product groupNetwork Cameras
Product typeFish Eye Network Camera
Scope of deliveryCamera, special screwdriver for housing, screws, drilling
Mounting formFish-Eye
TypeVivotek, Fish-Eye Cameras
InterfaceLAN
Image Sensor Type1/2 CMOS-Sensor
Resolution3
Maximum Resolution (Dots)1536 x 1536
Framerate at max Resolution (Frames/Second)15
Video CompressionMJPEG, MPEG-4, H.264
Number of Video Streams4
Lens MountBoard mount
Lens TypeFixed Lens
Focal Length1,27 mm
Field of View180°
Remote Controllable Optical Zoom
Removable IR Cut Filter
Day/Night Mode
IR LED
Minimum Illumination1,17 / 0,2 (b/w) Lux
Audio Input
Audio Output
Digital Input
Digital Output
Integrated PIR Sensor
Motion Detection
Memory Card Slot
Power over Ethernet (PoE)
WLAN
Operating temperature-25° C ... 50° C
Suitable for Outdoor Use
Gross Weight1.645
