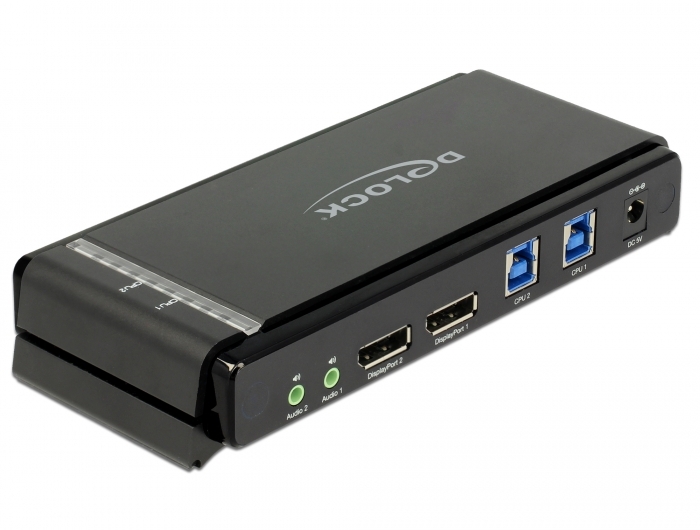

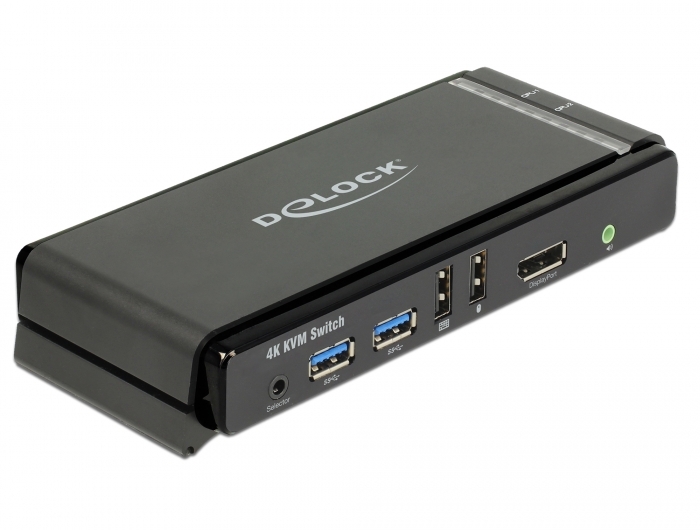

Delock DisplayPort 1.2 KVM Switch 4K 60 Hz with USB 3.0 and Audio

DELOCK

11467

Jauns

This KVM switch by Delock is a convenient solution for connecting two computers with DisplayPort output to a DisplayPort monitor. By using the button or a hotkey you can switch between both computers. Furthermore, two USB 2.0 ports for a mouse and keyboard, and two USB 3.0 ports for a hard drive or USB memory can be connected. With the support of MST (Multi-Stream Transport), multiple monitors can be used at the DisplayPort output with an optional MST hub.
System requirements:
• PC with DisplayPort female + USB Type-A female
• Monitor or TV with DisplayPort connector
Specification:

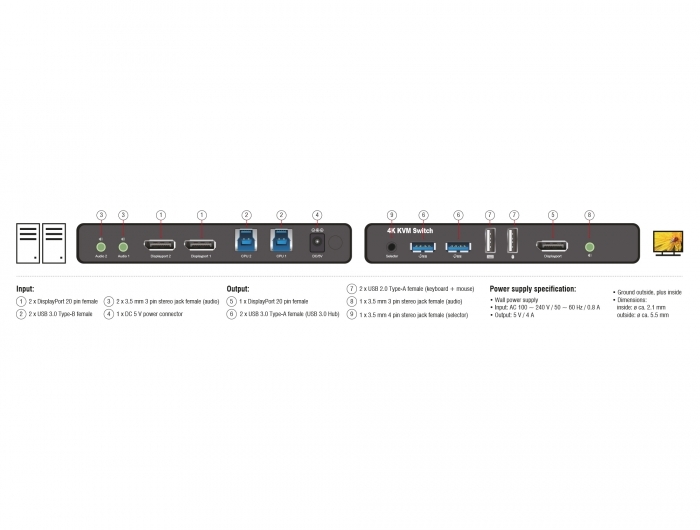

• Connectors:
  Input:
    2 x DisplayPort 20 pin female
    2 x USB 3.0 Type-B female
    2 x 3.5 mm 3 pin stereo jack female (audio)
    1 x DC 5 V power connector
  Output:
    1 x DisplayPort 20 pin female
    2 x USB 3.0 Type-A female (USB 3.0 Hub)
    2 x USB 2.0 Type-A female (keyboard + mouse)
    1 x 3.5 mm 3 pin stereo jack female (audio)
    1 x 3.5 mm 4 pin stereo jack female (selector)
• Switch button with 2-colour LED indicator for source
• Switching via button or hotkey
• Automatic switching when turning a PC on or off
• Independent switching of source, audio and USB 3.0 hub
• 2 x USB 3.0 Type-A female - Battery Charging specification BC1.2
• DisplayPort 1.2 specification
• Resolution up to 4096 x 2160 @ 60 Hz / 3840 x 2160 @ 60 Hz
  (depending on the system and the connected hardware)
• DisplayPort output supports Dual Mode DP++
• Supports MST (Multistream Transport)
• Robust metal housing
• Colour: black
• Dimensions (LxWxH): ca. 170 x 74 x 30 mm

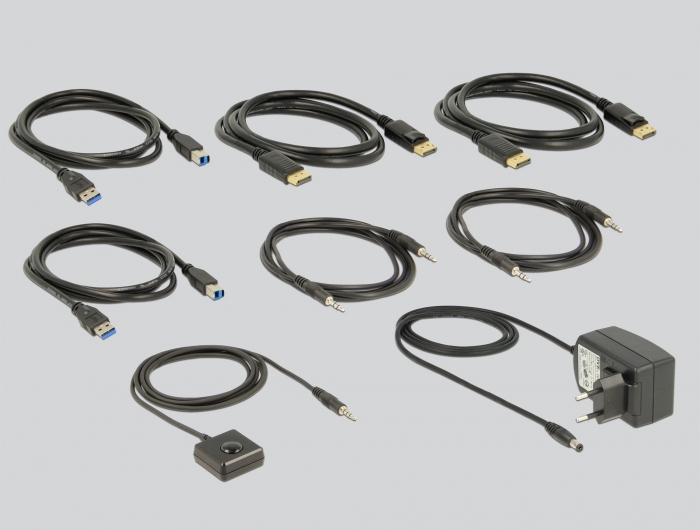

Package content:
• KVM switch with USB and audio
• 2 x cable USB 3.0 A male to USB 3.0 B male, length ca. 1.5 m
• 2 x cable DisplayPort male to DisplayPort male, length ca. 1.5 m
• 2 x cable 3.5 mm stereo jack male to 3.5 mm stereo jack male, length ca. 1.5 m
• 1 x selector with cable, length ca. 1.8 m
• External power supply
• User manual
Data sheet:
http://www.delock.de/produkt/11467/pdf.html?sprache=en
