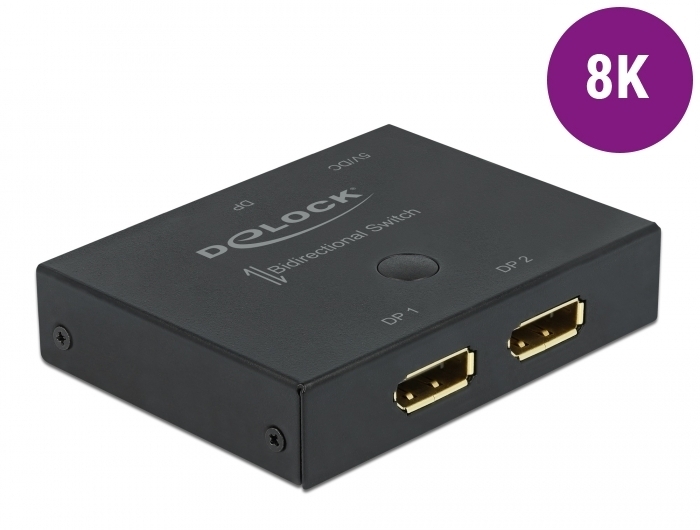

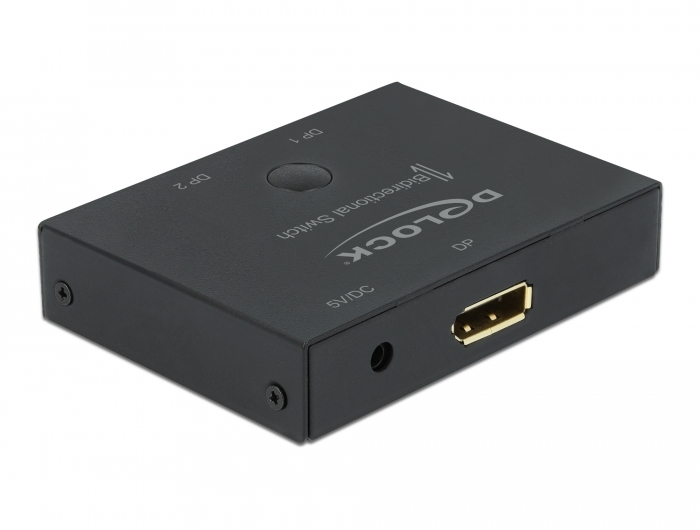

Delock DisplayPort 2 - 1 Switch bidirectional 8K 30 Hz

DELOCK

11478

Jauns

This DisplayPort switch by Delock is a manual bidirectional switch for connecting different devices with DisplayPort port. This switch offers two different applications.
1.
Up to 2 devices can be connected to a monitor, TV or projector. At the push of a button, the device that is displayed on the screen can be selected.
2.
A DisplayPort device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected at the touch of a button. Simultaneous output to multiple screens is not possible.
System requirements:
• A free DisplayPort female
• DisplayPort cable
• Power source with a free USB Type-A port

Specification:
• Connectors:

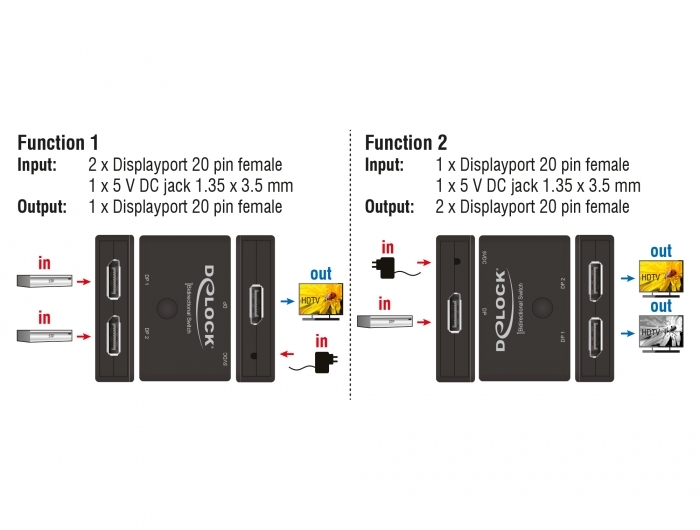

  Function 1
    Input:
      2 x DisplayPort 20 pin female
      1 x 5 V DC jack 1.35 x 3.5 mm
    Output:
      1 x DisplayPort 20 pin female
  Function 2
    Input:
      1 x DisplayPort 20 pin female
      1 x 5 V DC jack 1.35 x 3.5 mm
    Output:
      2 x DisplayPort 20 pin female
• DisplayPort port selection by button
• Resolution up to 7680 x 4320 @ 30 Hz (depending on the system and the connected hardware)
• Robust metal housing
• Colour: black
• Dimensions (LxWxH): ca. 83 x 63 x 18 mm

Package content:
• Switch bidirectional

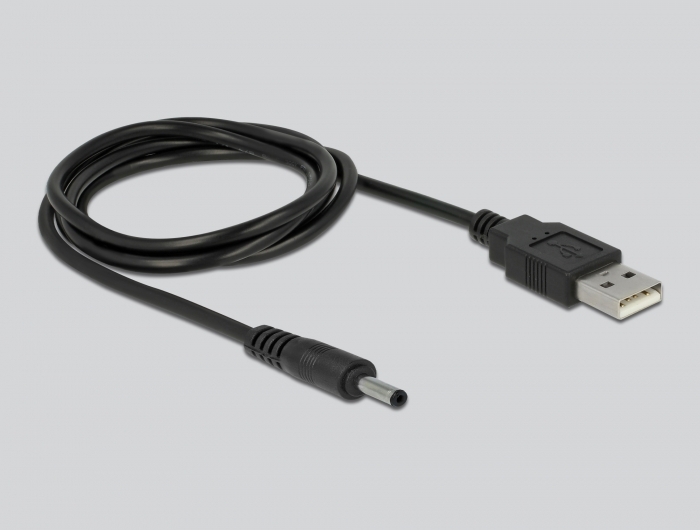

• USB power cable, length: ca. 1 m
• User manual
Data sheet:
http://www.delock.de/produkt/11478/pdf.html?sprache=en
