MANHATTAN TV-Wandhalterung 32"-55" 35kg FullMotion

MANHATTAN

462419

Jauns

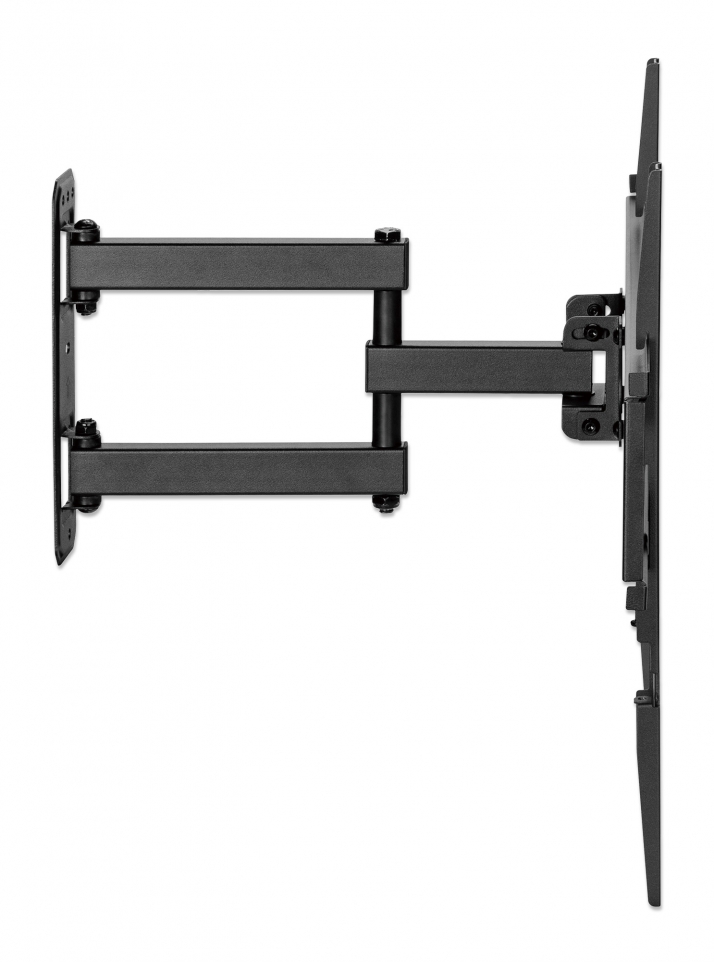

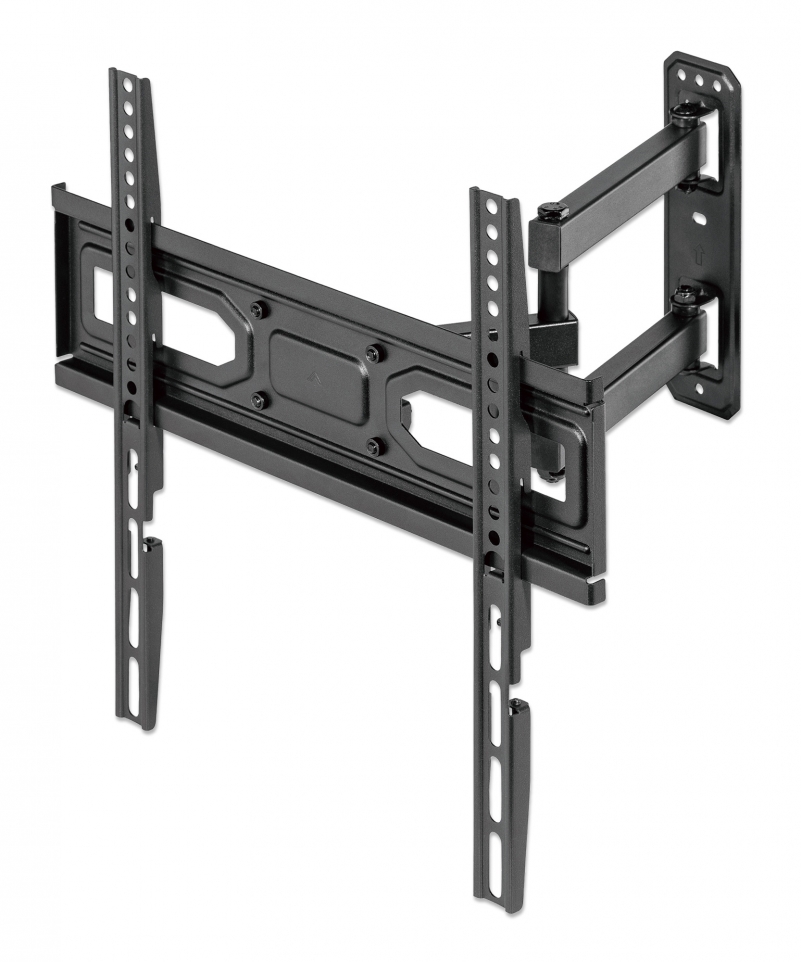

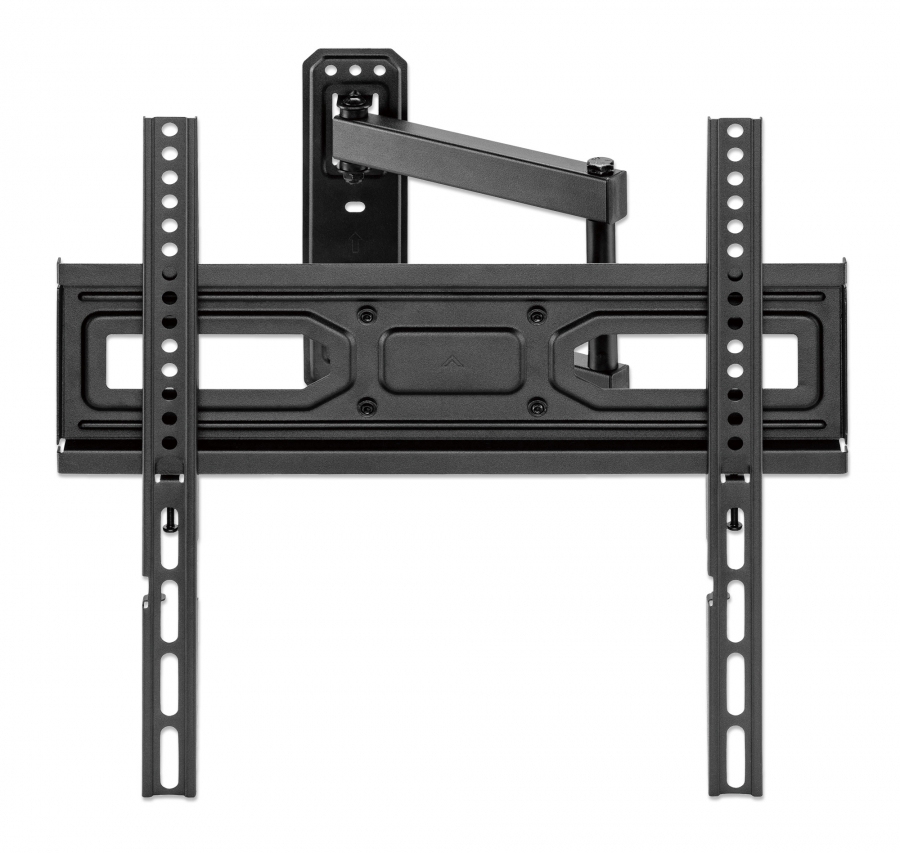

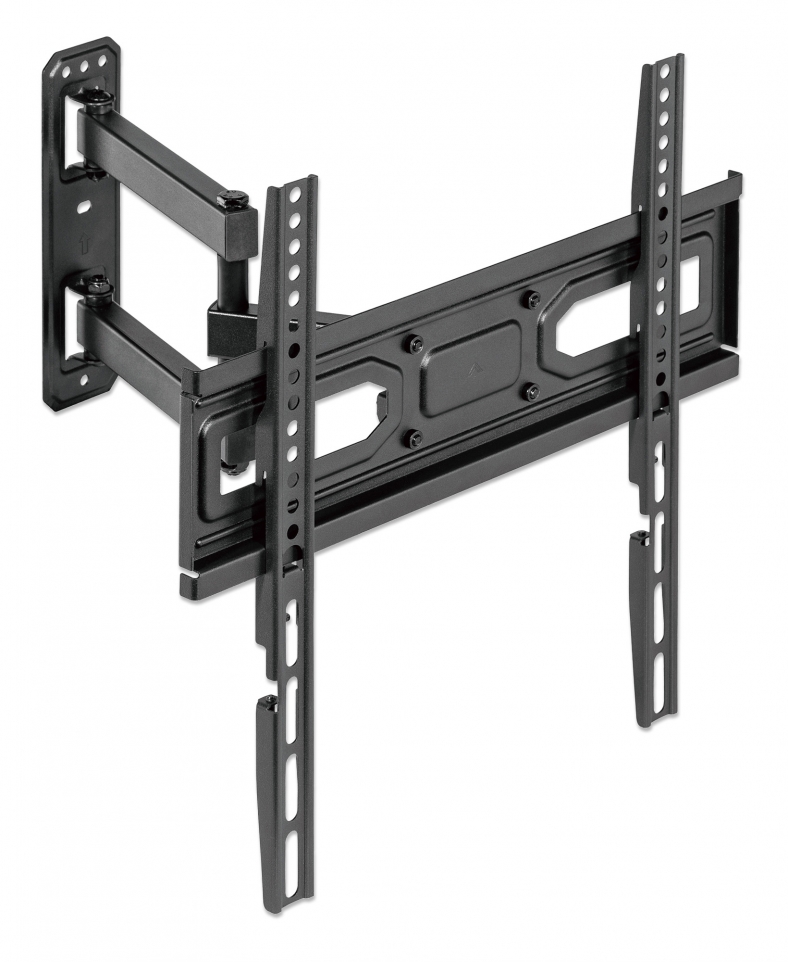

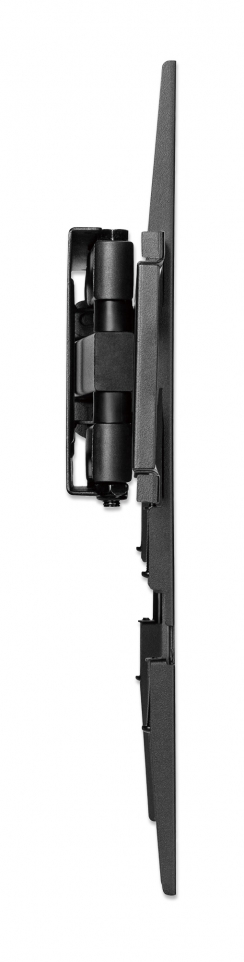

Articulating TV Wall Bracket – fully adjustable mounting bracket to fit almost any space
This strong, Full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and provides optimized views with +3 to -15° tilt and +/-90° swivel adjustment. It fits flat and curved LCD, OLED or plasma TVs up to 55"" and weighing up to 35 kg (77lbs.) with VESA compliance up to 400x400. You're all set for a confident above-the-floor installation with an included bubble level and +/-3° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. This mount is ideal for residential, office, hospitality, classrooms, conference rooms, digital signage and other commercial applications. Wherever you install it, the universal Manhattan Full-Motion TV Wall Mount puts the best TV viewing experience front and center.

Maximum weight capacity35 kg
Maximum screen size139.7 cm (55")
Mounting typeWall
Minimum VESA mount100 x 100 mm
Maximum VESA mount400 x 400 mm
Minimum screen size81.3 cm (32")
Number of displays supported1
Adjustable depth
Tilt adjustment
Tilt angle range-15 - 3°
Swivelling
Swivel angle range-90 - 90°
Built-in spirit level
Distance to the wall (max)35.8 cm
Distance to the wall (min)6.3 cm
Product colourBlack
Housing materialSteel
Quantity per pack1 pc(s)
Manual
Mounting kit
Packaging contentFull-Motion TV Wall Mount with Post-Leveling Adjustment Attachable bubble level Installation hardware with instructions
Width440 mm
Depth (max)35.8 cm
Height420 mm
Weight2.2 kg
Package width445 mm
Package depth62 mm
Package height250 mm
Package weight2.63 kg
Package typeBox
Master (outer) case width520 mm
Master (outer) case length460 mm
Master (outer) case height270 mm
Master (outer) case gross weight22.9 kg
Products per master (outer) case8 pc(s)
