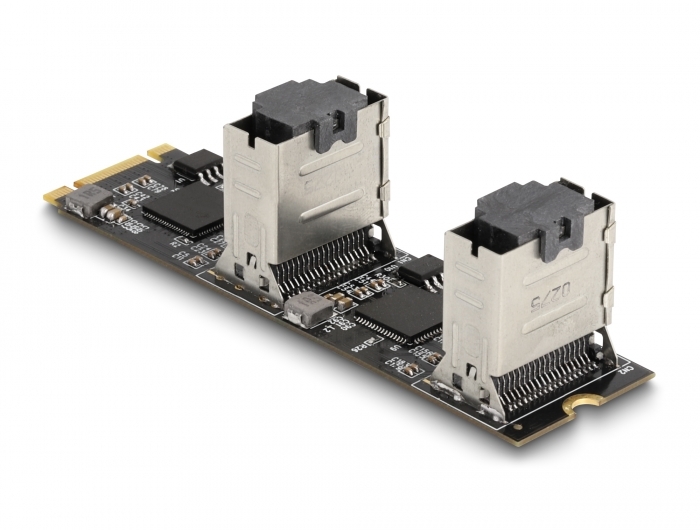

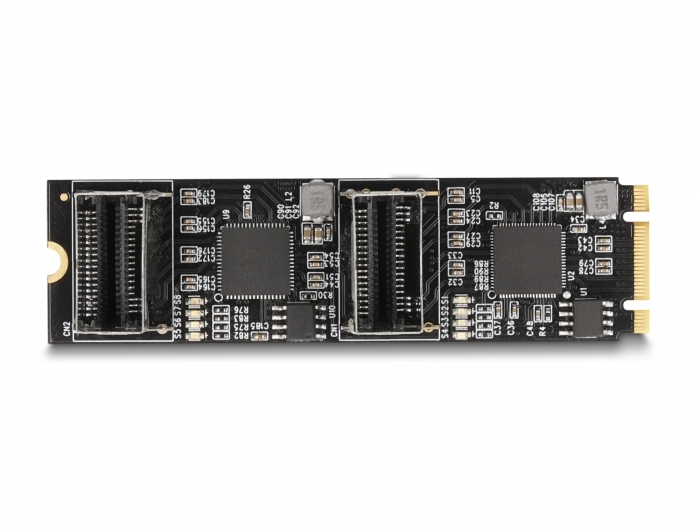

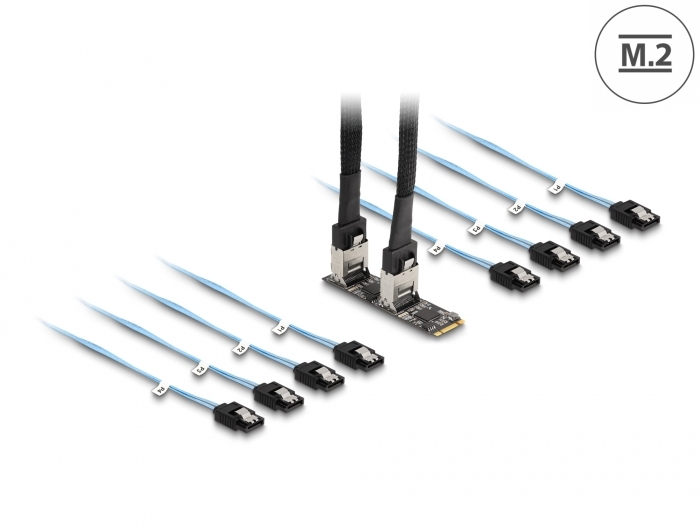

Delock Converter M.2 2280 Key B+M male to 8 x SATA

DELOCK

64211

Jauns

This converter by Delock expands the system by 8 SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the converter.
System requirements:
• Linux Kernel 5.13 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• A free M.2 key M or key B slot
Specification:
• Connectors:
  1 x M.2 key B+M male
  2 x SFF-8087 female
  Connection cables:
  1 x SFF-8087 male
  4 x SATA 6 Gb/s 7 pin receptacle
• Chipset: JMicron JMB585, JMB575
• Interface: PCIe
• Form factor: M.2 2280
• Suitable for M.2 slot with key M or B based on PCIe
• 8 x LED indicator for power and access
• Data transfer rate up to 6 Gb/s
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap
• Bootable (CN1)
• Dimensions (LxWxH): ca. 80 x 22 x 21 mm
Package content:
• Converter

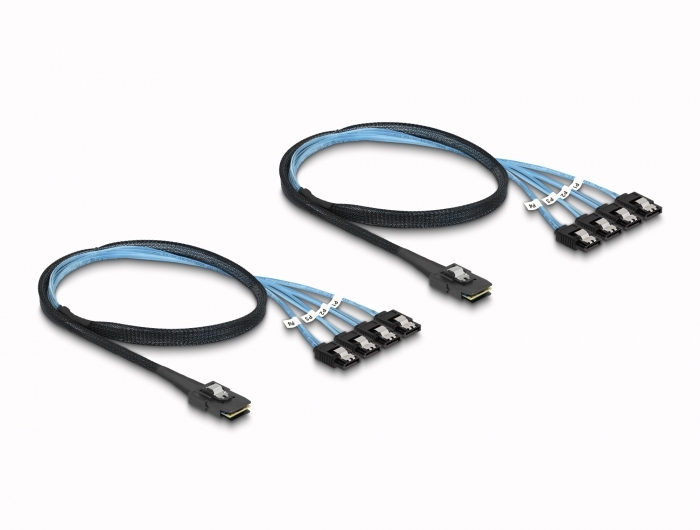

• 2 x Cable SFF-8087 male to 4 x SATA receptacle, length ca. 1 m
• 1 x screw
• User manual
Data sheet:
http://www.delock.de/produkt/64211/pdf.html?sprache=en
