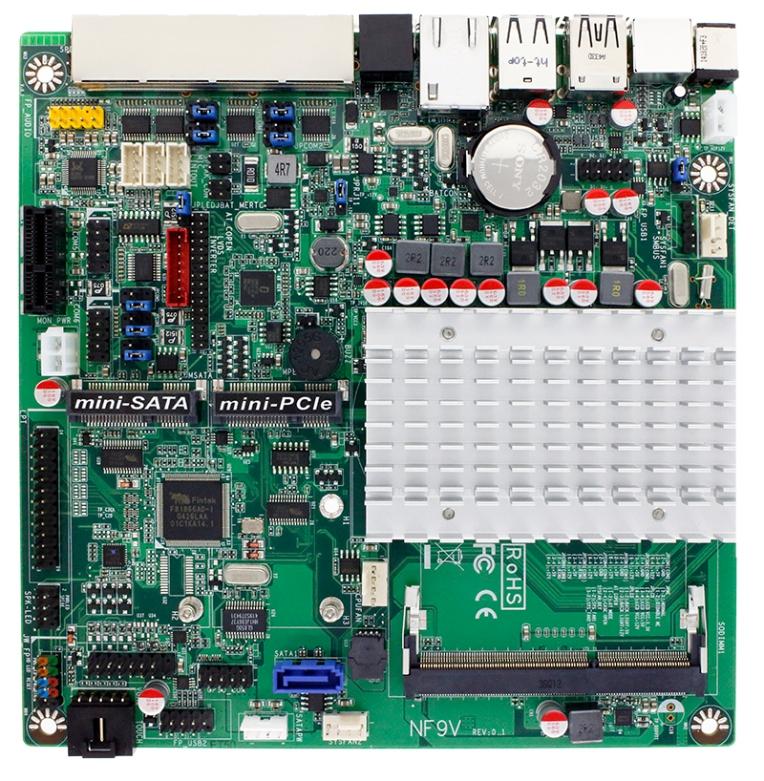

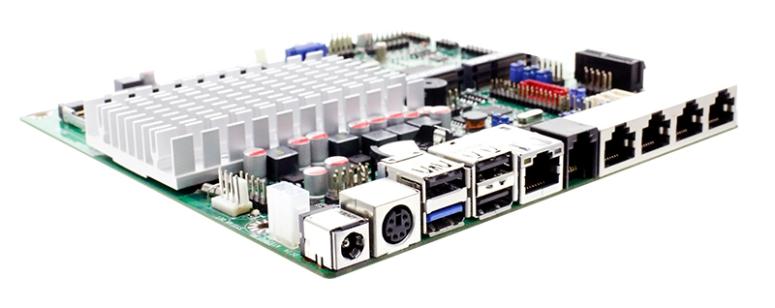

Mainboard Jetway JNF9V-2930 Bay Trail Mini-ITX

Jetway

33142

Jauns

Description:


Specification:
Processor: Intel® Bay Trail-M N2930 1,83 GHz
Supports Hyper-Threading Technology
BIOS: AMI 64Mb Flash ROM
Memory socket: 1 x SO-DIMM Dual/Single Channel DDR3 1333/1066 MHz up to 8GB
Graphics Controller: Intel® Gen7 Intel® Graphics DX 11, OGL3.2
LVDS: Dual Channel 24-bit, max resolution 1920x1200@60Hz
MultiDisplay: (Dual Display)
LAN: Realtek RTL8111G (GigaLAN)

Expansion Slot:
1 x Mini-PCIe
1 x PCIe (x1)

Storage:
1 x mSATA
1 x SATA 3Gb/s

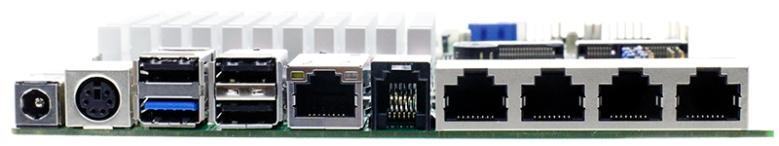

External I/O:
1 x GigaLAN
1 x USB 3.0
3 x USB 2.0
4 x GigaLAN (RJ45)
1 x RJ11
1 x PS2
1 x DC Jack input 12V

Internal I/O:
4 x USB 2.0 via 10pin header
1 x LVDS inverter
1 x LVDS Dual Channel 24-bit, max resolution 1920x1200@60Hz
1 x VGA
2 x Serial (2 x RS-232 with 5V/12V selectable header, 1 x support RS232/422/485)
1 x SATA 3 Gb/s
1 x Parallel
4 x GPIO 8-bit (4in / 4 out)
1 x Chassis intrusion (via 12pin header)
1 x Audio Header: 1 x FP_AUDIO ,1 x 2ch Line Out ,1 x MIC ,1 x 2ch audio w/3W Amp
1 x SMBUS (I2C)

Watchdog Timer:
Output: From Super I/O to drag RESETCON#
Interval: 256 segments, 0,1,2…255sec/min
Power Requirements:
• Power On AT/ATX Supported
• AT : Directly PWR on as Power input ready
• ATX: Press Button to PWR on after Power input ready
Certifications: CE, FCC, RoHS, REACH
Environment:
Operating temperature: 0°C - 60°C
Storage temperature: -20°C - 85°C
Dimensions : Thin Mini-ITX (6.7-in x 6.7-in, 170 x 170mm)

System requirements:


Package content:
1 x Mainboard
1 x SATA cable
2 x Power cable
2 x COM cable
1 x I/O shield
1 x Driver DVD
