ainboard Fujitsu D3410-B Desktop Series Micro ATX

Fujitsu

33176

Jauns

Description:


Specification:
Desktop Series
Designed for 24/7 operation (Continuous operation by 45°C)


Processor socket:
LGA 1151, maximum 65 W TDP
Intel® Core i3/i5/i7 - 6th generation processor series
Future Intel®, Pentium®, Celeron® processor series
Chipset: Intel® B150 Express
Memory socket:
2 x DIMM DDR4 maximum 32 GB, Dual channel, 2133 MHz (CL15),
UDIMM, 1.2V/2.5V, 288pin, Non ECC
Graphics:
Intel® HD Graphics (depends on installed processor) DX12
Audio: Realtek ALC671, 5.1 Channel HD Audio Codec
LAN: Realtek RTL8111G with 10/100/1000 MBit/s

Expansions slots:
1 x PCIe x16 (Gen3)
2 x PCIe x1 (Gen3)

Storage:
4 x SATA 6 Gb/s (NCQ, AHCI)

Internal I/O:
2 x USB 3.0
4 x USB 2.0
1 x Serial (COM2, RS232, FIFO, 16550 compatible)
4 x Fan (CPU, AUX1)
1 x Audio
1 x Power ATX (24pin + 4pin)

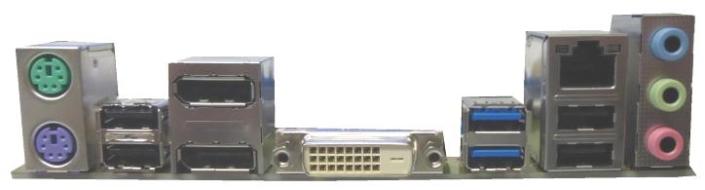

External I/O:
2 x DisplayPort (V1.2)
1 x DVI-D
3 x Audio (Mic-in, Line-in, Line-out)
1 x GigaLAN (RJ45)
2 x PS/2
2 x USB 3.0
4 x USB 2.0
1 x Serial (COM1, RS232, FIFO, 16550 compatible)

System requirements:


Package content:
Mainboard
I/O Shield
Driver DVD
