Neomounts by Newstar TIS 17"-27" 2TFT 2Gelenke schw. Max.8KG

NEOMOUNTS BY NEWSTAR

DS75S-950BL2

Jauns

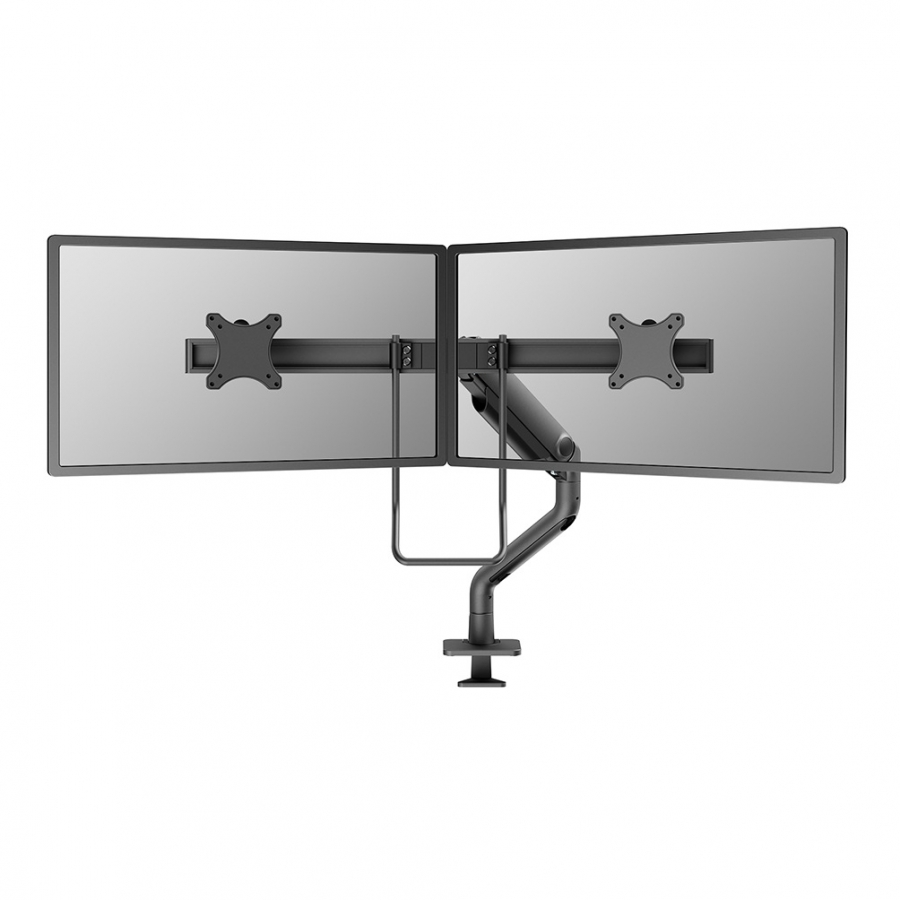

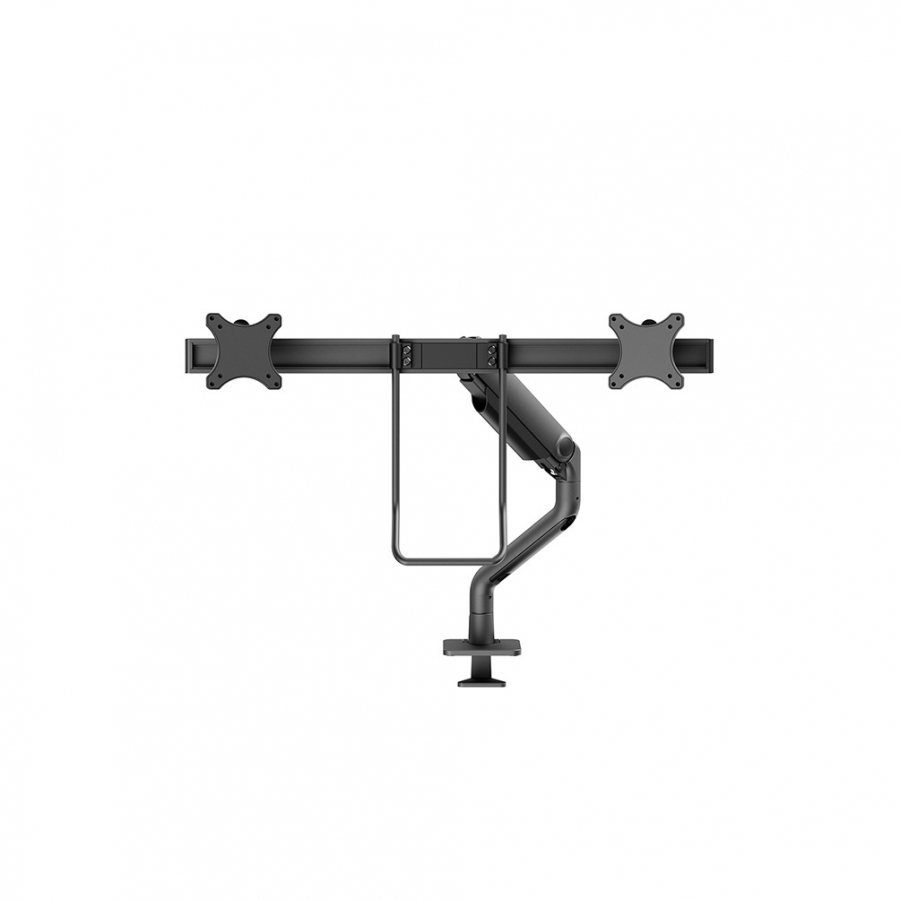

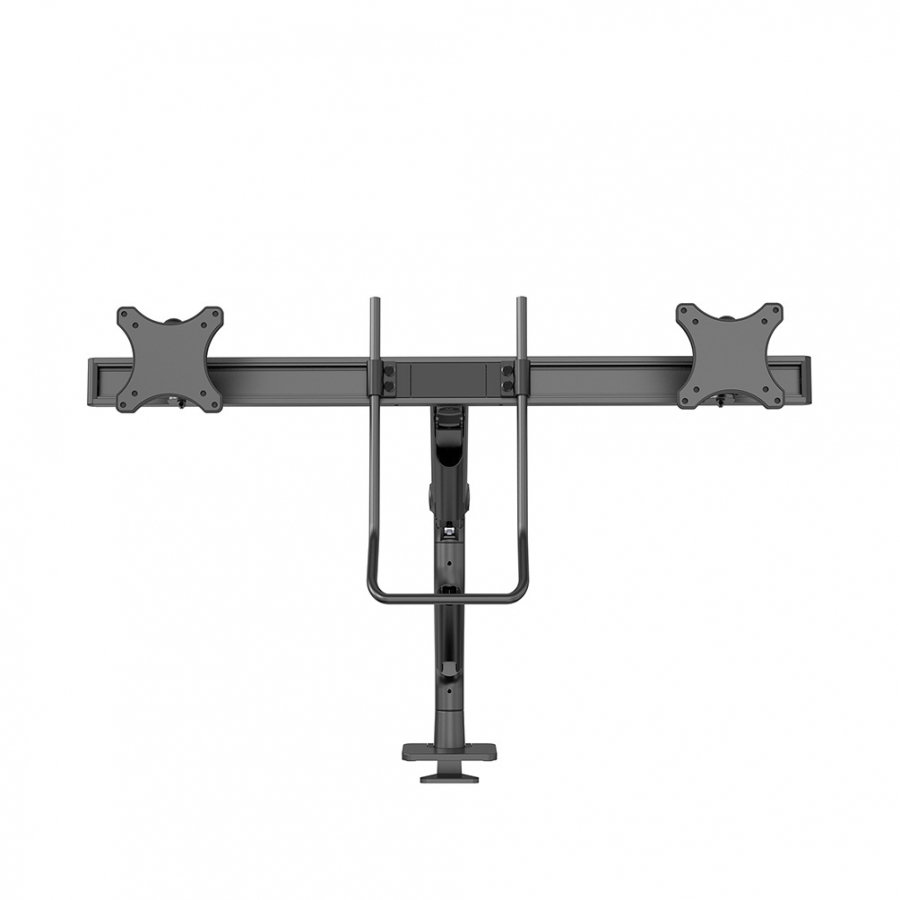

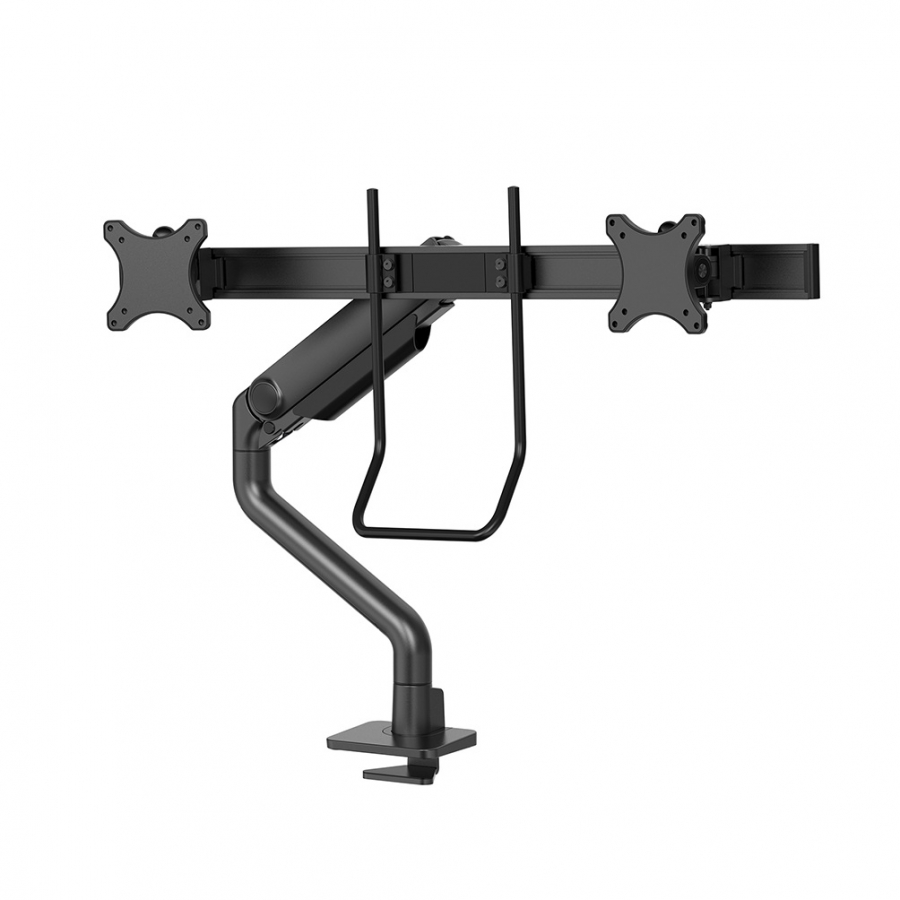

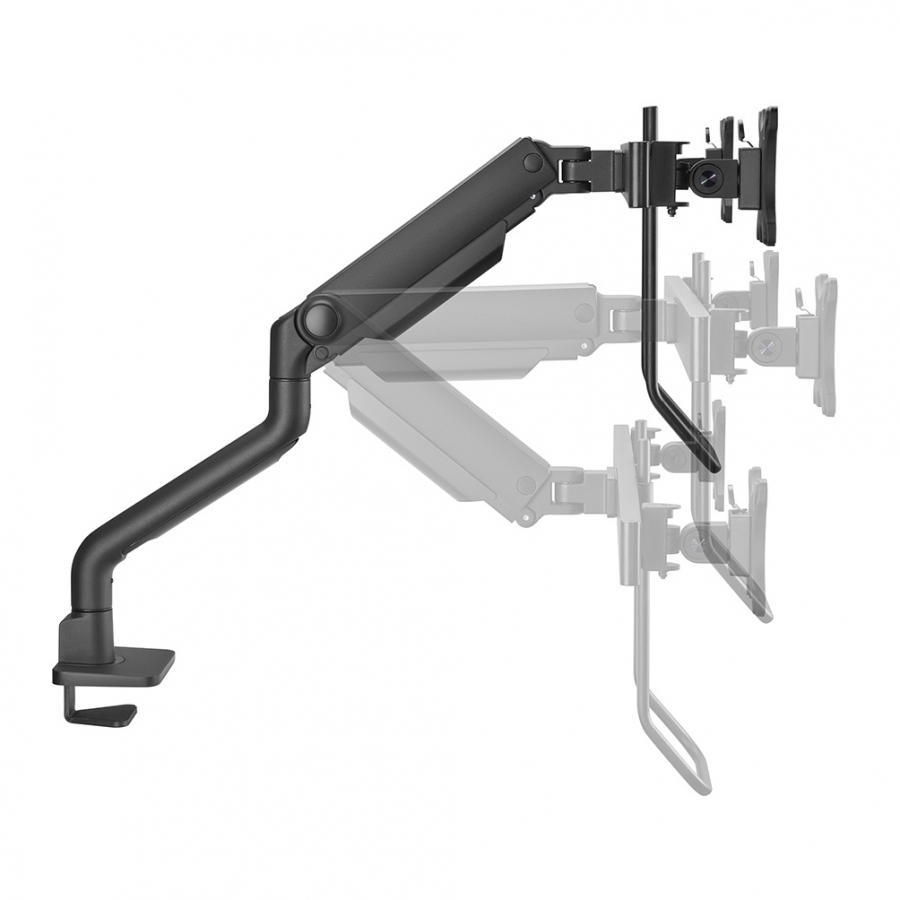

The Neomounts DS75S-950BL2 NEXT One is a full motion desk mount for two screens up to 27" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (19,1-52,7 cm) and depth adjustment (17,3-71 cm), to create the perfect working position. The displays can be individually adjusted in height, to guarantee perfect screen alignment. Additionally, due to the flexibility of the VESA heads, the screens can be positioned in large cockpit setup. The handle is height adjustable for maximum comfort.

The DS75S-950BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

The black VESA plates and crossbar of the NEXT One integrate stylishly with the black back of your screens. The DS75S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The packaging of the DS75S-950BL2 desk mount is 100% plastic free and entirely made from cardboard and paper.The NEXT One products have an extended warranty period of 10-years.

Maximum weight capacity8 kg
Maximum screen size68.6 cm (27")
Mounting typeDesk
Minimum screen size43.2 cm (17")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Number of displays supported2
MountingClamp/Grommet
Panel mounting interface75 x 75,100 x 100 mm
Clamp mount desk thickness (max)5 cm
Grommet mount desk thickness (max)5.5 cm
Distance to the wall (min)20.4 cm
Distance to the wall (max)74.1 cm
Height adjustmentJā
Height adjustment typeGas spring
Height adjustment range19.1 - 52.7 mm
Adjustable depthJā
Depth adjustment range17.3 - 71 mm
Tilt angle range-60 - 60°
SwivellingJā
Swivel angle range-90 - 90°
Angle of rotation180°
Cable managementJā
RotatingJā
Tilt adjustmentJā
Product colourBlack
Housing materialAluminium
Easy to installJā
Warranty period10 year(s)
Width833 mm
Depth739 mm
Height586 mm
Package width222 mm
Package depth120 mm
Package height887 mm
Package typeBox
Master (outer) case width240 mm
Master (outer) case length260 mm
Master (outer) case height905 mm
Products per master (outer) case2 pc(s)
Master (outer) case net weight11.1 kg
Harmonized System (HS) codeHS7326909890
Products per pallet (EU)36 pc(s)
Country of originChina
Package net weight7.1 kg
